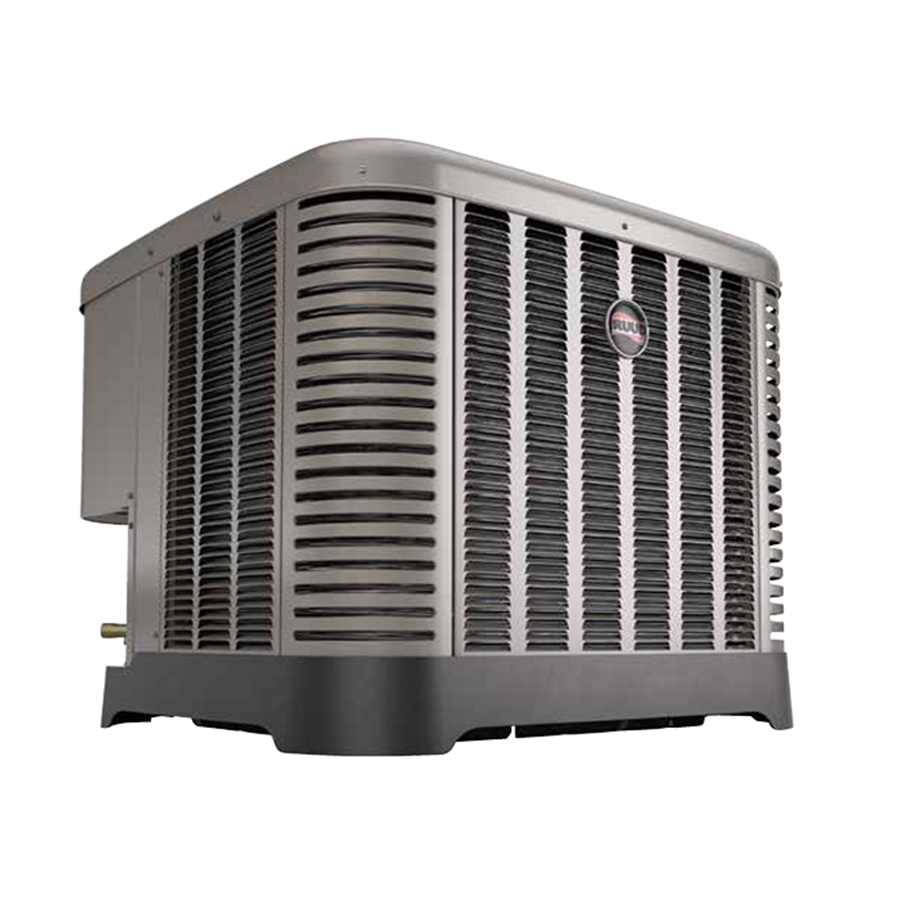

Ruud RA13NY36AJ1NALHP Condensing Unit 3 Ton R454B 13 SEER2

Product Description

The RUUD RA13NY36AJ1NALHP is a 3-ton residential split-system condensing unit rated at 36,000 BTU/h cooling capacity and 13 SEER2 efficiency. Part of the RUUD M1 series, this unit operates on R454B refrigerant, a lower-GWP alternative now required under current EPA regulations. The condensing unit houses the compressor, condenser coil, and condenser fan, and connects to a matched indoor evaporator coil and air handler to form a complete split cooling system. HVAC technicians install and commission this equipment in new construction and retrofit residential applications.

This condensing unit is suited for residential single-family and light-duty applications where a 3-ton cooling load is appropriate. The M1 series targets entry-level efficiency requirements aligned with current federal minimum SEER2 standards. Typical installations pair this outdoor unit with a compatible indoor coil and furnace or air handler. The unit is designed for standard low-voltage thermostat control wiring and conventional refrigerant line-set connections.

Key Features

• 36,000 BTU/h nominal cooling capacity (3 tons)
• 13 SEER2 efficiency rating meets current federal minimum standards
• R454B refrigerant — lower global warming potential alternative to R-410A
• M1 series platform designed for residential split-system installations
• Outdoor condensing unit configuration houses compressor and condenser coil

Compatibility

Designed as an OEM residential split-system outdoor condensing unit intended for pairing with a compatible matched indoor evaporator coil and air handler or furnace in a standard ducted cooling system.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification, as this unit uses R454B refrigerant classified as mildly flammable (A2L). Disconnect and lock out all electrical power before any service work on the unit. Refer to local mechanical codes and the manufacturer installation instructions for proper line-set sizing, refrigerant charge procedures, and clearance requirements. Do not use R-410A tooling or equipment that has not been verified compatible with A2L refrigerants.

Technical Specifications

• Cooling Capacity: 36,000 BTU/h
• Nominal Tonnage: 3 tons
• Refrigerant: R454B
• Efficiency Rating: 13 SEER2
• Series: M1

Standard Information

• Brand: RUUD
• Manufacturer Part Number: RA13NY36AJ1NALHP
