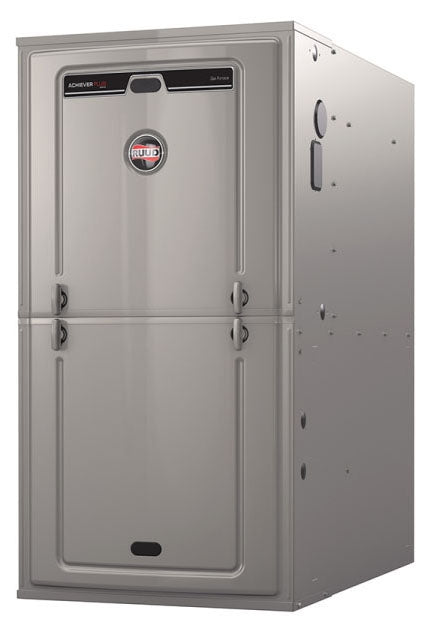

Ruud R96TA0702521MSA 96% 4Way 70k In 2Stg Heat Speeds 1 Stg Cooling Con Torque Gas Furnace 5T

Product Description

The Ruud R96TA0702521MSA is a 2-Stage, Upflow, 4-Way, Standard, 2-Position gas furnace. It features a capacity of 1351 CFM (Heating) and 1750 CFM (Cooling). The unit operates on 115 Volt AC 60 Hertz 1-Phase and has a 70000 Btu per Hour. It is designed for residential applications and meets CSA, AHRI, and ISO 9001 standards.

• Features primary and secondary heat exchanger, draft inducer, and in-shot burner.
• Equipped with direct spark ignition, remote sensor, and pressure switch.
• Includes control board, blocked drain sensor, and solid bottom.

Product Highlights

This Ruud gas furnace offers a 96 percent AFUE rating and is suitable for natural or liquid propane gas. It has a constant torque motor and a vent made of PVC.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: R96TA0702521MSA

Technical Specifications

• Btu Per Hour: 70000
• Capacity: 1351 CFM (Heating), 1750 CFM (Cooling)
• Control Type: 115 Volt AC 60 Hertz 1-Phase
• Gas Inlet Size: 1/2 Inch Threaded
• Vent Size: 2 or 3 Inch Diameter
• Inclusion Features: Primary and Secondary Heat Exchanger, Draft Inducer, In-Shot Burner, Direct Spark Ignition and Remote Sensor, Pressure Switch, Control Board, Blocked Drain Sensor, Solid Bottom
• Fuel Type: Natural/Liquid Propane Gas
• Airflow Capacity: 5 Ton
• AFUE Rating: 96 Percent
• Minimum Circuit Current Rating: 12 Amp
• Motor Power Rating: 1 HP
• Motor Full Load Current Rating: 10.6 Amp
• Motor Type: Constant Torque
• Vent Material: PVC
• Rising Temperature Rating: 30 to 60 Deg F
• Application: Residential
• Applicable Standard: CSA, AHRI, ISO 9001
• Type: 2-Stage, Upflow, 4-Way, Standard, 2-Position
• Efficiency (AFUE): 96.0
• Can Integrate Hot Water Heating: No
• ENERGY STAR Certified: Yes
