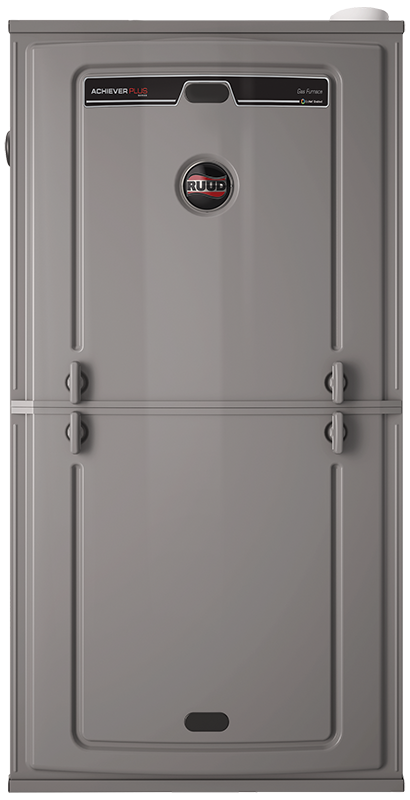

Ruud R962V1155A24M4SCAP Gas Furnace 112000 BTU/hr

Product Description

The Ruud R962V1155A24M4SCAP gas furnace is designed for efficient heating in residential settings. This Classic Plus model provides an input BTU rating of one hundred twelve thousand and an output BTU rating of one hundred nine thousand. It operates on one hundred fifteen volts and achieves a ninety-six percent AFUE rating.

• ENERGY STAR certified with high efficiency ratings
• Includes EcoNet and Bluetooth technology for monitoring
• Features a reliable direct spark ignition system

Product Highlights

This furnace is suitable for multi-position airflow and is designed for ease of installation and operation.

Product Information

Standard Information

• Series: R962V
• Model: Classic Plus

Technical Specifications

• Input BTU Rating: 112000 BTU/hr
• Output BTU Rating: 109000 BTU/hr
• Voltage: 115 V
• Amperage: 12 A
• CFM Rating: 1700 cfm
• Horsepower: 1 hp
• AFUE: 96 %
• Stages: 2 Stage
• Configuration: 4-Way Multi-Position
• Motor: ECM Motor
• Gas Connection: 1/2 in
• Height: 34 in
• Width: 24 in
• Depth: 29.63 in
• Weight: 165 pounds
• Temperature Rise: 45 to 75 °F
