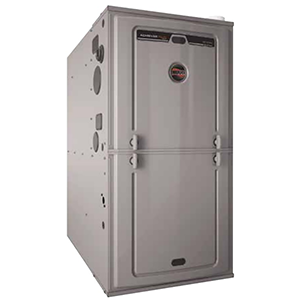

Ruud R962V0403A17M4SCAP 96% Gas Furn 40K 3T 2STG Constant CFM

Product Description

The Ruud R962V0403A17M4SCAP is a gas furnace designed with a 96% AFUE rating. It has a capacity of forty thousand BTUH and is configured for multi-position installation. The furnace features a constant CFM motor, offering efficient operation and comfort throughout your space.

• 96% AFUE for energy efficiency
• EcoNet and Bluetooth technology for easy monitoring
• Designed for quiet operation with humidity control

Product Highlights

This furnace provides reliable heating with advanced features aimed at enhancing comfort and efficiency.

Product Information

Standard Information

• Brand: Ruud
• MPN: R962V0403A17M4SCAP

Technical Specifications

• AFUE: 96%
• Capacity BTUH: 40,000
• Configuration: Multi-Position
• EcoNet Enabled: Yes
• Efficiency: High
• Motor Type: Constant CFM 2 Stage
• Nominal Size: 3 Ton
• Width: 17.5 inches
• Depth: 28 inches
• Height: 34 inches
• Fuel Type: Natural Gas
• Unit Weight: 128 pounds
• Input BTU Rating: 42,000 Btu/hr
• Output BTU Rating: 41,000 Btu/hr
• Voltage: 115 V
• Amperage: 8 A
• CFM Rating: 1150 cfm
• Horsepower: 1/2 hp
• Phase: 1 ph
• Frequency: 60 Hz
• Stages: 2 Stage
• Fuse Size: 15 A
• Tonnage: 3 ton
• Ignition Type: PlusOne Ignition, Direct Spark
• Temperature Rise: 20 to 50 deg F
