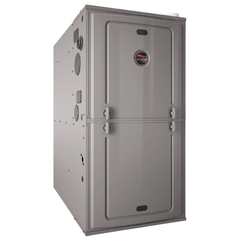

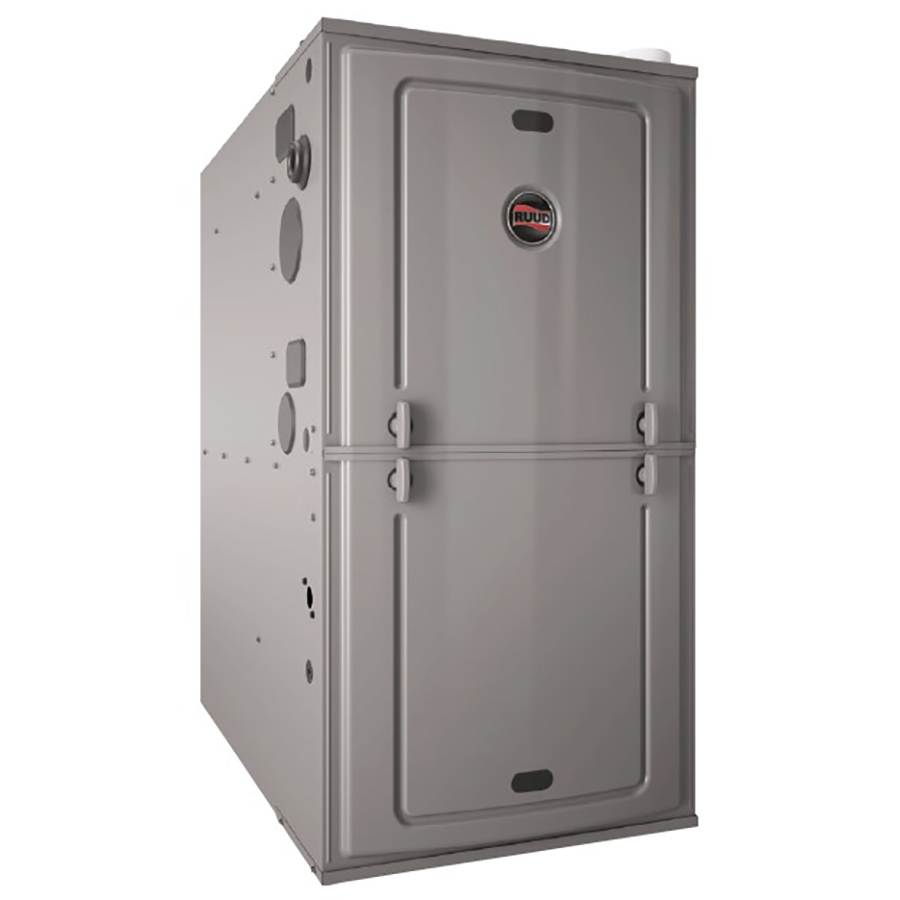

Ruud R951V0855A21M4SCAP Gas Furnace 85000 Btu 95% Afue

Product Description

The RUUD R951V0855A21M4SCAP is a single-stage, multi-position residential gas furnace rated at 85,000 BTU/h with 95% AFUE efficiency. It uses a variable speed ECM blower motor to deliver consistent airflow, tighter humidity control, and quieter operation compared to fixed-speed units. The furnace ships with EcoNet Bluetooth connectivity built in, allowing licensed HVAC technicians to commission, monitor, and troubleshoot the unit directly from the Ruud Contractor App without configuring DIP switches. Direct Spark Ignition (DSI) handles ignition duties, and a patented block drain sensor automatically shuts down the unit and triggers a diagnostic code when the condensate drain is obstructed.

This furnace is designed for residential installations where a high-efficiency, multi-position unit is required. Multi-position capability allows installation in upflow, downflow, or horizontal orientations, making it adaptable to attic, closet, basement, and crawlspace applications. The 21-inch cabinet width fits standard air handler closet openings. The unit is rated for natural gas fuel and is sized for up to 5 nominal tons of matched cooling capacity, making it suitable for whole-home systems paired with a compatible cooling coil and condensing unit.

Key Features

• 95% AFUE rating — ENERGY STAR certified across all model sizes in the series
• Variable speed ECM blower motor for precise airflow, reduced sound levels, and year-round energy savings
• Built-in EcoNet Bluetooth technology enables app-based commissioning without DIP switch configuration
• Direct Spark Ignition (DSI) system for consistent, reliable ignition
• Patented block drain sensor shuts off the furnace automatically and alerts the technician via diagnostic code when drainage is blocked
• Fully insulated blower cabinet and solid bottom panel reduce operating noise

Compatibility

Designed as an OEM-style multi-position residential gas furnace replacement and new-installation unit within the Ruud Endeavor Line Achiever Series R951V product family. Compatible with EcoNet Smart Thermostat systems and the Ruud Contractor EcoNet App for Bluetooth-based commissioning and monitoring.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Shut off gas supply and disconnect electrical power before servicing or replacing any components. Multi-position orientation must be set correctly for the chosen install direction prior to startup. Condensate drain routing and the block drain sensor function should be verified as part of commissioning using the Ruud Contractor App.

Technical Specifications

• Fuel Type: Natural Gas
• Heating Capacity: 85,000 BTU/h
• AFUE Efficiency: 95%
• Stage: Single Stage
• Motor Type: ECM Variable Speed
• Nominal Cooling Tons: 5 tons
• Configuration: Multi-Position
• Cabinet Width: 21 inches
• EcoNet Enabled: Yes
• Bluetooth Connectivity: Yes
• Series: M1

Standard Information

• Brand: RUUD
• Manufacturer Part Number: R951V0855A21M4SCAP
