Ruud R951T1155A24M4SNAS Gas Furnace 115000 BTU 3 Ton

Product Description

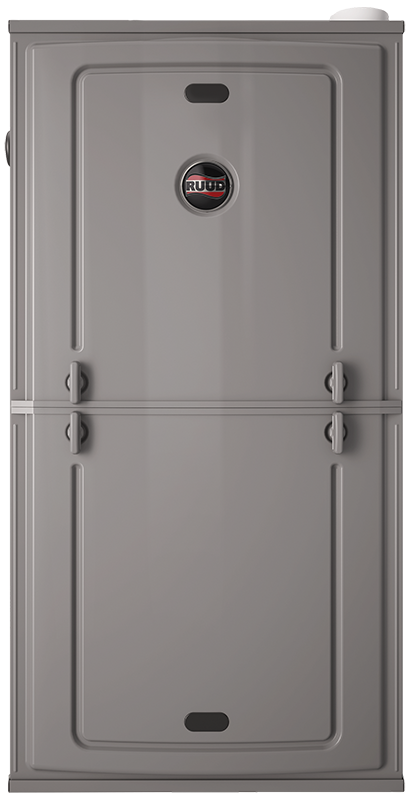

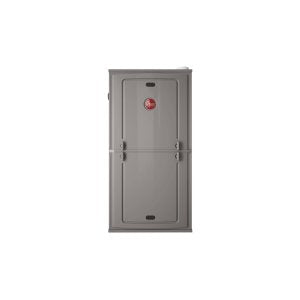

The Ruud R951T1155A24M4SNAS is a gas furnace with a capacity of 115000 BTU and a nominal size of three tons. This unit belongs to the Achiever series and includes a constant torque single-stage motor, suitable for various configurations. The furnace operates at 115 volts and has an annual fuel utilization efficiency (AFUE) rating of 95 percent.

• ENERGY STAR certified with 95 percent AFUE across all model sizes
• Features a seven-segment LED for easy service and diagnostics
• Direct spark ignition for reliable operation and longevity

Product Highlights

Product Information

Standard Information

• Brand: Ruud
• MPN: R951T1155A24M4SNAS

Technical Specifications

• Capacity BTUH: 115000
• Configuration: Multi-Position
• Efficiency: 95%
• Motor Type: Constant Torque Single Stage
• Nominal Size: 3 Ton
• Input BTU Rating: 112000 Btu/hr
• Output BTU Rating: 106400 Btu/hr
• Voltage: 115 V
• Amperage: 17 A
• CFM Rating: 1575 cfm
• Horsepower: 1 hp
• Phase: 1 ph
• Frequency: 60 Hz
• Stages: 1 Stage
• Ignition: Direct Spark Ignition
• Type: Gas
• Heating Capacity: 33.7 kW
• Item Width: 27.5 in
• Item Length: 32.75 in
• Item Height: 35 in
• Manufacturer: Rheem Manufacturing
• Sustainable: Yes
