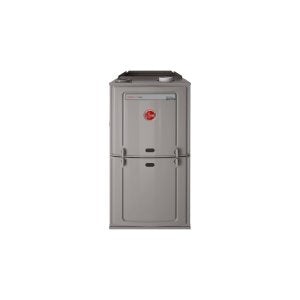

Ruud R802V1505A24UHSCAP Endeavor Classic Series Gas Furnace 115 V 5 ton

Product Description

The Ruud R802V1505A24UHSCAP Endeavor Classic Series Gas Furnace is designed for efficient heating in residential spaces. It has a BTU input rating of one hundred fifty thousand and an output rating of one hundred twenty thousand. This model operates on one hundred fifteen volts and features a variable speed ECM motor for optimized performance. The unit is capable of handling airflow between thirteen hundred to sixteen eighty cubic feet per minute, ensuring effective heat distribution.

• EcoNet technology for remote monitoring
• Direct Spark Ignition (DSI) for consistent starting
• Two-stage operation for enhanced comfort

Product Highlights

Product Information

Standard Information

• Brand: Ruud
• Model Number: R802V1505A24UHSCAP

Technical Specifications

• Input BTU Rating: 150000 Btu/hr
• Output BTU Rating: 120000 Btu/hr
• Voltage: 115 V
• Amperage: 16 A
• CFM Rating: 1300 to 1680 cfm
• Horsepower: 1 hp
• AFUE: 0.8 %
• Phase: 1 ph
• Frequency: 60 Hz
• Configuration: Horizontal Upflow
• Fuel Type: Natural Gas or Propane
• Cabinet Dimensions: 34 in H x 24.5 in W x 29.59 in D
• Ignition Type: Direct Spark Ignition
• Temperature Rise: 45 to 75 deg F
• Efficiency: 80 %
• Gas Connection: NPT, 1/2 in
• Number of Filters: 2
• Weight: 160 lbs
• Dimensions: 34 in H x 24.5 in W x 29.59 in D
