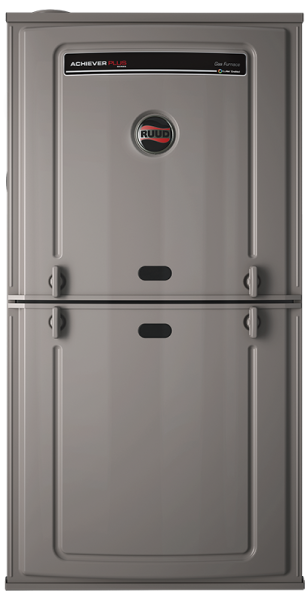

Ruud R802V1005A21UHSCAP Endeavor Classic Plus Gas Furnace 100000 BTU / 5 ton

Product Description

The Ruud R802V1005A21UHSCAP Endeavor Classic Plus Gas Furnace operates at an input of one hundred thousand BTU per hour and has an output of eighty thousand BTU per hour. This gas furnace features a two-stage operation and a variable speed motor which provides efficient heating. It is EcoNet enabled, allowing seamless integration into smart home systems.

• EcoNet technology for easy monitoring and troubleshooting
• Reliable PlusOne ignition system with direct spark ignition
• Constant CFM motor for efficiency and humidity control

Product Highlights

The Ruud R802V1005A21UHSCAP is designed for both upflow and horizontal configurations. It works effectively in both ducted and ductless systems.

Product Information

Standard Information

• Series: R802V
• Application: Gas Furnace 2-Stage

Technical Specifications

• BTU/HR: 100000
• Heating Capacity BTU/HR: 80000
• Tonnage: 5
• Heating Speed/Cooling Speed: Variable
• Motor H.P-Type: 3/4-VS-CT(ECM)
• Min. Circuit Ampacity: 13
• Min. Overload Protection Device: 15
• Max. Overload Protection Device: 20
• Stages of Operation: 2-Stage
• Configuration: Upflow/Horizontal
• Temperature Rise Range (°F): 35-65
• Communication: EcoNet Enabled
• AFUE: 80.00%
• Cabinet WxDxH (in): 21 x 28.1 x 34
• Supply Air (Nominal Inch): 20 x 20
• Return Air (Nominal Inch): 19 x 23.5
