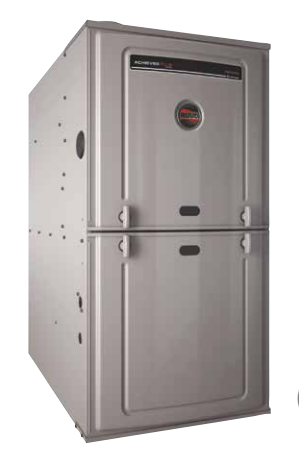

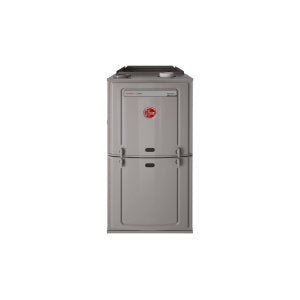

Ruud R802V1004A17UHSCAP Endeavor Classic Series Gas Furnace 115 V 1150 to 1375 cfm 3/4 hp

Product Description

The Ruud R802V1004A17UHSCAP Endeavor Classic Series Gas Furnace is designed for efficiency and performance. It features a heat input of 100,000 BTU/hr and an output of 80,000 BTU/hr. This gas furnace operates at 115 V and delivers airflow between 1150 to 1375 CFM. Equipped with a 3/4 horsepower variable speed ECM motor, it ensures quiet operation and optimal efficiency throughout the year.

• EcoNet enabled for easy monitoring with Bluetooth technology
• Direct Spark Ignition system for reliability
• Variable speed motor for enhanced humidity control

Product Highlights

This gas furnace provides a 0.8% AFUE rating and a tonnage capacity of 4 tons, making it suitable for various residential applications.

Product Information

Standard Information

• Brand: Ruud
• MPN: R802V1004A17UHSCAP

Technical Specifications

• Amperage Rating: 16 A
• Blower Size: 11 in D x 7 in W
• Cabinet Dimensions: 34 in H x 17.5 in W x 29.59 in D
• Frequency Rating: 60 Hz
• Ignition Type: Direct Spark
• Motor Type: Variable Speed ECM
• Number of Stages: 2
• Output BTU Rating: 80,000 Btu/hr
• Input BTU Rating: 100,000 Btu/hr
• Voltage Rating: 115 V
• CFM Rating: 1150 to 1375 cfm
• HP Rating: 3/4 hp
• AFUE Rating: 80 %
• Configuration: Horizontal Upflow
• Air Flow Type: Upflow/Horizontal
• Gas Connection Size: 1/2 in
