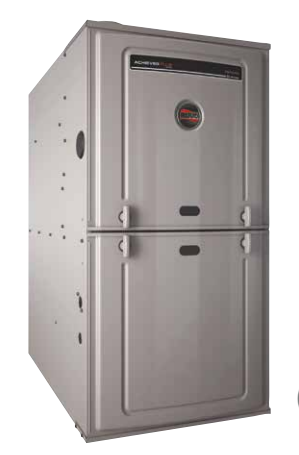

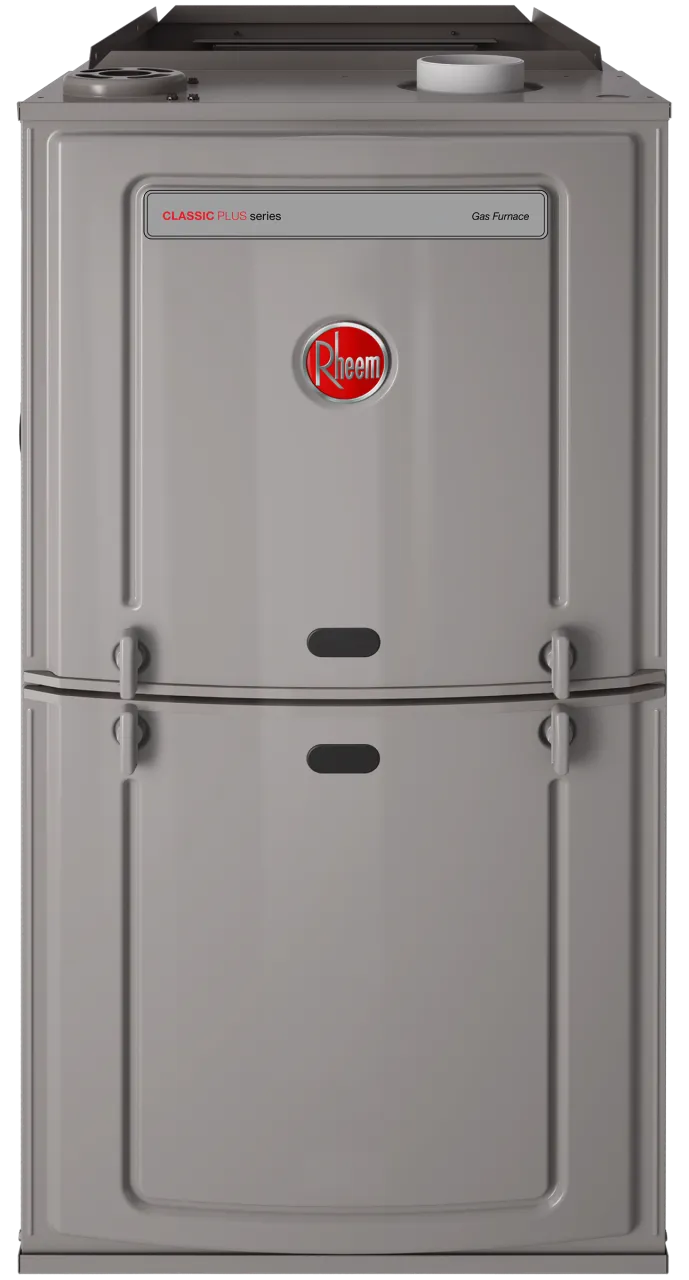

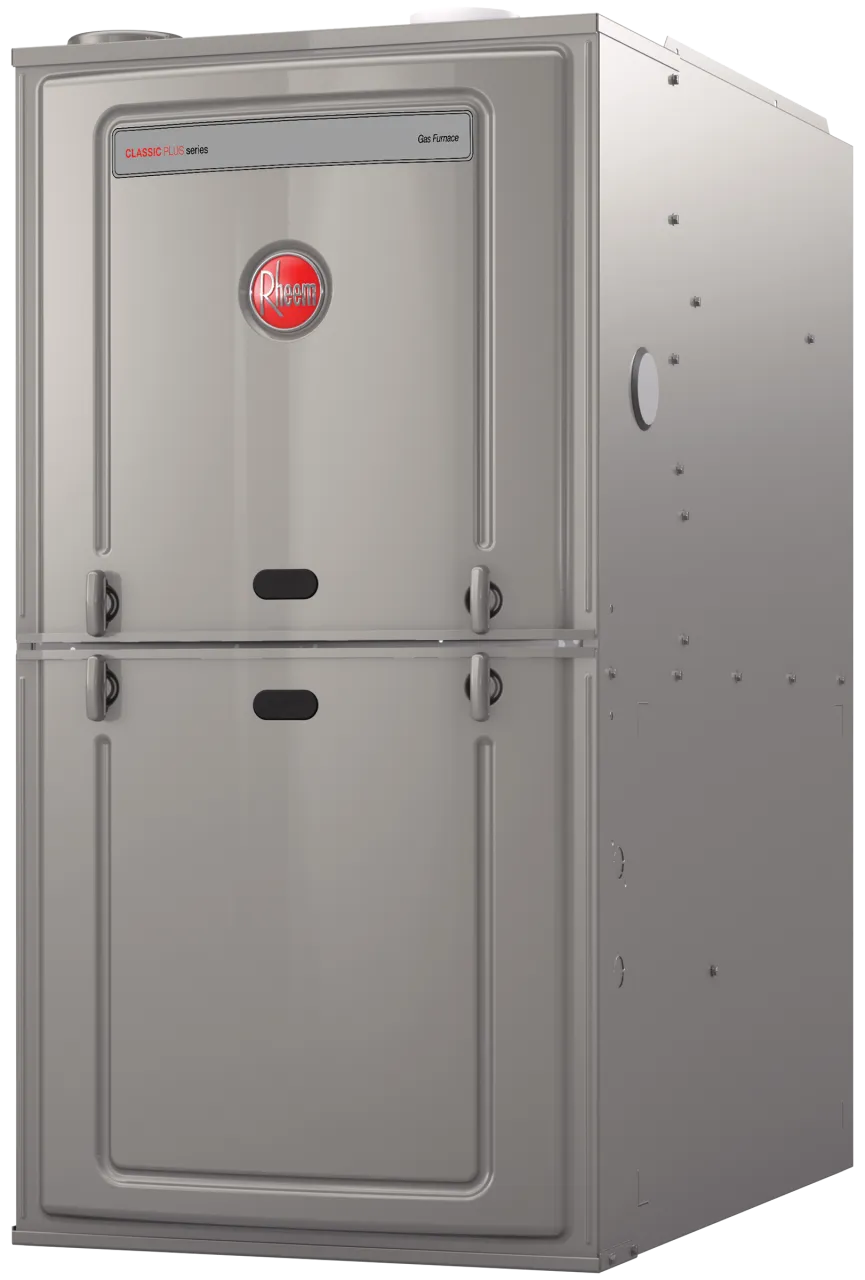

Ruud R802V0754A17UHSCAP Endeavor Classic Plus Line Gas Furnace 75000 BTU/hr

Product Description

The Ruud R802V0754A17UHSCAP Endeavor Classic Plus Line Gas Furnace is designed for efficient heating. It has a maximum input BTU rating of seventy-five thousand and an output BTU rating of sixty thousand. This furnace operates at one hundred fifteen volts and can deliver a CFM of fifteen hundred. The motor is a three-quarter horsepower unit, and the unit achieves an annual fuel utilization efficiency (AFUE) of eighty percent.

• Built-in EcoNet and Bluetooth technology for monitoring and diagnostics
• Dip switch-free installation is easy with Bluetooth
• Two-stage heating for consistent temperature control

Product Highlights

This furnace’s two-stage heating provides stable heat distribution, promoting comfort throughout your home. Built-in EcoNet technology allows for easy monitoring, and Bluetooth capabilities simplify installation.

Product Information

Standard Information

• Brand: Ruud
• MPN: R802V0754A17UHSCAP

Technical Specifications

• Amperage Rating: 13 A
• Cabinet Dimensions: 34 inches H x 17.5 inches W
• Frequency Rating: 60 Hz
• Fuse Rating: 20 A
• Ignition System: PlusOne
• Ignition Type: Direct Spark
• Motor Type: ECM Variable Speed
• Number of Stages: 2
• Output BTU Rating: 60000 BTU/hr
• Phase: 1
• Temperature Rise: 25 to 55 degrees F
• Vent Size: 6 inches
• Input BTU Rating: 75000 BTU/hr
• Voltage Rating: 115 V
• CFM Rating: 1450 cfm
• HP Rating: 3/4 hp
• AFUE Rating: 80%
• Configuration: Horizontal, Upflow
• Air Flow Configuration: Upflow/Horizontal
• Fuel Type: Natural Gas
• Manufacturer: Rheem Manufacturing
• Gas Connection: 1/2 inches
• Power Supply: 115/1/60 V/Ph/Hz
