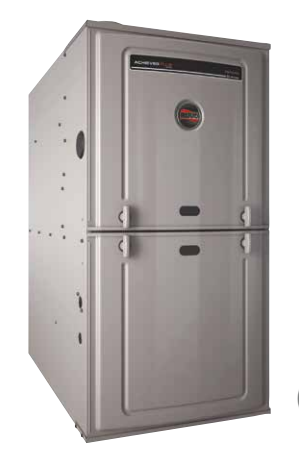

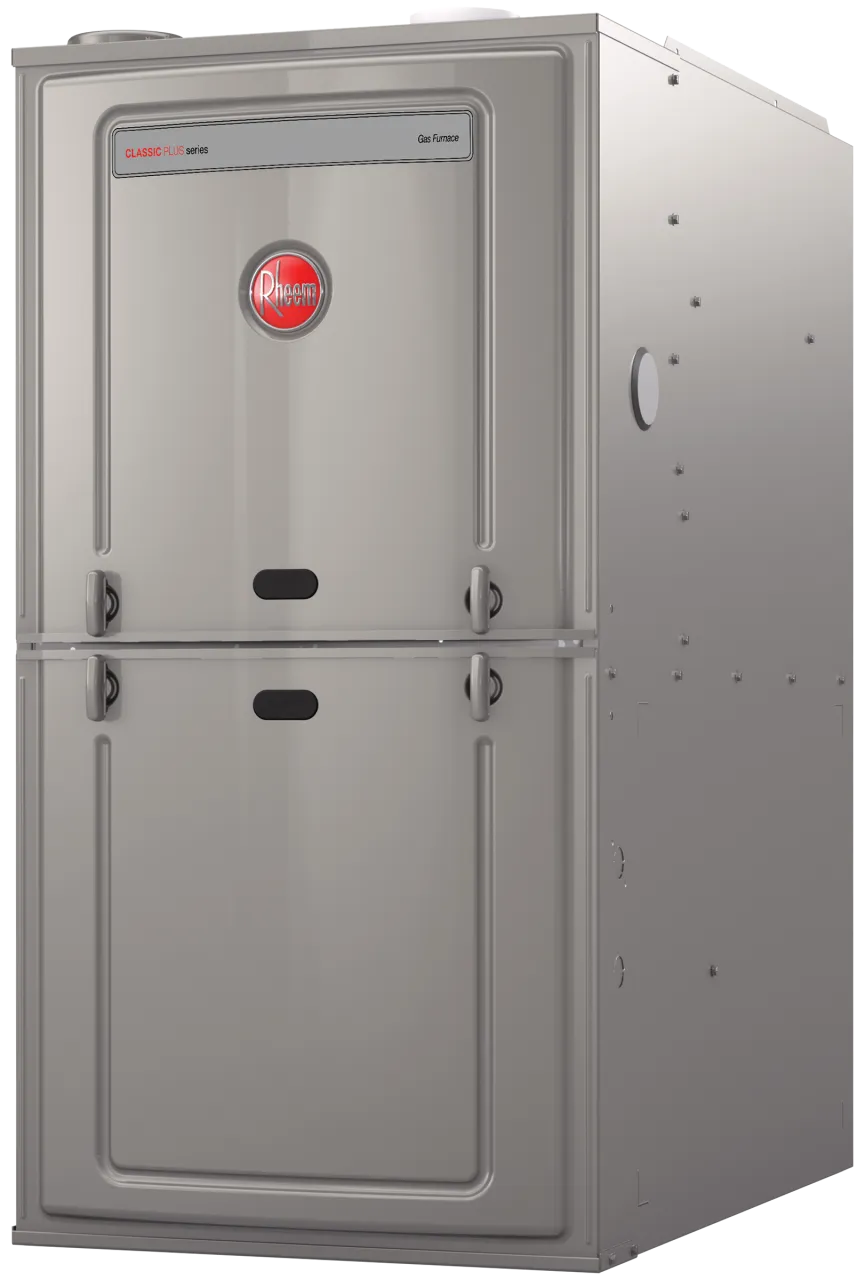

Ruud R802V0754A17DZSCAP Endeavor Classic Plus Line Gas Furnace 75000 BTU/hr

Product Description

The Ruud R802V0754A17DZSCAP Endeavor Classic Plus Line Gas Furnace offers an input of 75000 BTU/hr and an output of 60000 BTU/hr. This gas furnace from the R802V series operates at 115 V and consumes 13 A, with a rating of 1450 cfm and a 3/4 hp motor. It has an 80% AFUE rating, equipped with PlusOne ignition and direct spark ignition.

• EcoNet enabled with Bluetooth for monitoring and troubleshooting via Ruud apps.
• Includes a constant cfm motor for improved humidity control and energy efficiency.
• Fully insulated blower cabinet minimizes operational noise.

Product Highlights

The Ruud R802V0754A17DZSCAP is suitable for residential heating, providing efficient and reliable warmth during colder months.

Product Information

Standard Information

• Type: Gas Furnace
• Model: Classic Plus

Technical Specifications

• Amperage Rating: 13 A
• Cabinet Dimensions: 34 inches H x 17.5 inches W
• Connection Size: 1/2 inches
• Connection Type: NPT
• Frequency Rating: 60 Hz
• Fuse Rating: 20 A
• Ignition System: PlusOne
• Ignition Type: Direct Spark
• Motor Type: ECM Variable Speed
• Number of Stages: 2
• Output BTU Rating: 60000 BTU/hr
• Phase: 1 ph
• Series: R802V
• Temperature Rise: 25 to 55 degrees F
• Vent Size: 6 inches
• Input BTU Rating: 75000 BTU/hr
• Voltage Rating: 115 V
• CFM Rating: 1450 cfm
• HP Rating: 3/4 hp
• AFUE Rating: 80%
• Configuration: Horizontal, Upflow
• Gas Connection: 1/2 inches
• Power Supply: 115/1/60 V/Ph/Hz
• Depth: 29.59 inches
• Weight: 115 pounds
