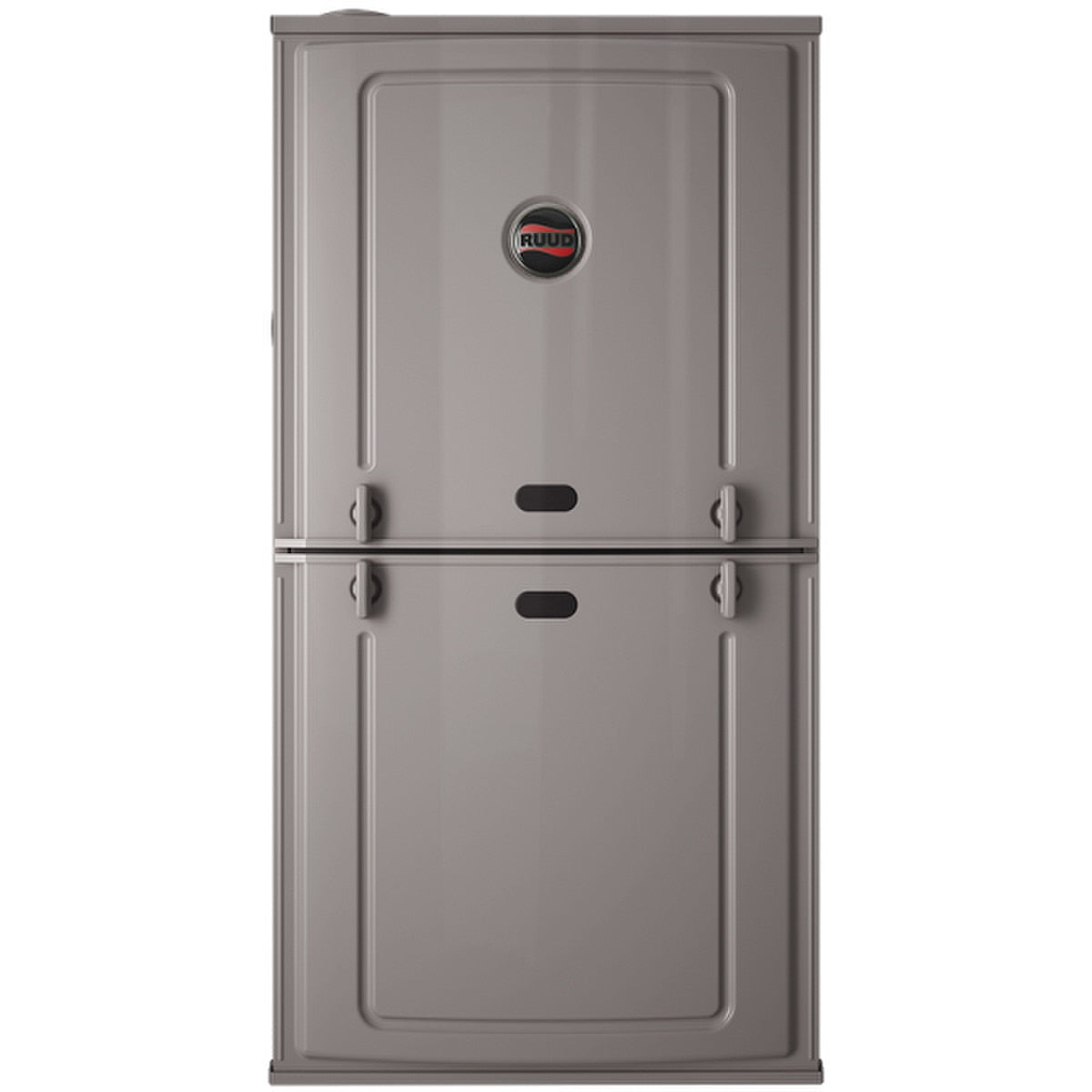

Ruud R801V1255A24UHSCAP Classic Series Gas Furnace 125000 BTU 1900 cfm

Product Description

The Ruud R801V1255A24UHSCAP gas furnace provides reliable heating with an input of 125000 BTU and an output of 100000 BTU. This single-stage furnace operates at 115 V, 13 A, and 60 Hz. It features a blower rating of 1900 cfm and a durable 3/4 hp motor. The horizontal upflow design includes direct spark ignition for efficient operation.

• EcoNet technology enables Bluetooth monitoring through mobile apps.
• Direct spark ignition enhances reliability.
• Variable speed ECM motor helps in optimizing humidity and improving energy efficiency.

Product Highlights

This furnace is designed to meet heating needs while promoting energy savings and comfort in residential spaces.

Product Information

Standard Information

• Brand: Ruud
• MPN: R801V1255A24UHSCAP

Technical Specifications

• Input BTU Rating: 125000 BTU/hr
• Output BTU Rating: 100000 BTU/hr
• CFM Rating: 1900 cfm
• Amperage Rating: 13 A
• Voltage Rating: 115 V
• Motor Type: Variable Speed ECM
• Dimensions: 34 inches H x 24.5 inches W x 29.59 inches D
• Weight: 150 pounds
• Efficiency: 80%
• Heating Capacity: 100000 BTU/hr
• Phase: 1 ph
• Heating CFM: 1900
• Configuration: Horizontal Upflow
• EcoNet Enabled: Yes
• Bluetooth Connectivity: Yes
