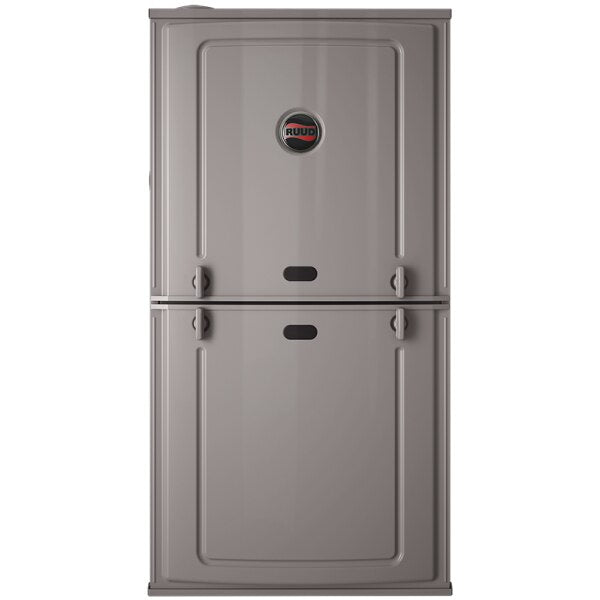

Ruud R801V0754A17UHSCAP Classic Series Gas Furnace 75000 BTU Horizontal Upflow

Product Description

The Ruud Classic Series Gas Furnace R801V0754A17UHSCAP operates on 115 V and has a rating of 1450 cfm. This model is designed for horizontal upflow applications. It provides an input of 75000 BTU/hr with an output of 60000 BTU/hr and a 0.8 % AFUE rating. The unit employs direct spark ignition and a variable speed ECM motor for efficient heating.

• EcoNet enabled with Bluetooth for easy monitoring.
• Variable speed ECM motor for energy efficiency.
• Direct spark ignition for reliability.

Product Highlights

This furnace is ideal for residential heating, delivering efficient comfort with modern technology.

Product Information

Standard Information

• Brand: Ruud
• MPN: R801V0754A17UHSCAP

Technical Specifications

• Series: R801V
• Input BTU Rating: 75000 BTU/hr
• Output BTU Rating: 60000 BTU/hr
• Voltage: 115 V
• Amperage: 13 A
• CFM Rating: 1450 cfm
• Horsepower: 3/4 hp
• AFUE: 0.8
• Configuration: Horizontal Upflow
• Blower Size: 11 in D x 7 in W
• Cabinet Dimensions: 34 in H x 17.5 in W x 29.59 in D
• Motor: Variable Speed ECM Motor
• Ignition: Direct Spark Ignition
• Rise: 25 to 55 deg F
• AHRI: 212387022
• Efficiency: 80%
• EcoNet Enabled: Yes
• Fuel Type: Natural Gas
• Temperature Rise Range: 25-55 °F
