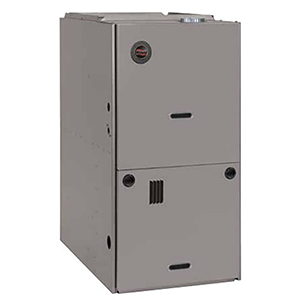

Ruud R801T0755A21DZSNAS Endeavor Classic Series Gas Furnace 115 V 2000 cfm Replacement MPN

Product Description

The Ruud Endeavor Classic Series gas furnace, model R801T0755A21DZSNAS, is designed to provide efficient heating with a maximum input of seventy-five thousand BTU per hour and an output of sixty thousand BTU per hour. This unit operates at one hundred fifteen volts and delivers a flow rate of two thousand cubic feet per minute. The furnace is compact with a height of thirty-four inches, width of twenty-one inches, and depth of twenty-eight point eight one inches.

• Features PlusOne Diagnostics with a seven-segment LED for service ease.
• Includes a Direct Spark Ignition system for reliable operation.
• Compact low-profile design suitable for tight installation spaces.

Product Highlights

Efficient gas heating with a downflow configuration suited for various installation needs.

Product Information

Standard Information

• Series: R801T
• Input BTU Rating: 75000 Btu/hr

Technical Specifications

• Output BTU Rating: 60000 Btu/hr
• Voltage: 115 V
• Amperage: 11 A
• CFM Rating: 2000 cfm
• Horsepower: 1 hp
• AFUE: 0.80
• Phase: 1 ph
• Hertz: 60 Hz
• Stages: 1 Stage
• Configuration: Downflow Zero Clearance
• Fuel Type: Gas
• Cabinet Dimensions: 34 in H x 21 in W x 28.81 in D
• Motor Type: Constant Torque Motor
• Ignition Type: Direct Spark Ignition
• Temperature Rise: 25 to 55 deg F
• Manufacturer Part Number: R801T0755A21DZSNAS
• Efficiency: 80%
• Airflow: Downflow
• BtuH Input: 75000
