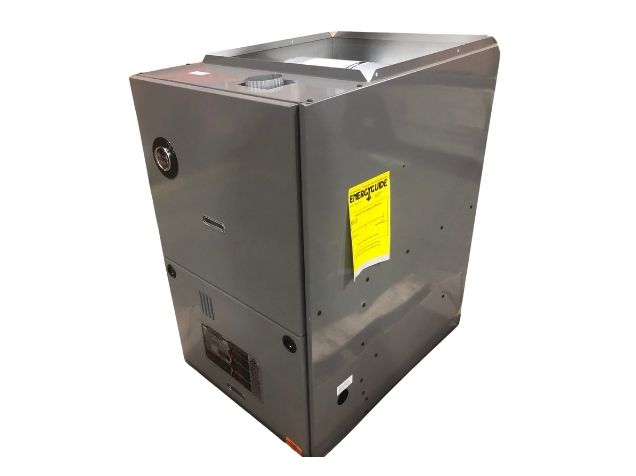

Ruud R801CA075521ZSA Gas Furnace 75MBTU (21 inch)

Product Description

The Ruud R801CA075521ZSA Gas Furnace is an 80% AFUE, downflow, single-stage furnace with a 75,000 BtuH capacity. Features include PlusOneTM Diagnostics with a 7-segment LED, and the PlusOneTM Ignition System for reliability. The heat exchanger is removable and made of aluminized steel for corrosion resistance. Designed with a low-profile 34" cabinet for space-constrained installations.

• CSA certified 80% residential gas furnace
• Features PlusOneTM Diagnostics with 7 Segment LED
• Equipped with PlusOneTM Ignition System for reliability and longevity

Product Highlights

This Ruud gas furnace offers efficient heating with a robust design, easy setup, and enhanced serviceability.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: R801CA075521ZSA
• Country of Origin: Mexico

Technical Specifications

• Cabinet Size: 21
• Efficiency: 80%
• Stage: 1
• System Controls: NON-COMMUNICATING
• Type: GAS/PROPANE
• MODEL NUMBERS R801C (DF) SERIES: R801CA075521Z*A
• Input in BTU’s/Hr [kW]: 75,000 [22]
• Heating Capacity in BTU’s/Hr [kW]: 60,000 [18]
• Heat Ext. Static Pressure in wc [kPa]: 0.12 [0.029]
• Blower (D x W) in inches [mm]: 11 x 10 [279 x 254]
• Motor H.P.-Speeds - Type [W]: 1hp, 5spd, X-13 [746]
• Min. Circuit Ampacity: 13
• Min. Overload Protection: 15
• Max. Overload Protection: 20
• Heating Speed (factory setting): MED
• Cooling Speed (factory setting): HIGH
• Cooling in CFM [L/s] @ 0.5 wc [0.12 kPa] E.S.P. (nominal): 2000 [944]
• Rated E.S.P. in wc [kPa]: 0.5 [0.12]
• Temperature Rise Range in °F [°C]: 25-55 [13.9-30.6]
• Max Outlet Air in °F [°C]: 165 [73.8]
• AFUE - Electronic Ignition Modules: 80%
