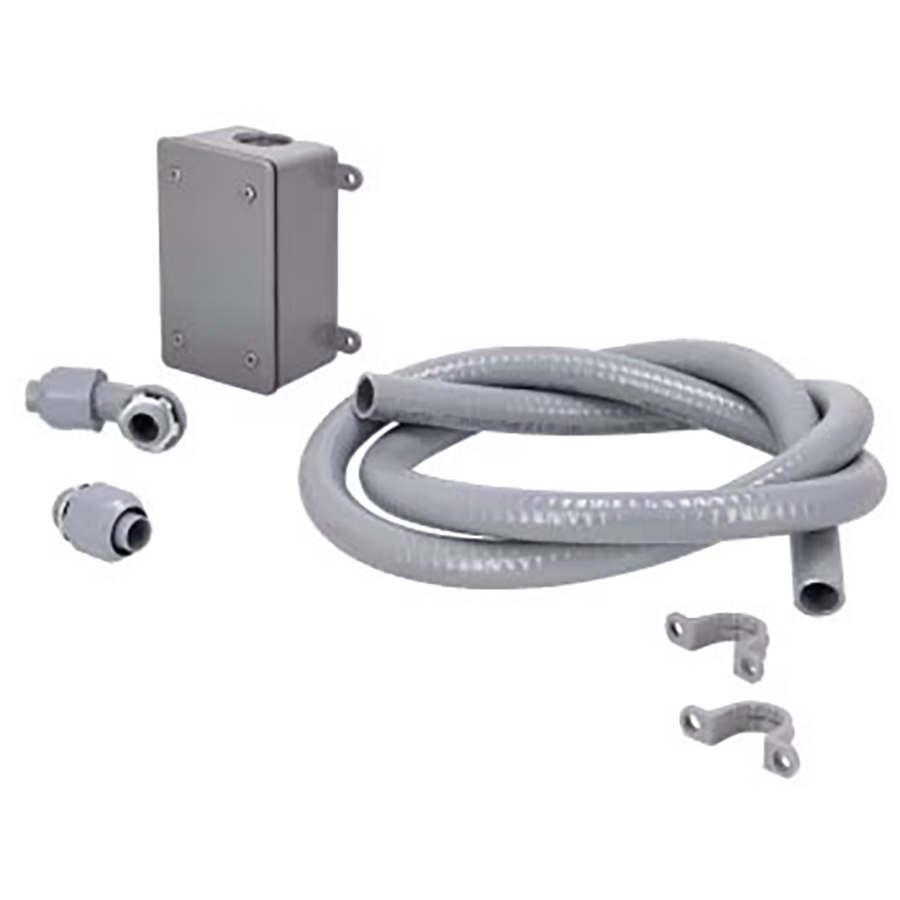

Ruud PD455684 Furnace Conduit Kit Junction Box A2L

Product Description

The RUUD PD455684 is a furnace conduit kit with an integrated junction box, designed for use in systems that operate with A2L refrigerants. This kit provides the electrical conduit routing and junction point needed to safely manage low-voltage and line-voltage wiring within a furnace installation. It is built to meet the requirements of A2L refrigerant-compatible equipment, making it appropriate for newer high-efficiency furnace platforms where A2L compliance is mandated. Licensed HVAC technicians install this kit as part of a complete furnace wiring assembly, ensuring conduit integrity and proper junction box placement per applicable codes.

This conduit kit is intended for residential and light commercial furnace applications where A2L refrigerant-compatible system components are required. It is used during new installations or service replacements on furnace units that carry A2L compatibility ratings. The kit consolidates conduit and junction box hardware into a single assembly, reducing field fabrication time and helping technicians maintain consistent wiring paths from the furnace cabinet to external electrical connections.

Key Features

• A2L refrigerant-compatible construction meets current equipment requirements
• Integrated junction box eliminates the need for separate field-sourced enclosures
• Conduit and junction box supplied as a matched kit for consistent fitment
• Designed for use in furnace electrical wiring assemblies during installation or service

Compatibility

Designed as an OEM-style replacement conduit kit for RUUD furnaces that are rated for A2L refrigerant-compatible operation. Confirm equipment model compatibility using the RUUD product documentation or unit nameplate before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with NEC requirements and applicable local codes. Disconnect and lock out all power to the furnace before beginning any wiring work or conduit installation. Verify that conduit routing does not create sharp bends that could damage wire insulation. Secure all junction box connections fully before restoring power to the unit.

Technical Specifications

• A2L Refrigerant Compatible: Yes

Standard Information

• Brand: RUUD
• Manufacturer Part Number: PD455684
