Ruud HE7J924A130A0000AP 1.5 Ton Uncased Evaporator Coil Txv

Product Description

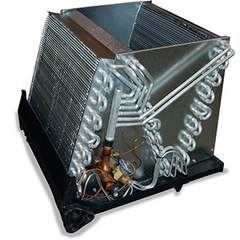

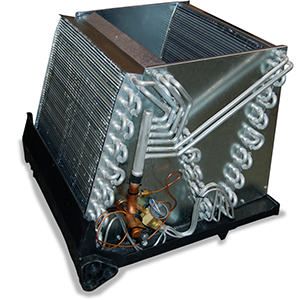

The RUUD HE7J924A130A0000AP is a 1.5-ton uncased evaporator coil designed for split-system air conditioning applications. It ships with a factory-installed TXV (thermostatic expansion valve) for accurate refrigerant metering and efficient system performance. The coil is right-hand oriented with a TXV access port on the right side. At 15 inches tall, 13 inches wide, and 19.5 inches deep, it fits standard air handler cabinets and plenums in residential installations. Licensed HVAC technicians install this coil as part of a matched refrigerant system, pairing it with a compatible condensing unit and air handler.

This coil is suited for residential split-system cooling installations where an uncased coil is required. The multi-position design allows installation in upflow, downflow, or horizontal configurations depending on the air handler orientation. The dual 3/4-inch FPT drain connections support proper condensate management in either orientation. The suction line connection is 3/4 inch and the liquid line connection is 3/8 inch, consistent with 1.5-ton refrigerant circuit sizing.

Key Features

• Factory-installed TXV for accurate refrigerant metering and improved efficiency
• Right-hand TXV access port orientation
• Uncased design for direct installation inside existing air handler cabinets or custom plenums
• Multi-position configuration supports upflow, downflow, or horizontal installation
• Dual 3/4-inch FPT drain ports accommodate either-side condensate drainage
• 5-year limited warranty standard; 10-year warranty with product registration

Compatibility

Designed as an OEM-style replacement or new-installation uncased evaporator coil for 1.5-ton residential split-system air conditioning and heat pump applications.

Installation Notes

Installation must be performed by a licensed HVAC technician in compliance with local mechanical codes and EPA Section 608 refrigerant handling regulations. Disconnect and lock out all electrical power and recover refrigerant from the existing system before removing or installing any coil. Confirm that the air handler cabinet dimensions and drain pan configuration are compatible before inserting the uncased coil. Pressure-test and leak-check all refrigerant connections before recharging the system.

Technical Specifications

• Nominal Capacity: 1.5 tons
• Casing: Uncased
• Orientation: Multi-position
• TXV: Factory-installed, right-hand access port
• Height: 15 inches
• Width: 13 inches
• Depth: 19.5 inches
• Suction Line Connection: 3/4 inch
• Liquid Line Connection: 3/8 inch
• Drain Connection: 3/4 inch FPT dual drain
• Warranty: 5-year limited; 10-year with registration

Standard Information

• Brand: RUUD
• Manufacturer Part Number: HE7J924A130A0000AP
