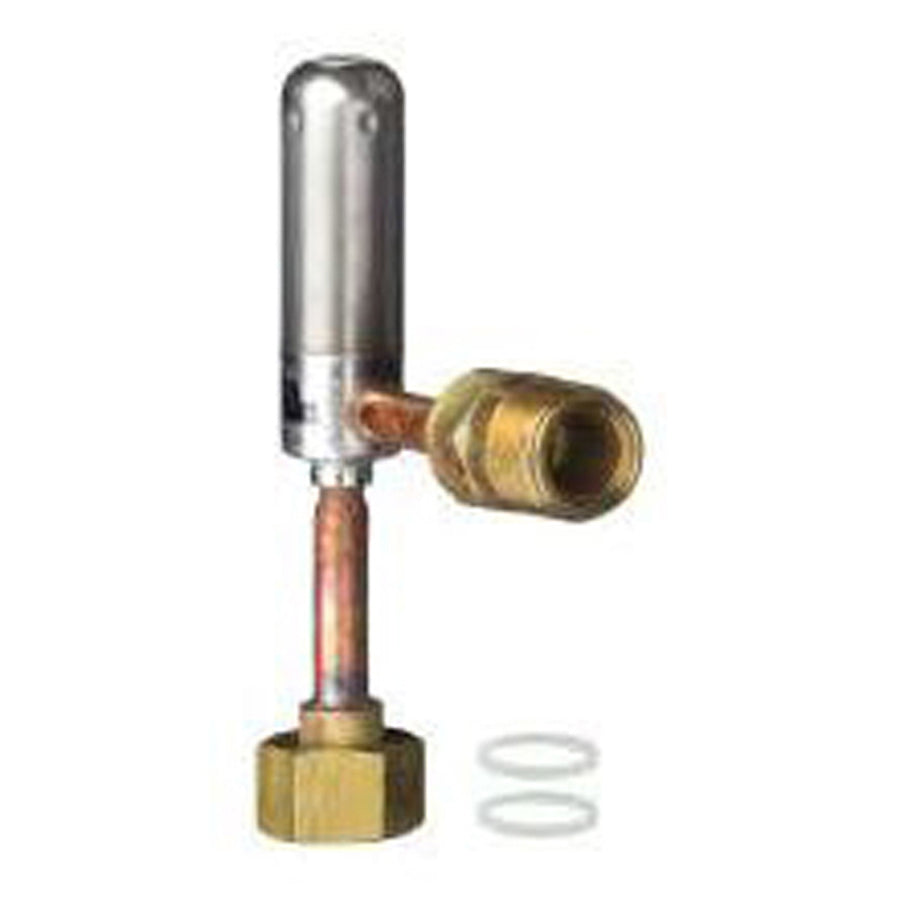

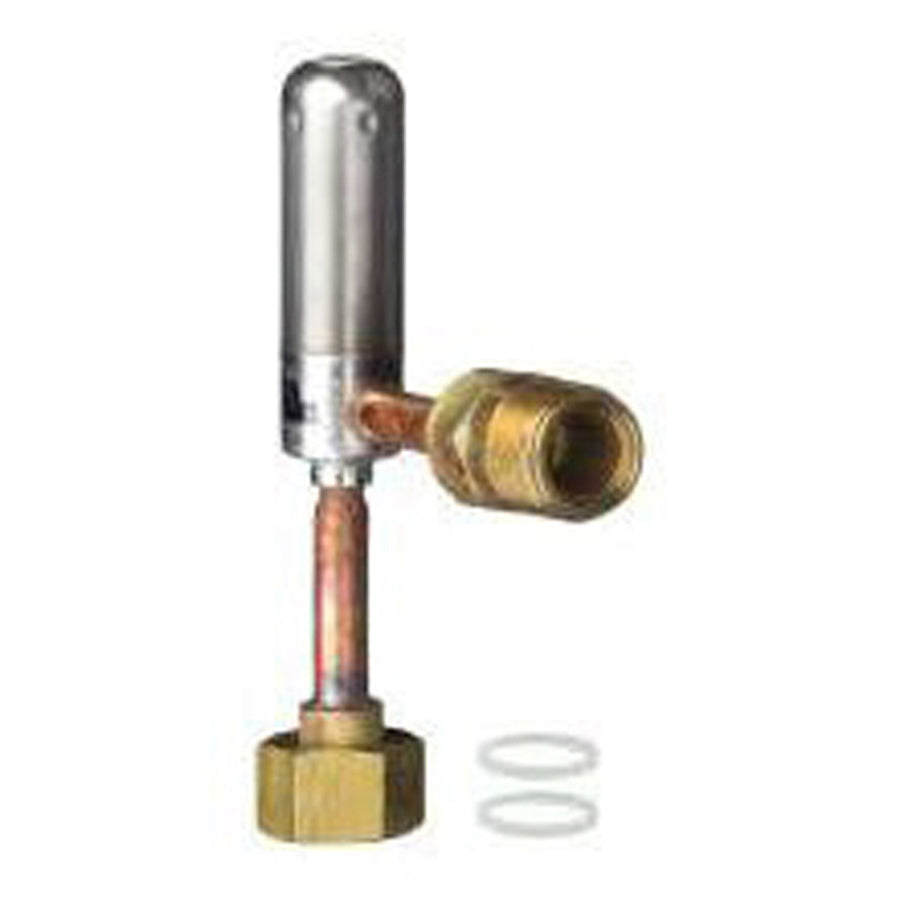

Ruud AS-106282-83 Electronic Expansion Valve Assembly

Product Description

The RUUD AS-106282-83 is an electronic expansion valve (EEV) assembly designed for use in refrigerant metering on furnace coil systems. The EEV regulates refrigerant flow into the evaporator coil by modulating the valve opening in response to system demand signals, allowing for precise capacity control compared to fixed orifice or thermal expansion devices. Weighing 2.0 pounds and measuring 4.0 inches in length, 3.0 inches in width, and 1.0 inch in height, this assembly is a direct OEM replacement component installed by licensed HVAC technicians during commissioning or service of matched refrigerant systems.

This assembly is used on the RCF-6021SEAMCA and RCF-6021SEAVUA furnace coil models. These are fan coil or furnace coil evaporator assemblies typically installed in residential forced-air split systems. The EEV assembly is a critical metering component in variable-capacity or communicating system configurations where fixed metering devices are not suitable. Correct application to the specified coil models is essential for proper system operation and efficiency.

Key Features

• OEM replacement EEV assembly matched to RCF-6021SEAMCA and RCF-6021SEAVUA furnace coil models
• Enables precise electronic refrigerant metering for variable-capacity system performance
• Compact form factor: 4.0 inches long, 3.0 inches wide, 1.0 inch tall
• Lightweight assembly at 2.0 pounds for straightforward handling during installation
• Direct OEM-style fitment reduces field modification and commissioning time

Compatibility

Designed for use on the RCF-6021SEAMCA and RCF-6021SEAVUA furnace coil models as specified by the manufacturer.

Installation Notes

EEV assemblies must be installed by a licensed HVAC technician certified to handle refrigerants under applicable EPA Section 608 regulations. The refrigerant system must be recovered and the system fully de-energized before removing or installing this component. Follow the coil manufacturer service documentation for wiring harness connection and valve initialization procedures. Do not attempt to braze or disturb refrigerant connections without proper recovery equipment in place.

Technical Specifications

• Type: Electronic Expansion Valve Assembly
• Length: 4.0 inches
• Width: 3.0 inches
• Height: 1.0 inch
• Weight: 2.0 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: AS-106282-83
