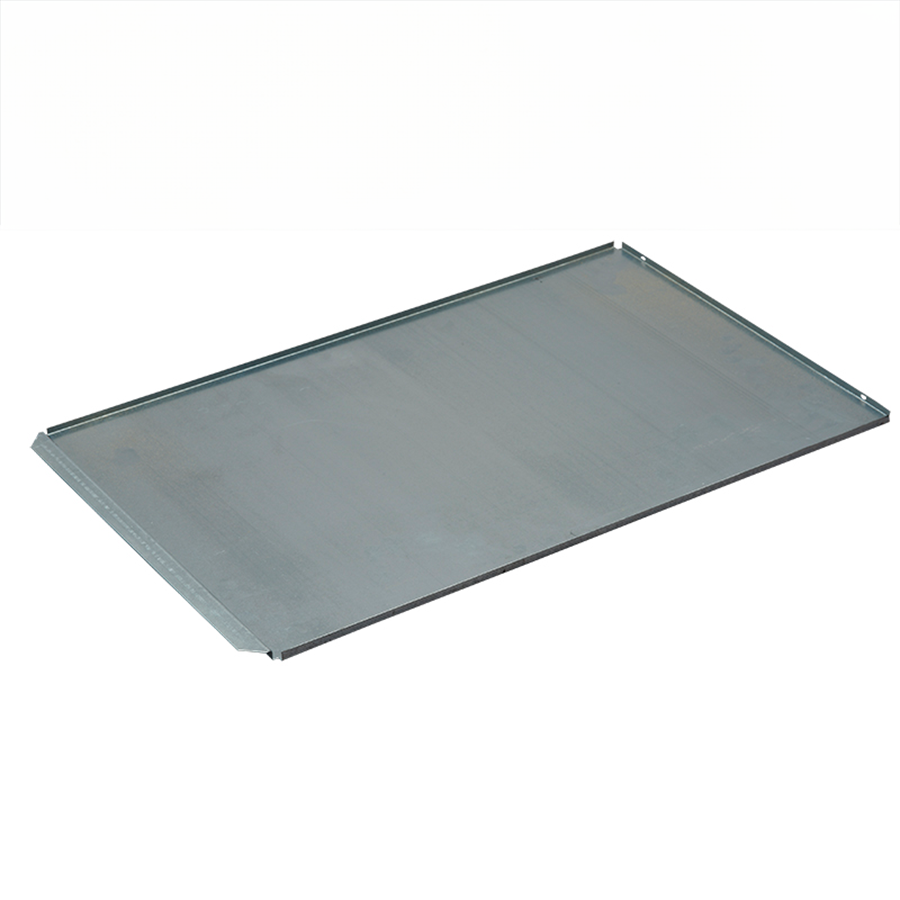

Ruud AE-103585-02 Solid Base Kit 21 Inch Wide Cabinet

Product Description

The RUUD AE-103585-02 is an OEM replacement solid base kit designed for 21-inch wide HVAC cabinet installations. Fabricated from durable sheet metal, this solid bottom base forms the structural foundation of the cabinet frame and body, providing rigid support for the unit during operation. It is intended for installation by licensed HVAC technicians as a direct replacement component when the original base is damaged, corroded, or missing. The sheet metal construction ensures consistent fitment and structural integrity consistent with original factory specifications.

This solid base kit is applicable to residential gas furnace installations where a 21-inch wide cabinet configuration is used. It is specifically noted for compatibility with RUUD furnace models in the R96VA, R97V-USA, R98MV, and R98V-USA product families. Installation typically occurs during cabinet assembly, major component replacement, or system rehabilitation where the base structure must be restored to factory condition.

Key Features

• OEM replacement solid bottom base for 21-inch wide HVAC cabinets
• Sheet metal construction provides durable, rigid cabinet support
• Direct-fit replacement maintains original factory cabinet dimensions
• Compatible with multiple RUUD furnace series including R96VA, R97V-USA, R98MV, and R98V-USA

Compatibility

Compatible with RUUD furnace models in the R96VA, R97V-USA, R98MV, and R98V-USA series using 21-inch wide cabinet configurations. Verify cabinet width and model series before ordering.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect all power to the unit at the electrical disconnect and set the thermostat to the off position before beginning any cabinet work. Ensure the replacement base is fully seated and secured to the cabinet frame before restoring power or gas supply. Follow local mechanical codes and manufacturer service documentation throughout the repair process.

Technical Specifications

• Item Type: Solid Bottom Base
• Cabinet Width: 21 inches
• Material: Sheet Metal

Standard Information

• Brand: RUUD
• Manufacturer Part Number: AE-103585-02
