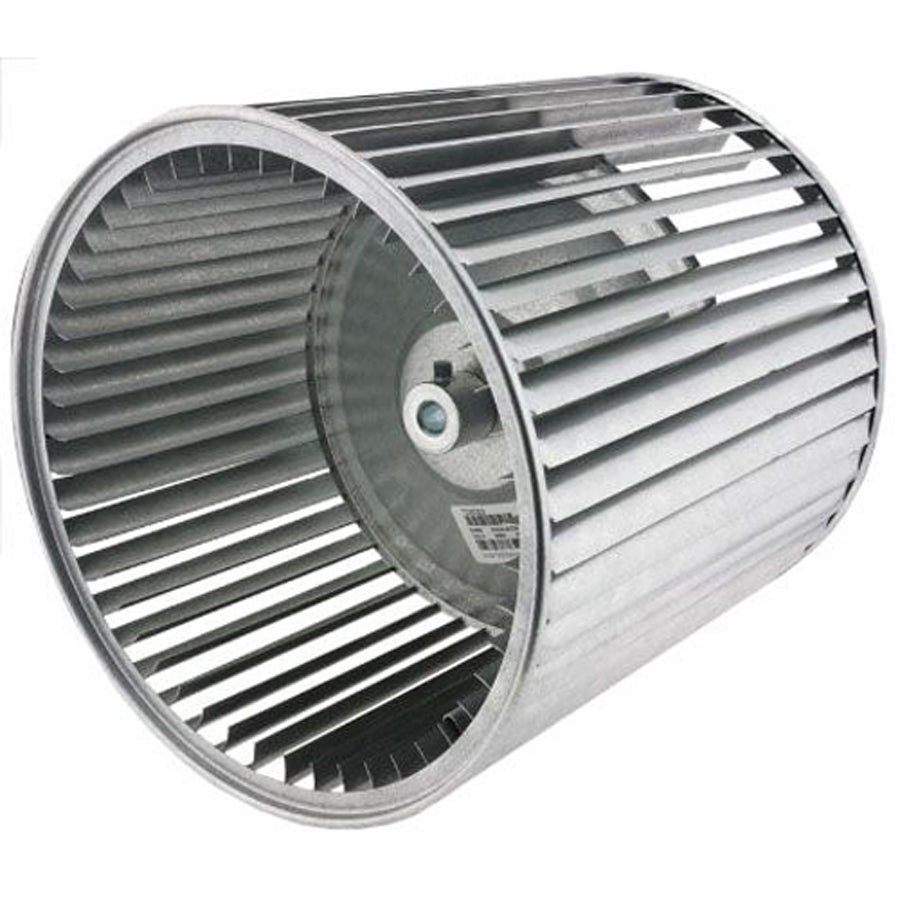

Ruud 703023 Blower Wheel 10-5/8x10-11/16 48-blade Cw

Product Description

The RUUD 703023 is a direct-drive blower wheel designed for use in forced-air HVAC blower assemblies. Measuring 10-5/8 inches in diameter by 10-11/16 inches wide, this 48-blade wheel features a convex disc design and clockwise (CW) rotation. The hub bore accepts a 1/2-inch shaft, and the hub itself measures 1-1/8 inches. With a 48-blade configuration, this wheel moves a high volume of air efficiently across a wide range of static pressure conditions. Licensed HVAC technicians performing blower section repairs or replacements will find this wheel a close OEM-style fit for applicable RUUD equipment.

This blower wheel is suited for residential and light commercial forced-air systems where the original blower assembly requires wheel replacement due to wear, imbalance, or physical damage. It is installed inside the blower housing and connected directly to the blower motor shaft. Technicians replacing a failed or noisy blower wheel during a scheduled maintenance call or equipment repair will find this part appropriate for standard blower deck configurations found in RUUD air handlers and furnaces.

Key Features

• 10-5/8 inches diameter x 10-11/16 inches wide blower wheel
• 48-blade convex disc design for efficient airflow
• Clockwise (CW) rotation — confirm motor rotation before ordering
• 1/2-inch hub bore shaft for direct motor shaft connection
• 1-1/8-inch hub depth for secure shaft engagement
• OEM-style replacement for RUUD blower assemblies

Compatibility

Designed as an OEM-style replacement blower wheel for RUUD forced-air blower assemblies requiring a 10-5/8 inches x 10-11/16 inches, 48-blade, 1/2-inch bore, clockwise-rotation wheel.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before accessing the blower compartment. Verify motor shaft diameter and rotation direction before installing the replacement wheel, as installing a wheel with incorrect rotation will significantly reduce airflow performance. Secure the wheel to the motor shaft using the setscrew at the hub bore and confirm the wheel spins freely without contact with the housing before restoring power.

Technical Specifications

• Wheel Diameter: 10-5/8 inches
• Wheel Width: 10-11/16 inches
• Hub Bore: 1/2 inch
• Hub Depth: 1-1/8 inches
• Number of Blades: 48
• Disc Type: Convex
• Rotation: Clockwise (CW)
• Package Length: 15.4 inches
• Package Width: 14.65 inches
• Package Height: 14.65 inches
• Weight: 7.88 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 703023
