Ruud 70-23641-81 A241 Fasco, Rheem Rudd Furnace Draft Inducer Blower REPLACEMENT 70-23641-86

Product Description

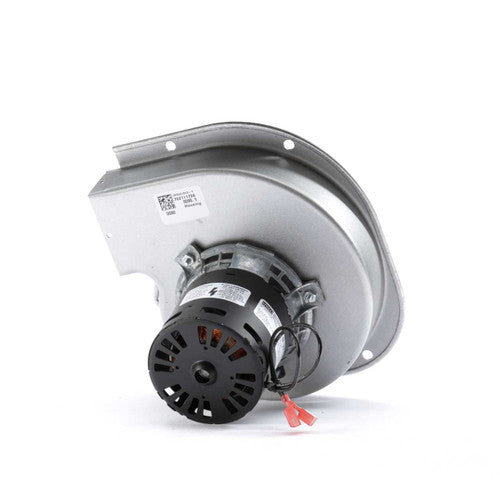

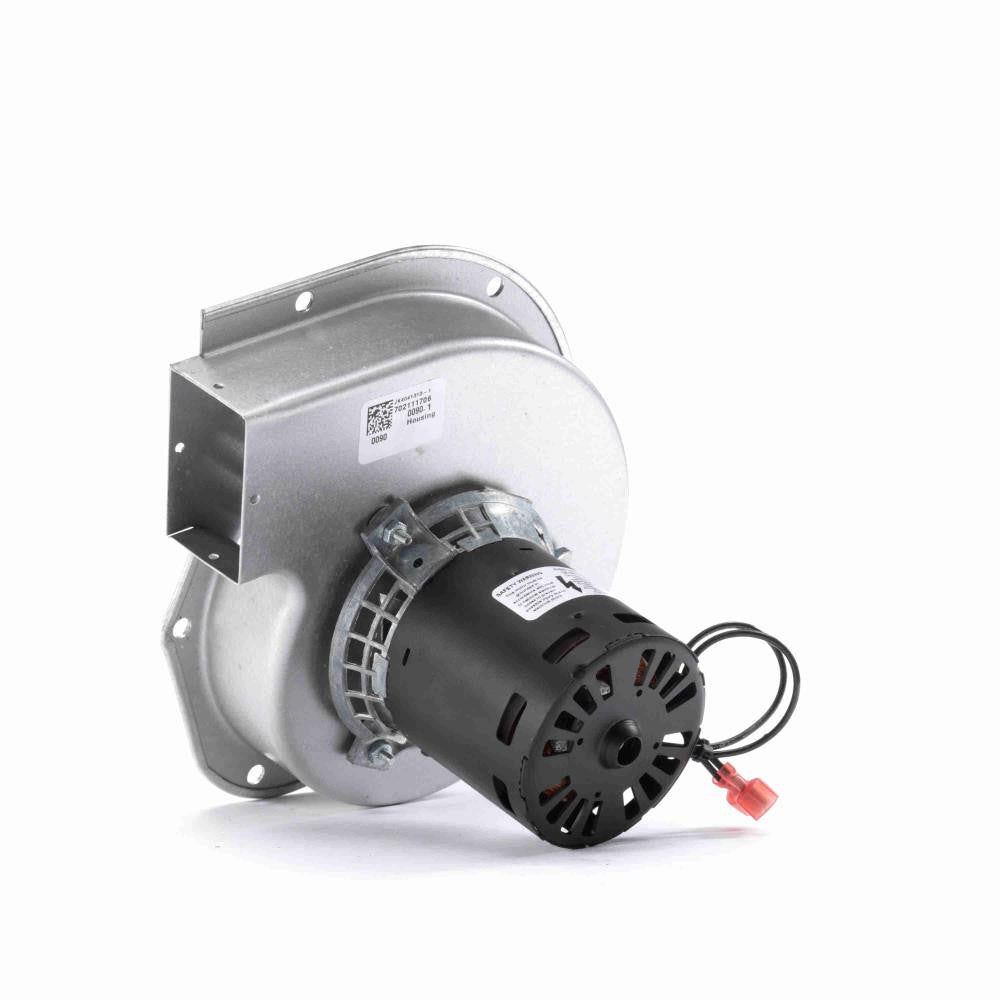

The RUUD 70-23641-81 A241 Fasco, Rheem Rudd Furnace Draft Inducer Blower is designed for furnace flue exhaust. Operating at 208/230 Volts and 0.62 Amps, it features a shaded pole motor and runs at 3200 RPM. This blower includes a gasket and has 6" leads with spade terminals.

• Furnace Flue Exhaust Blower
• Includes Gasket
• Motor has two 6" wires leads with male stake on connectors

Product Highlights

This draft inducer blower ensures efficient furnace operation and is a suitable replacement for various Rheem and Ruud part numbers.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 70-23641-81

Technical Specifications

• Volts: 208/230
• Amps: 0.62 amps
• Rpm: 3200 RPM
• Rotation: Counter Clockwise Lead End
• Diameter: 3.3"
• Pole: Shaded Pole
• Protection: Thermally Protected
• Air Over: Open Air Over
• Insulation: Class B Insulation, 40°C Ambient
• Bearing: Ball Bearing
• Leads: 6" Leads with Spade Terminals
• Includes: Gasket
• Horsepower: 1/25 hp
• Voltage: 208-230 volt
• Frequency: 50/60hz
• Motor Type: Shaded Pole Motor
• Speed: 1-Speed
• Motor Manufacturer: Fasco
• Motor Part #: 70219567
• Fasco Motor Type: U21B
• Hertz: 60
• Single Stage: Yes
• Motor Cooling: Air Over
• Inducer Housing: Metal
• Replaces Old Rheem Ruud Part Numbers: 70219137JC, 702112903, 70-23641-01, 70-23586-01, 70-23563-02, 70-23586-81
• Other Part Numbers: P/N70-23641-01, AO ML05, Protech, C4405, Beckett Air
• Fits Models: UKKA, UKKB, UKKB, RKMA, RGEA13, RGEA14, RGEA15, RKHLC, RKHLD, RKHLD, RKKLB, RKNA, RKNB, RKNLA, RKNLB, RKNLB, RKNLB, RKNLB, RKNLB, RKNLB, RKNLB, RKNLC, RKNLC, RKNLC, RKNLC, RKNLC, RKNLC, RKNLC, RKNLC, RKNLG, RKNLG, RKNLG, RKNLG, RKNLG, RKNLH, RKNLH, RKNLH, RKNLH, RKNLH, RKNNA, RKNNA, RKNNC, RKPLA, RKPLC, RKPNA, RKPNA, RKPNC, RKQNA, RKQNA, RKQNC, RKRLC, RKRLC, RKRLC, RKRLH, RKRLH, RKRLH, RQPWB, RRNAA, RRNAB, RRNAC, RRNLB, RRNLC, RRPLB, RRRLB, SKKLB, SKKLB, SKNLB, SKNLB, SKNLB, URKAA, URMAA, RKMB, RKMB, RKMB, RKNB
