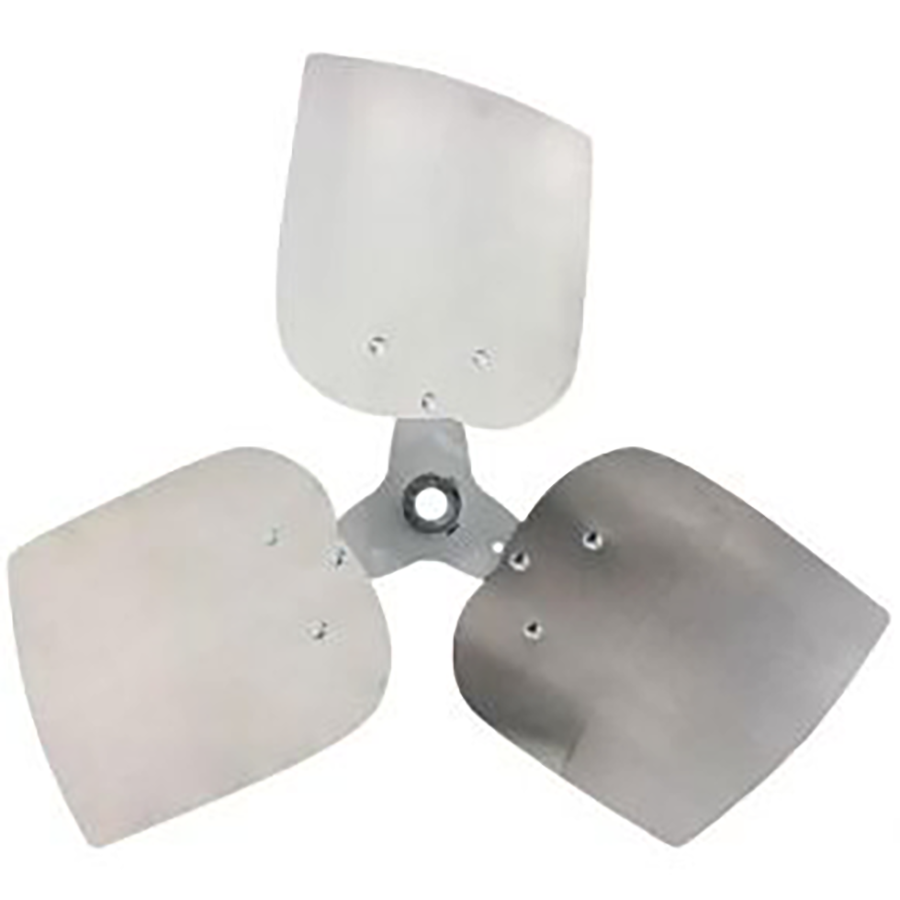

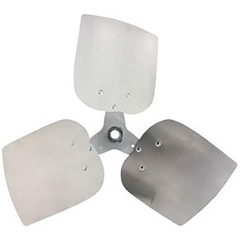

Ruud 70-102345-18 Fan Blade 3-blade 20 Inch

Product Description

The RUUD 70-102345-18 is a 3-blade axial fan blade designed as a direct replacement for residential and commercial HVAC condensing units and air-handling equipment. Built from galvanized steel and aluminum, this blade delivers reliable airflow performance in demanding outdoor and indoor environments. It features a 20-inch overall diameter, a 1/2-inch bore, a 28-degree pitch angle, and clockwise rotation when viewed from the air discharge side. HVAC technicians and contractors install this blade as part of routine condenser fan motor service or system fan assembly replacement.

This fan blade is suited for residential split-system condensing units and light commercial HVAC applications where a 20-inch, 3-blade axial impeller is specified. The galvanized steel and aluminum construction resists corrosion in outdoor installations. The 28-degree pitch and 1/2-inch bore make it compatible with a wide range of standard condenser fan motors. It is commonly installed during fan motor replacements, blade damage repairs, or full fan assembly overhauls on rooftop and ground-mounted equipment.

Key Features

• 3-blade axial impeller design for consistent, balanced airflow
• 20-inch overall diameter suits standard residential and light commercial condenser fan assemblies
• Galvanized steel and aluminum construction for corrosion resistance and durability
• 28-degree blade pitch for optimized airflow performance
• 1/2-inch bore diameter fits common condenser fan motor shaft sizes
• Clockwise rotation (viewed from air discharge side) matches standard condenser fan configurations

Compatibility

Designed as an OEM-style replacement fan blade for residential and commercial HVAC condensing units and air-handling systems requiring a 3-blade, 20-inch axial impeller with a 1/2-inch bore and 28-degree pitch.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing fan blade or motor assembly. Verify rotation direction and bore size against the existing assembly before installation. Ensure the blade is properly secured to the motor shaft and balanced before restoring power to the unit.

Technical Specifications

• Number of Blades: 3
• Overall Diameter: 20 inches
• Bore Diameter: 0.5 inches
• Blade Pitch: 28 degrees
• Rotation (Air Discharge Side): Clockwise (CW)
• Material: Galvanized Steel and Aluminum

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 70-102345-18
