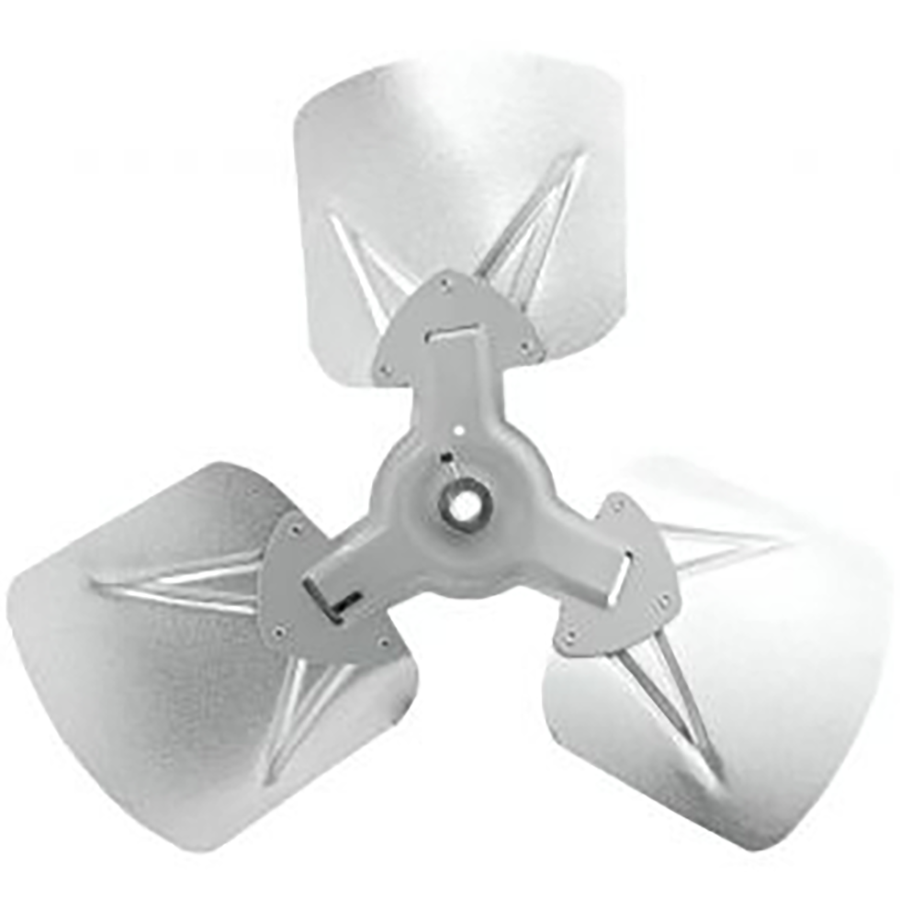

Ruud 70-101323-32 Ccw Fan Blade 20 Inch 3-blade

Product Description

The RUUD 70-101323-32 is a three-blade axial fan blade designed as a direct replacement for condenser and air-handling fan assemblies in residential and commercial HVAC systems. Built from galvanized steel and aluminum, it measures 20 inches in overall diameter with a 26-degree pitch and a 0.5-inch bore diameter. The counterclockwise (CCW) rotation is measured from the air discharge side. Licensed HVAC technicians install this blade as part of routine condenser fan motor service or fan assembly rebuilds.

This fan blade is suited for both residential and light commercial applications where a standard axial impeller is required. Its galvanized steel and aluminum construction holds up in outdoor condenser environments subject to weather exposure. The 20-inch diameter and 26-degree blade pitch make it one of the most widely used axial impeller configurations in North American HVAC equipment. It is appropriate for rooftop units, split-system condensers, and similar forced-air applications.

Key Features

• Three-blade axial impeller design for condenser and air-handler fan assemblies
• Galvanized steel and aluminum construction for durability in outdoor environments
• 20-inch overall diameter fits a broad range of HVAC fan decks
• 26-degree blade pitch for efficient airflow performance
• CCW rotation (facing air discharge side) — confirm motor shaft rotation before installing
• 0.5-inch bore diameter for standard fan motor shaft compatibility
• Hub located on the inlet side

Compatibility

Designed as an OEM-style replacement axial fan blade for residential and commercial HVAC condenser and air-handling fan assemblies requiring a 20-inch, 3-blade, CCW configuration with a 0.5-inch bore.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing fan blade or motor assembly. Verify motor shaft rotation direction matches the CCW specification before mounting. Confirm blade-to-shroud tip clearance meets manufacturer requirements before restoring power and cycling the system.

Technical Specifications

• Number of Blades: 3
• Overall Diameter: 20 inches
• Bore Diameter: 0.5 inches
• Blade Pitch: 26 degrees
• Rotation: CCW (facing air discharge side)
• Hub Location: Inlet side
• Material: Galvanized steel and aluminum

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 70-101323-32
