Ruud 70-101323-29 Fan Blade 26 Inch 3-blade Ccw

Product Description

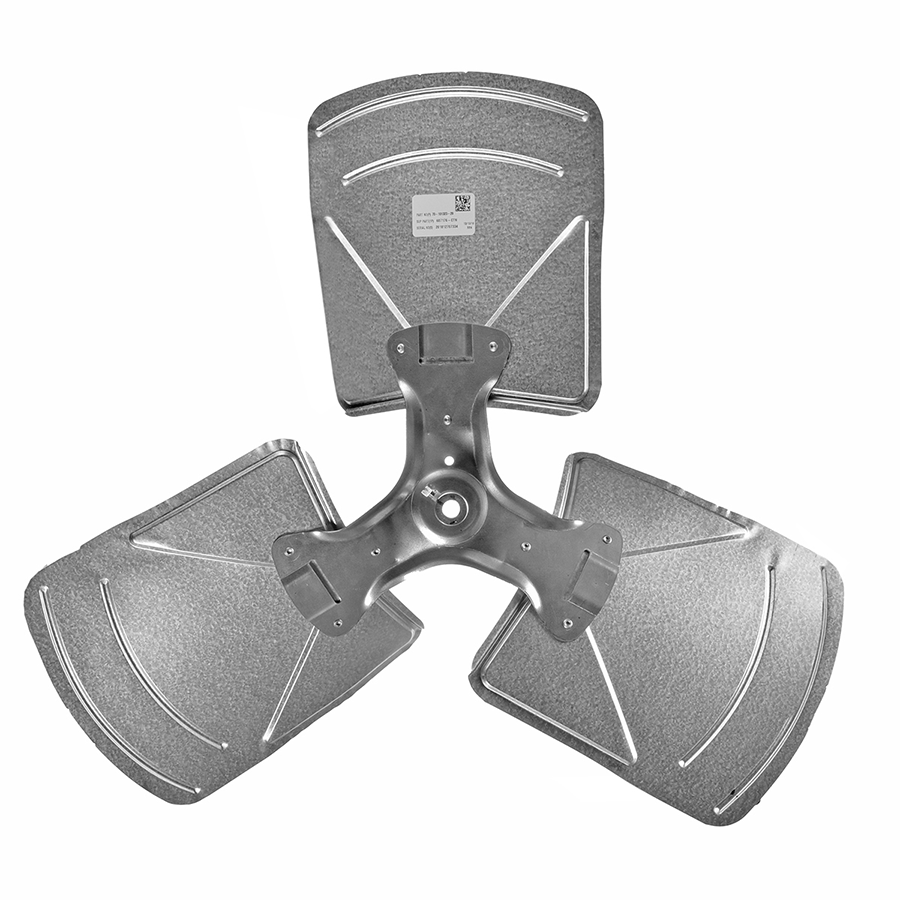

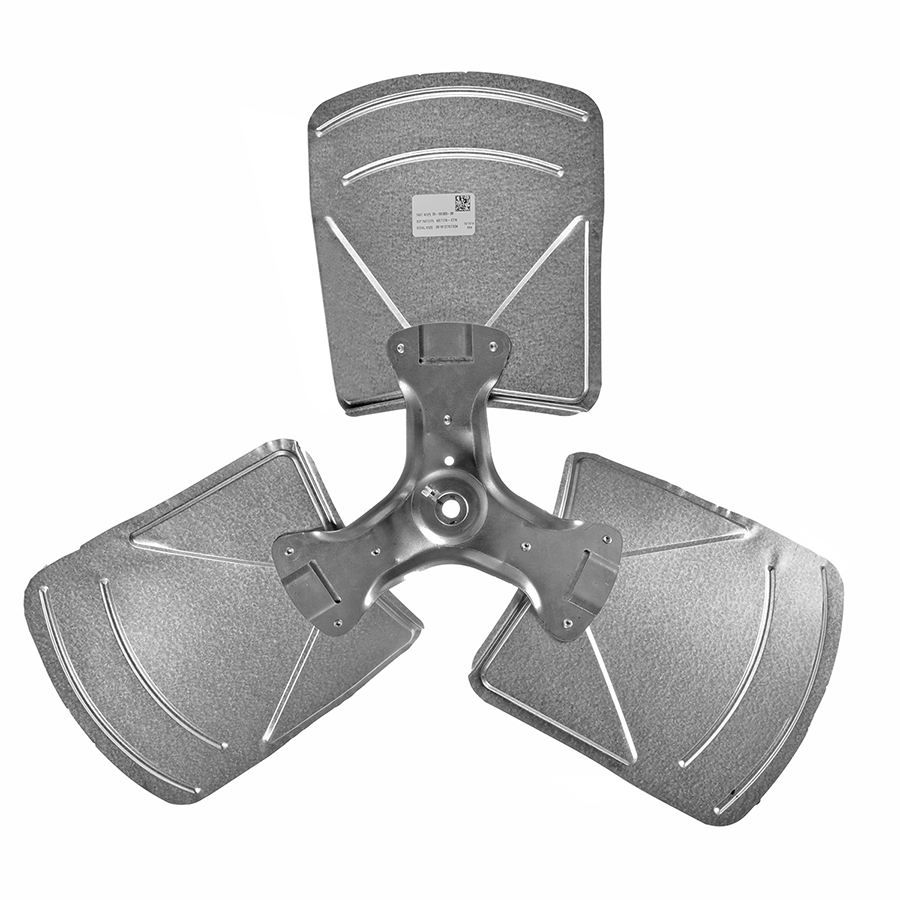

The RUUD 70-101323-29 is a 3-blade axial impeller fan blade designed as a direct replacement for residential and commercial HVAC equipment. Built from galvanized steel and aluminum, this blade measures 26 inches in overall diameter with a 1/2-inch bore and a 26-degree pitch. Rotation is counterclockwise (CCW) when viewed from the air discharge side, with the hub positioned on the inlet side. Licensed HVAC technicians install this blade during condenser fan motor replacements or blade damage repairs on forced-air cooling and heat pump systems.

This fan blade suits a wide range of residential and light commercial applications where a 26-inch CCW axial impeller is specified. Its galvanized steel and aluminum construction resists corrosion in outdoor condenser unit environments. The configurable design makes it a widely used replacement option across multiple system types and equipment generations. It is appropriate for rooftop units, split-system condensers, and similar forced-air applications requiring this diameter and pitch combination.

Key Features

• 26-inch overall blade diameter suits standard condenser fan assemblies
• 3-blade axial impeller configuration for balanced airflow
• 26-degree pitch delivers efficient air movement through the coil
• Counterclockwise (CCW) rotation, referenced from the air discharge side
• 1/2-inch bore diameter for common condenser fan motor shaft sizing
• Galvanized steel and aluminum construction for corrosion resistance in outdoor installations

Compatibility

Designed as an OEM-style replacement fan blade for residential and commercial HVAC condenser units requiring a 26-inch diameter, 3-blade, CCW axial impeller with a 1/2-inch bore and 26-degree pitch.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all electrical power to the unit before removing or installing the fan blade. Confirm rotation direction and hub location match the original blade before securing to the motor shaft. Verify the bore and set-screw interface are properly torqued per the motor manufacturer guidelines before restoring power.

Technical Specifications

• Blade Diameter: 26 inches
• Number of Blades: 3
• Pitch: 26 degrees
• Rotation: CCW (facing air discharge side)
• Bore Diameter: 0.5 inches
• Hub Location: Inlet side
• Material: Galvanized steel and aluminum

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 70-101323-29
