Ruud 68-24048-01 Trap Elbow Assembly Gas Furnace

Product Description

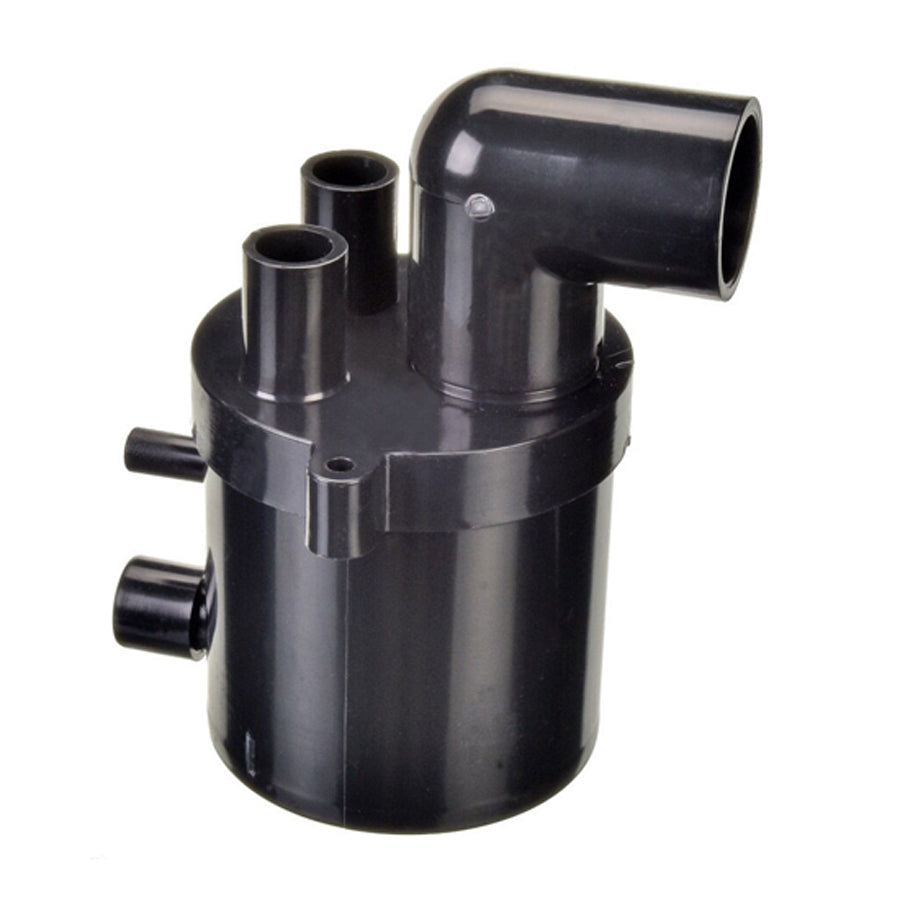

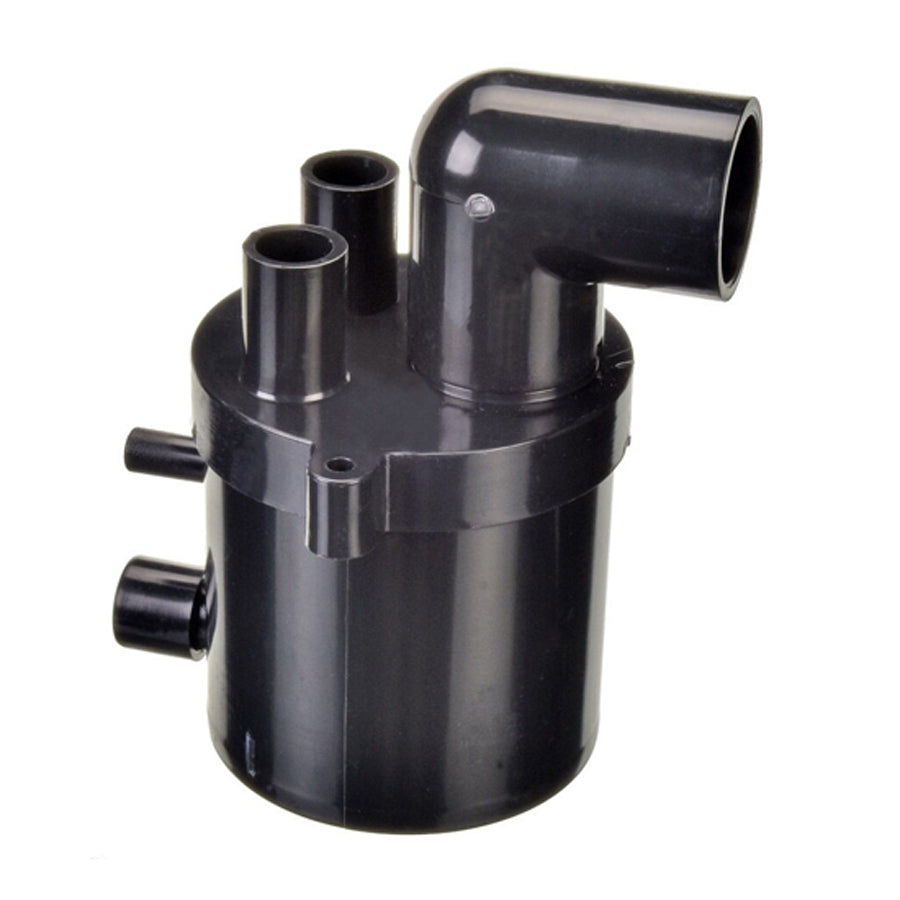

The RUUD 68-24048-01 is a trap and elbow assembly designed for use in condensate drainage systems on residential gas furnaces. This component manages condensate flow by directing drain water away from the heat exchanger and flue sections, preventing backflow and water damage to internal furnace components. It is a direct OEM-style replacement part, intended for installation by licensed HVAC technicians servicing RUUD and compatible gas furnace lines. The assembly measures 8.6 inches in length, 5.7 inches in width, and 3.1 inches in height, and weighs 0.78 pounds.

This trap and elbow assembly is used on a wide range of RUUD residential gas furnace models, including high-efficiency condensing units that generate significant condensate during normal operation. Typical installation scenarios include warranty service, preventive maintenance, and repair calls where the existing drain assembly is cracked, clogged, or otherwise failed. The part is suited for both upflow and applicable multi-position furnace configurations as supported by the listed model families.

Key Features

• OEM replacement trap and elbow assembly for RUUD gas furnace condensate drainage
• Compact form factor at 8.6 x 5.7 x 3.1 inches for easy integration into furnace cabinet
• Lightweight at 0.78 pounds for straightforward handling and positioning during install
• Compatible across a broad range of RUUD furnace model families
• Directs condensate flow away from heat exchanger and blower components

Compatibility

Designed for use on the following RUUD gas furnace families: RGFD, RGGD, RGGE, RGRA, RGRB, RGRC, RGRJ, RGRS, RGRT, RGSA, RGTA, RGTC, RGTJ, RGTK, RGTM, RGTS, 90RJ, 90RS, 90RT, 90TJ, 90TS gas furnaces.

Installation Notes

Installation should be performed by a licensed HVAC technician. Before servicing the condensate drain assembly, shut off power to the furnace at the disconnect switch or breaker and allow the unit to cool if recently operated. Verify the replacement assembly is fully seated and all drain connections are secure before restoring power. Follow all local mechanical codes and manufacturer service instructions when routing condensate drain lines.

Technical Specifications

• Type: Trap and Elbow Assembly
• Length: 8.6 inches
• Width: 5.7 inches
• Height: 3.1 inches
• Weight: 0.78 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 68-24048-01
