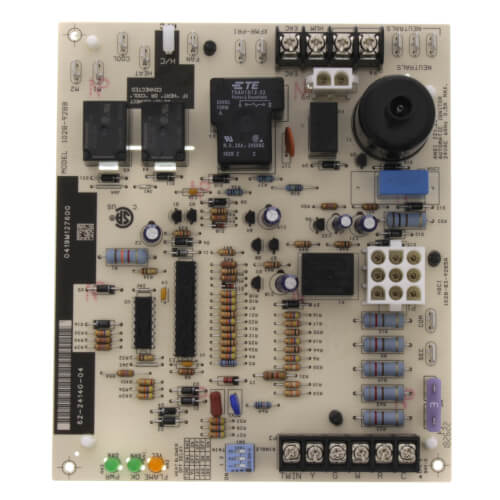

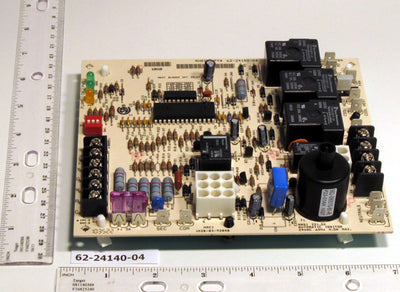

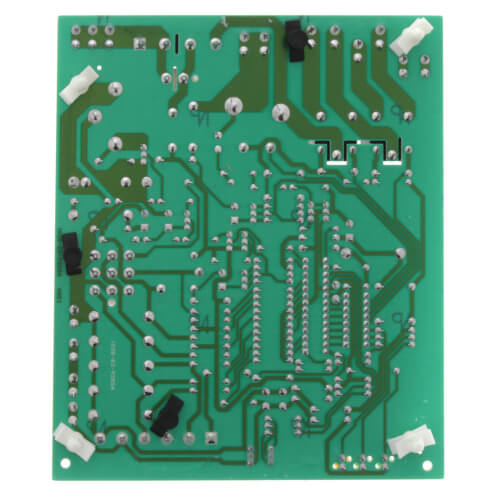

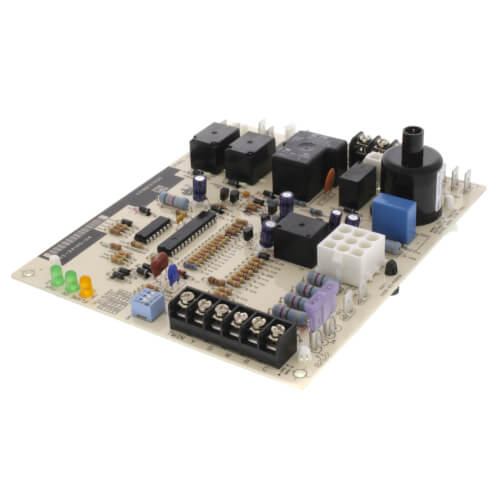

RUUD 62-24140-04 Integrated Furnace Control Board

Product Description

The RUUD 62-24140-04 Integrated Furnace Control Board is used for managing furnace operations in both residential and commercial heating systems. This control board monitors and adjusts operating conditions by utilizing sensor inputs such as temperature readings, limit switches, and flame sensors. It plays a key role in controlling ignition, airflow, and gas supply, ensuring optimal temperature maintenance and heating efficiency.

• Controls furnace operation
• Monitors and regulates operating parameters
• Designed for continuous use in heating systems

Product Highlights

Specially designed for use with different models of RUUD furnaces, this control board guarantees reliability and high performance.

Product Information

Standard Information

• Manufacturer Part Number: 62-24140-04
• Brand: RUUD

Technical Specifications

• Type: Gas Ignition Control Board, Microprocessor Based
• Input Voltage: 120 VAC, 60 Hz
• Control Voltage: 18 to 30 Volt AC, 60 Hertz
• Line Voltage: 115 Volt AC, 60 Hertz
• Gas Valve Current: 0.3 Amp at 24 Volt AC
• Ignition Trail Time: 7 seconds
• Prepurge Time: 30 seconds
• Dimensions: 5.75 inches length x 6.625 inches width x 2.5 inches height
• Operating Temperature: -40 to 176 degrees Fahrenheit
• Thermostat Interface Input: R, W, Y, and G
• Compatibility: Various RUUD furnace models
