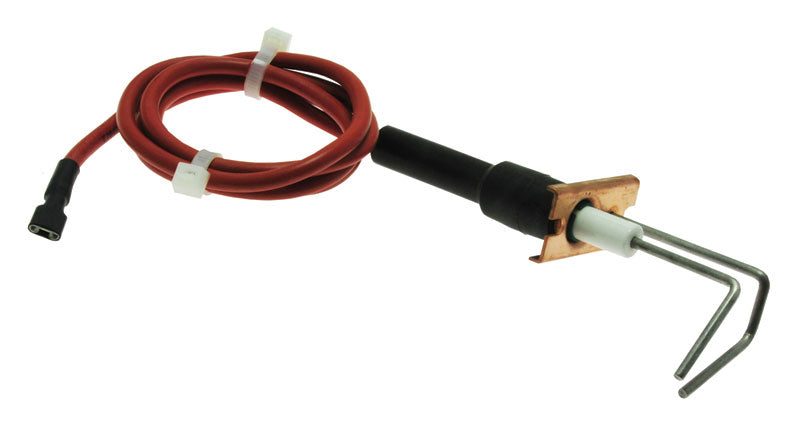

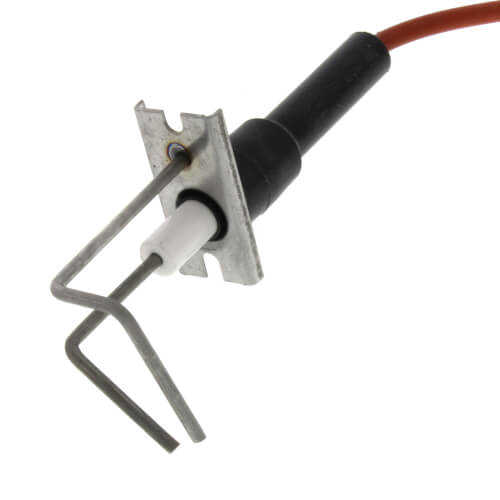

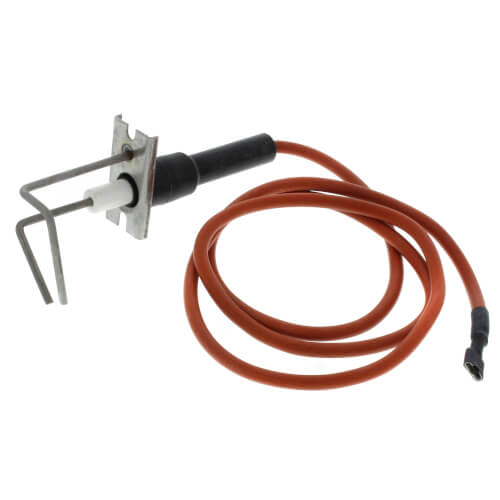

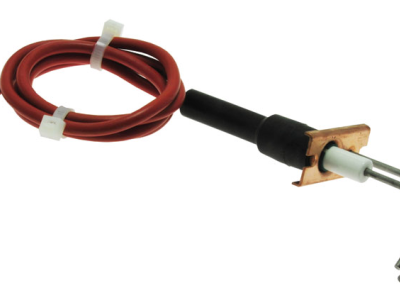

RUUD 62-23556-82 Direct Spark Ignitor

Product Description

The RUUD 62-23556-82 is a direct spark ignitor engineered for Rheem HVAC systems. It uses a Kanthal element to produce ignition sparks. This ignitor has specific mounting dimensions and electrode placements designed for optimal performance.

• OEM part for Rheem HVAC equipment
• Utilizes Kanthal element for reliable ignition
• Includes a quick connect wire termination

Product Highlights

Essential for efficient HVAC operation, the RUUD ignitor ensures effective ignition and system functionality.

Product Information

Standard Information

• Brand: RUUD
• MPN: 62-23556-82

Technical Specifications

• Element Material: Kanthal
• Length - Mounting Flange to Ignitor Tip: 1-15/16 inches
• Length - Spark Electrode Offset: 1-1/8 inches
• Angle - Spark Electrode Offset: 90 degrees
• Length - Ground Electrode Offset: 1-1/4 inches
• Angle - Ground Electrode Offset: 90 degrees
• Spark Gap: 5/32 inches
• Wire Length: 35 inches

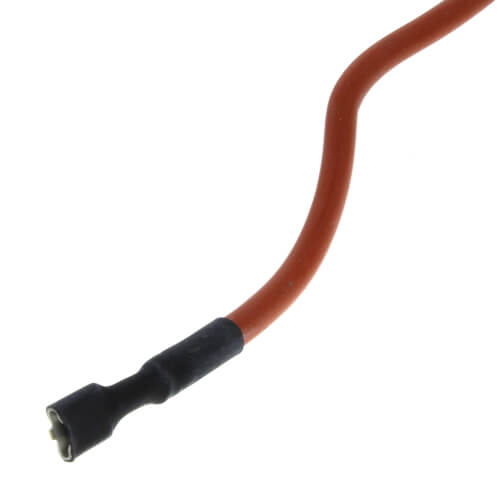

• Termination: 1/4 inch Quick Connect
• Approximate Height: 2.05 inches
• Approximate Length: 5.40 inches
• Approximate Weight: 0.21 pounds
• Approximate Width: 3.10 inches
