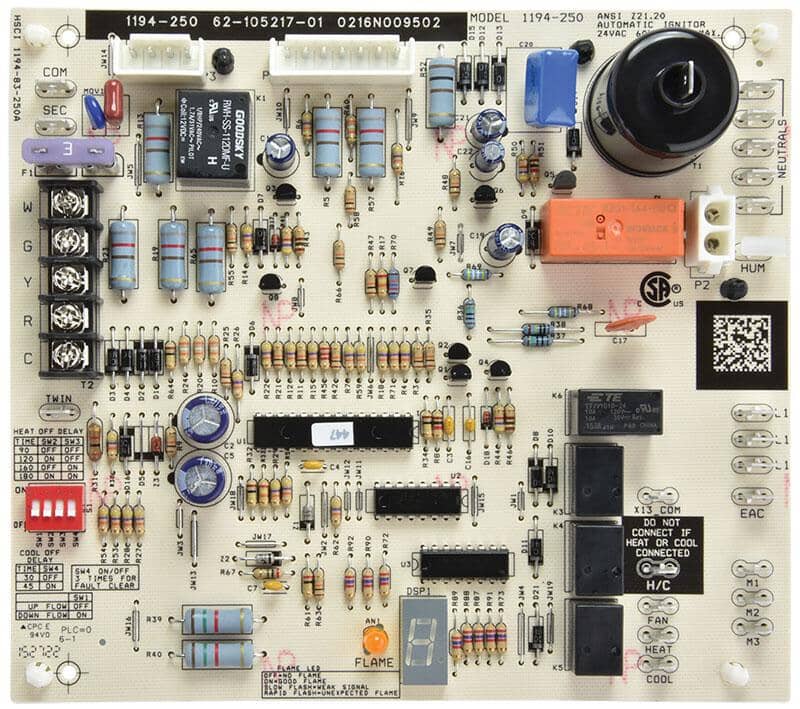

Ruud 62-105217-01 Integrated Furnace Control

Product Description

The RUUD 62-105217-01 is a genuine OEM integrated furnace control board designed to manage ignition sequencing, blower motor operation, and safety circuit monitoring in gas furnace systems. This control board serves as the central logic component of the furnace, coordinating the interaction between the thermostat signal, inducer motor, igniter, gas valve, and limit switches. It is a direct replacement part intended for installation by licensed HVAC technicians performing furnace repairs or system restorations. The OEM designation ensures the board meets original factory electrical and timing specifications.

This integrated furnace control board is used in residential gas furnace applications where the original control board has failed due to component burnout, error lockout, or age-related degradation. It is suited for systems requiring an OEM-equivalent replacement rather than an aftermarket substitute. Technicians typically encounter this part during no-heat service calls where diagnostics have isolated the control board as the root cause of furnace failure.

Key Features

• Genuine OEM replacement part sourced directly from RUUD
• Manages ignition sequencing and blower motor staging
• Monitors safety circuits including limit switches and pressure switches
• Coordinates communication between thermostat inputs and furnace components
• OEM specifications ensure compatibility with original wiring harness and mounting points

Compatibility

Designed as an OEM-style replacement integrated furnace control board for RUUD residential gas furnace systems. Refer to the furnace unit nameplate and RUUD service documentation to confirm fitment before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the furnace at the disconnect switch and set the thermostat to the off position before removing the existing control board. Follow NFPA 54 and local mechanical code requirements when servicing gas appliances. Transfer all wiring connections carefully from the old board to the replacement, and verify all harness connectors are fully seated before restoring power.

Technical Specifications

• Part Type: Integrated Furnace Control Board
• OEM Status: Genuine OEM Replacement Part

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 62-105217-01
