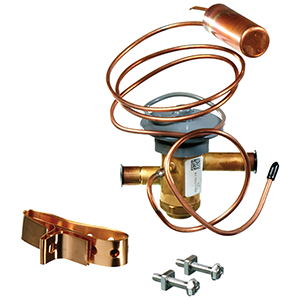

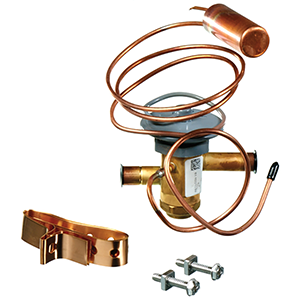

Ruud 61-105087-03 Thermal Expansion Valve 2 Ton Txv

Product Description

The RUUD 61-105087-03 is a 2-ton thermal expansion valve (TXV) designed for R-410A air handler systems. The TXV meters refrigerant flow into the evaporator coil, maintaining the correct superheat level across varying load conditions. This precise metering action protects the compressor from liquid slugging and keeps the system operating at rated efficiency. Sized for 2-ton capacity and matched to R-410A refrigerant, this valve is an OEM-specification replacement installed by licensed HVAC technicians during system service or coil replacement.

This valve is used in residential air handler installations where precise refrigerant metering is required at the evaporator coil. It is specified for use in RUUD air handler units including RCF-2417MTAMCA, RCF-2417MTAVUA, RCF-2421MTAMCA, RCF-2421MTAVUA, and RCH-2421MTAMUA. These are split-system air handlers typically installed in residential applications and paired with a matched outdoor condensing unit.

Key Features

• Rated for 2-ton capacity systems using R-410A refrigerant
• OEM-specification TXV for precise superheat control at the evaporator coil
• Direct replacement for RUUD air handler models RCF-2417MTAMCA, RCF-2417MTAVUA, RCF-2421MTAMCA, RCF-2421MTAVUA, and RCH-2421MTAMUA
• Compact dimensions support installation in tight air handler coil sections
• Weighs 1.8 pounds for easy handling during service

Compatibility

Designed as a direct OEM replacement for RUUD air handlers RCF-2417MTAMCA, RCF-2417MTAVUA, RCF-2421MTAMCA, RCF-2421MTAVUA, and RCH-2421MTAMUA.

Installation Notes

TXV replacement is performed by EPA Section 608 certified HVAC technicians. Recover all refrigerant from the system before opening any refrigerant circuits. The valve body and sensing bulb must be properly positioned and secured per the air handler service manual to ensure accurate superheat sensing. Leak-test all brazed or flared connections before recharging the system.

Technical Specifications

• Refrigerant: R-410A
• Capacity: 2 Ton
• Height: 4.5 inches
• Width: 4.5 inches
• Length: 25.0 inches
• Weight: 1.8 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 61-105087-03
