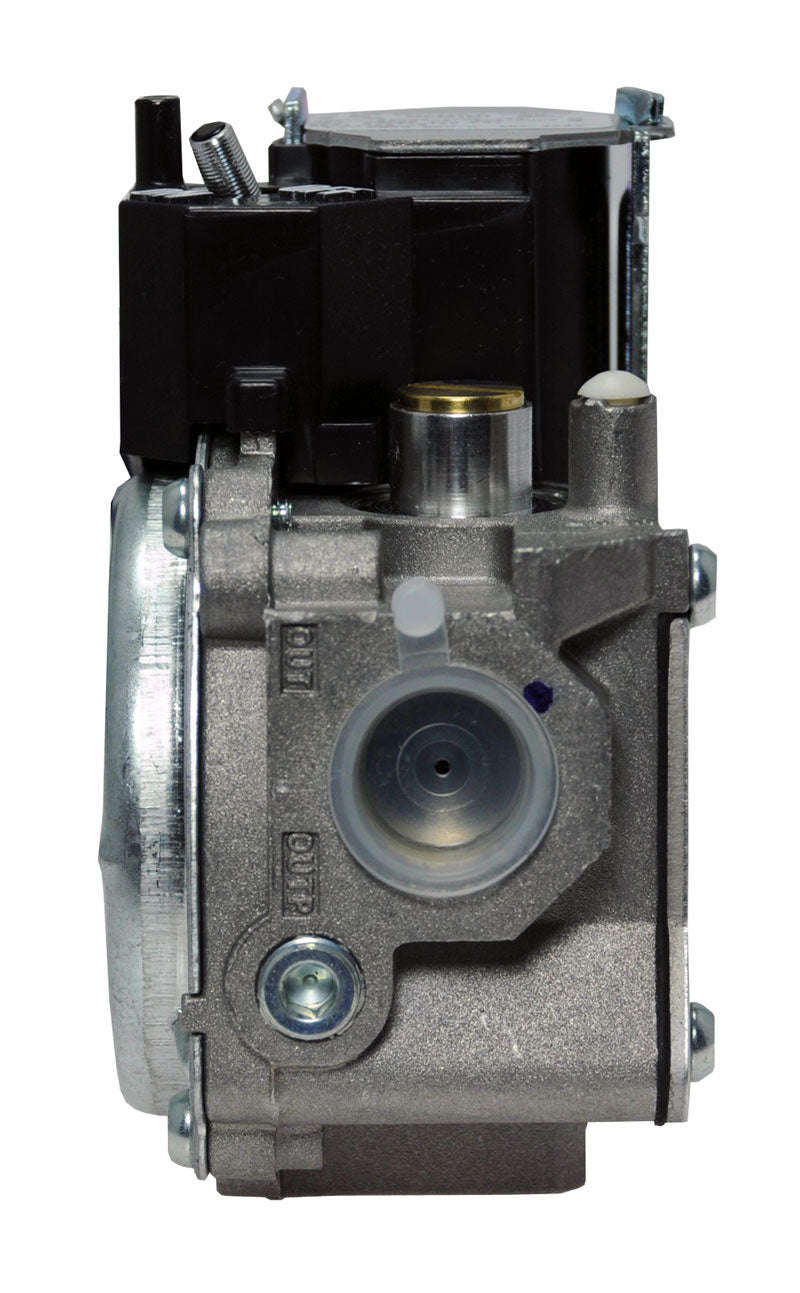

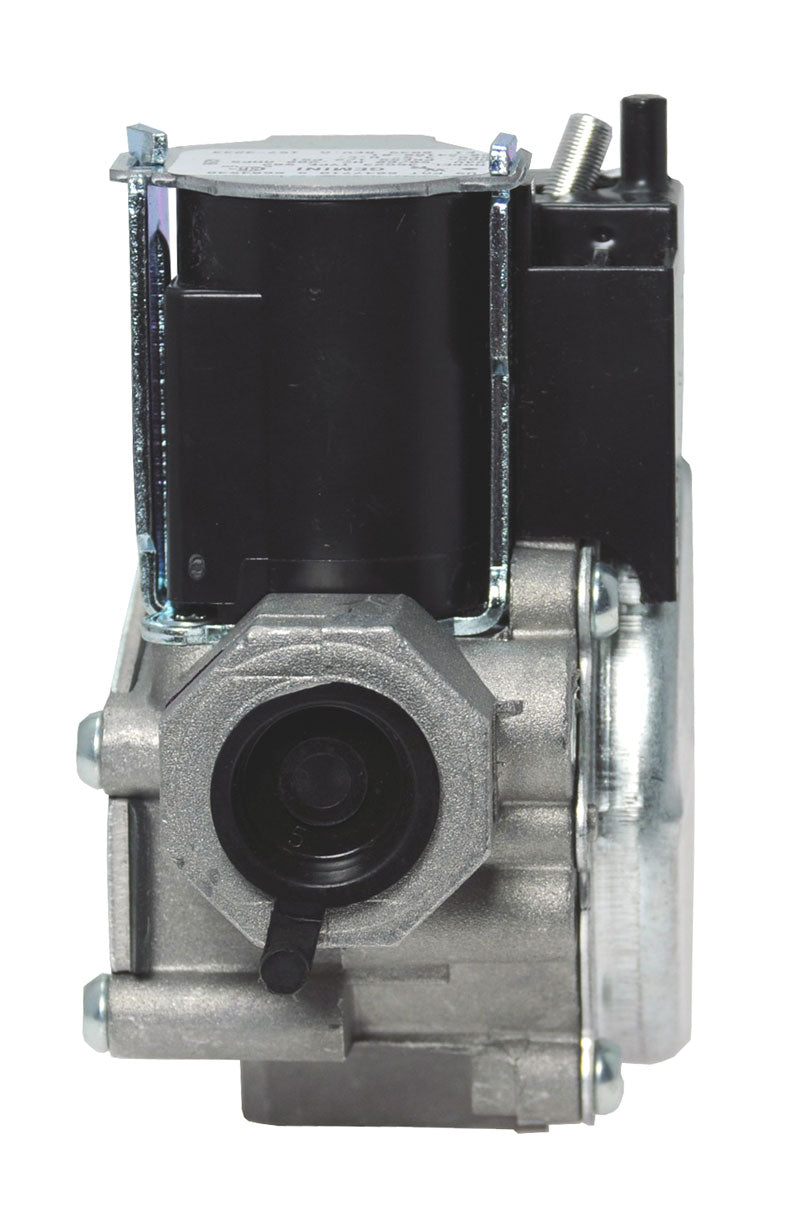

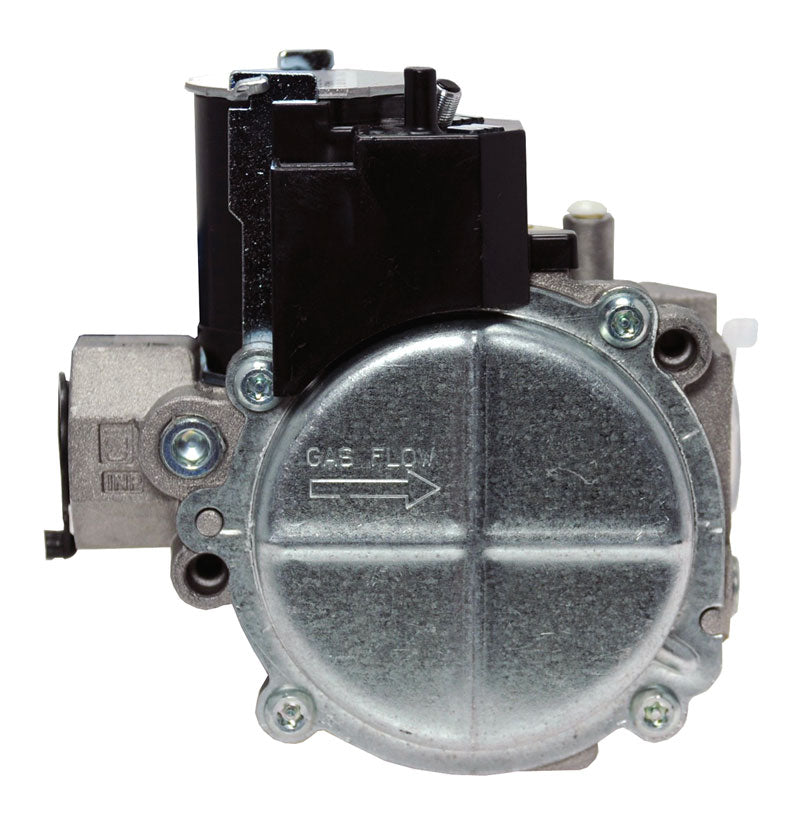

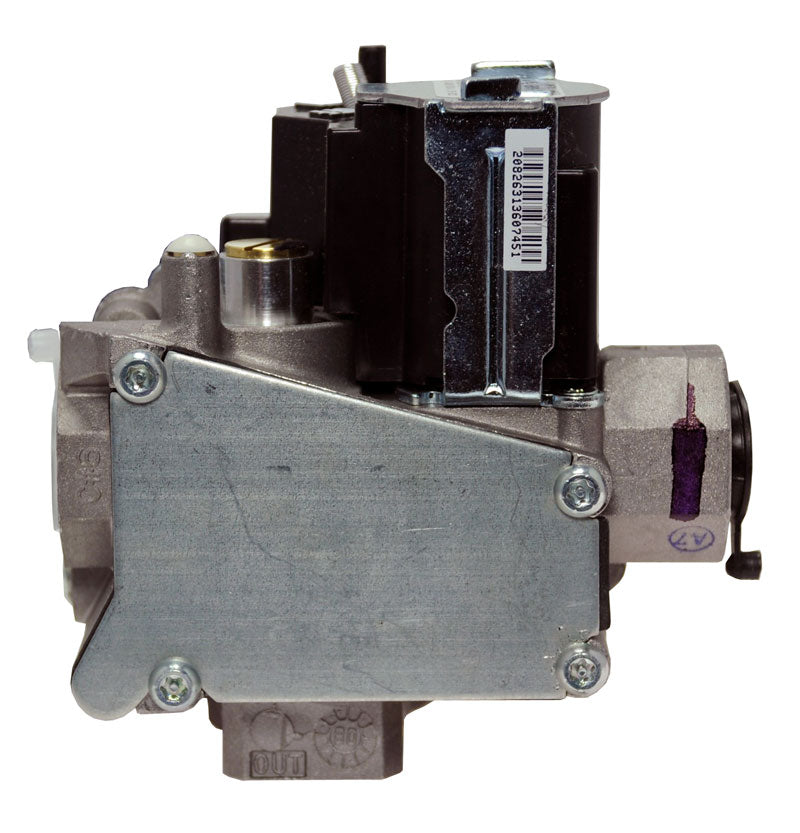

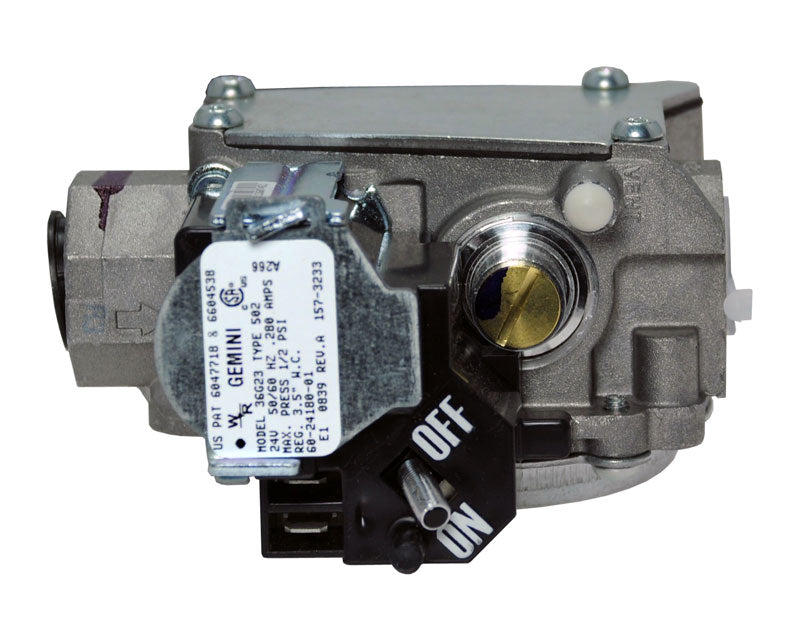

RUUD 60-24180-81 Natural Gas Valve

Product Description

The RUUD 60-24180-81 is a natural gas valve suitable for hot surface ignition and direct spark ignition systems. It connects using a half-inch by half-inch pipe size and operates on a twenty-four volt AC power supply at fifty or sixty hertz. This single-stage valve allows a maximum capacity of one hundred forty thousand BTU per hour when subjected to a pressure drop of one inch water column.

• Fuel Type: Natural Gas
• Pipe Size: 1/2 inch x 1/2 inch
• Application: HSI/DSI

Product Highlights

This valve is essential for maintaining effective gas supply in heating applications.

Product Information

Standard Information

• Manufacturer Part Number: 60-24180-81
• Application: HSI/DSI

Technical Specifications

• Input Voltage: 24 Vac 50/60Hz
• Opening Style: Single Stage
• Pipe Size: 1/2 inch x 1/2 inch
• Flow Direction: Straight Through
• Fuel Type: Natural Gas
• Capacity (BTU/HR @ 1 in. W.C. Pressure Drop): 140,000
• Valve Body Length: 4 inches
• Valve Body Width: 2.4375 inches
• Valve Body Height: 4.25 inches
