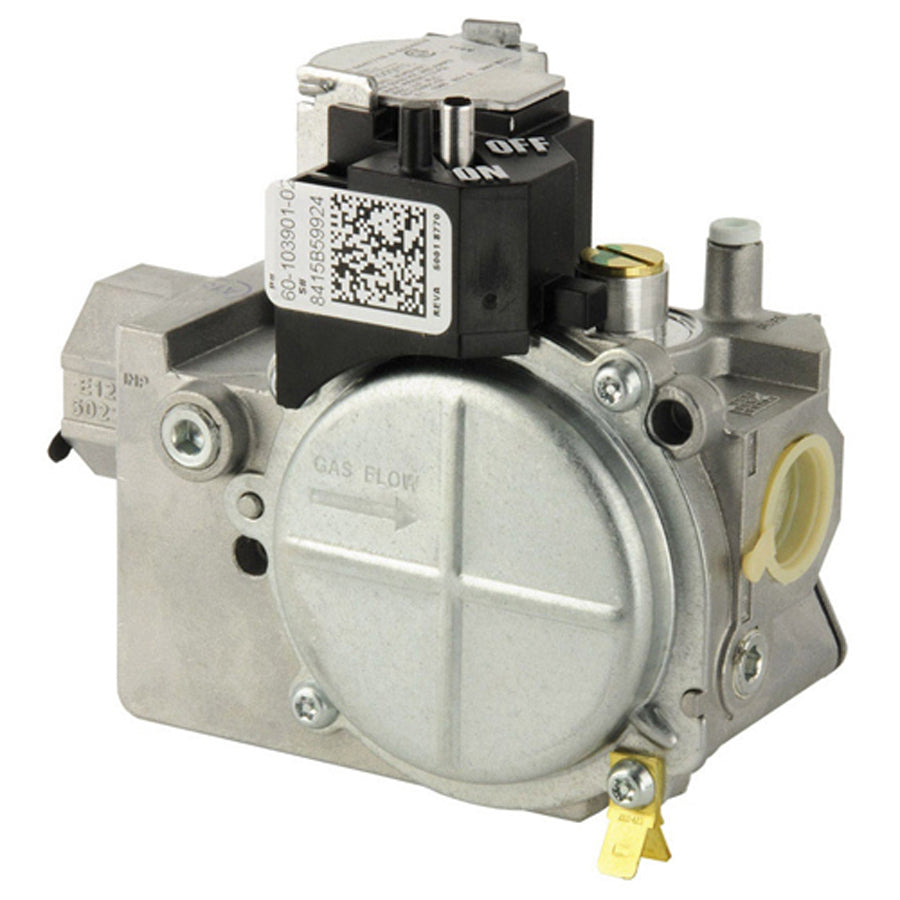

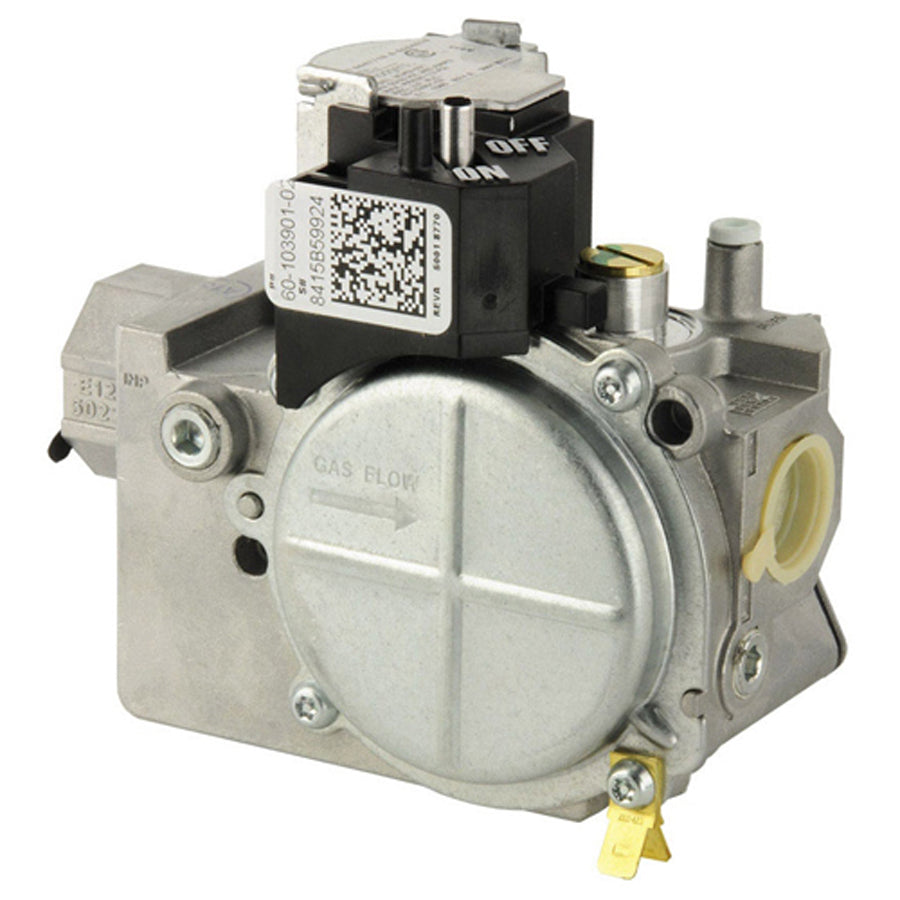

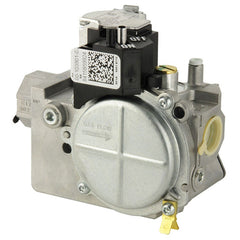

Ruud 60-103901-02 Gas Valve 140000 Btu/h 1-stage Natural Gas

Product Description

The RUUD 60-103901-02 is a single-stage natural gas valve designed for use in residential gas furnaces equipped with hot surface ignition (HSI) or direct spark ignition (DSI) systems. Rated at 140,000 BTU/h, this valve controls gas flow to the burner assembly and is a direct OEM replacement for the specified RUUD furnace models. It measures approximately 4.75 inches tall, 2.375 inches wide, and 4.25 inches in length and weighs 1.89 pounds. Installation is performed by a licensed HVAC technician as part of a furnace repair or component replacement service.

This valve is intended for single-stage natural gas furnace applications in residential settings. It is specifically listed for use on RUUD R801C-ZSA, R801C-MSA, R801P-MSA, R801P-ZSA, R801S-MSA, R801S-ZSA, R801T-ZSA, and R801T-MSA gas furnace models. The HSI/DSI compatibility makes it suitable for modern ignition control configurations found across these furnace families. HVAC technicians servicing any of these models will find this valve a direct drop-in replacement.

Key Features

• Single-stage operation for straightforward on/off gas flow control
• Rated at 140,000 BTU/h for high-capacity residential furnace applications
• Compatible with both hot surface ignition and direct spark ignition systems
• Natural gas configuration — not for propane or LP use
• OEM-spec replacement for multiple RUUD R801 series furnace models

Compatibility

Designed for use on RUUD R801C-ZSA, R801C-MSA, R801P-MSA, R801P-ZSA, R801S-MSA, R801S-ZSA, R801T-ZSA, and R801T-MSA gas furnaces.

Installation Notes

Gas valve replacement must be performed by a licensed HVAC technician in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply and disconnect electrical power to the furnace before beginning any service work. Verify gas type compatibility before installation — this valve is rated for natural gas only. After installation, perform a leak test at all fittings using an approved leak detection solution before restoring power and gas.

Technical Specifications

• Capacity: 140,000 BTU/h
• Gas Type: Natural Gas
• Stages: 1-Stage
• Ignition Type: Hot Surface Ignition (HSI) / Direct Spark Ignition (DSI)
• Height: 4.3 inches
• Length: 7.05 inches
• Width: 6.4 inches
• Weight: 1.89 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 60-103901-02
