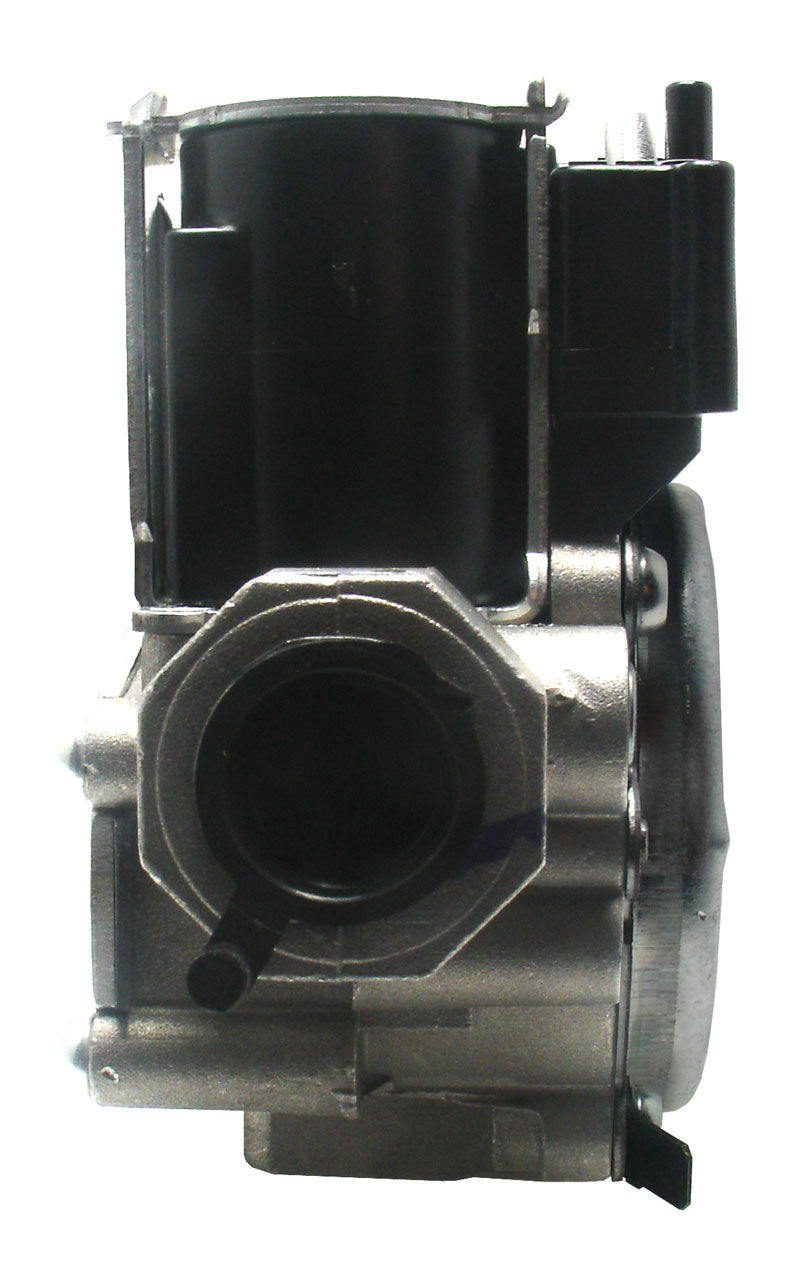

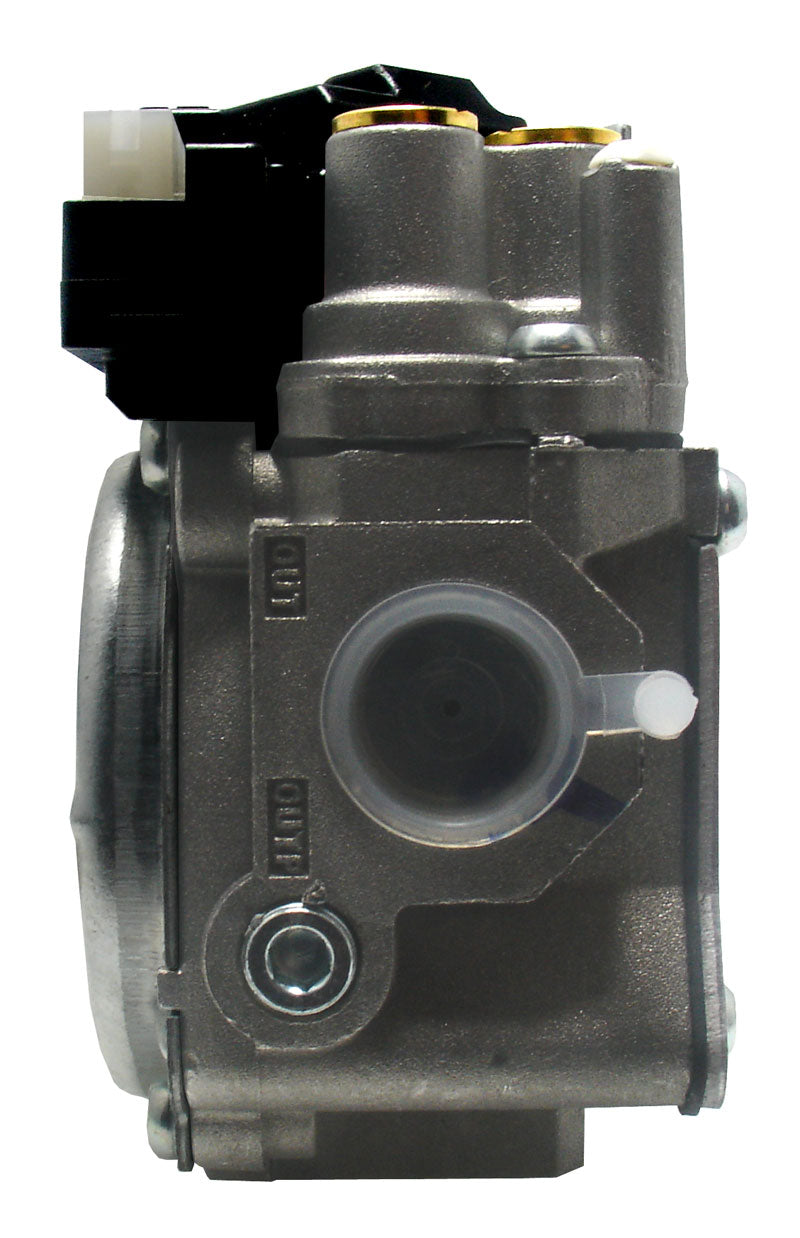

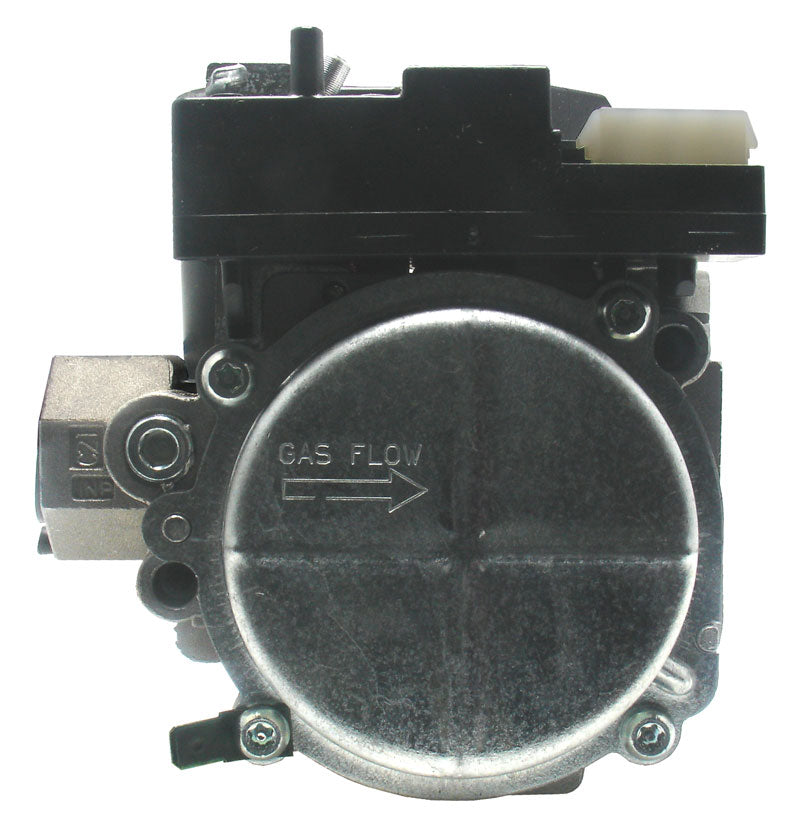

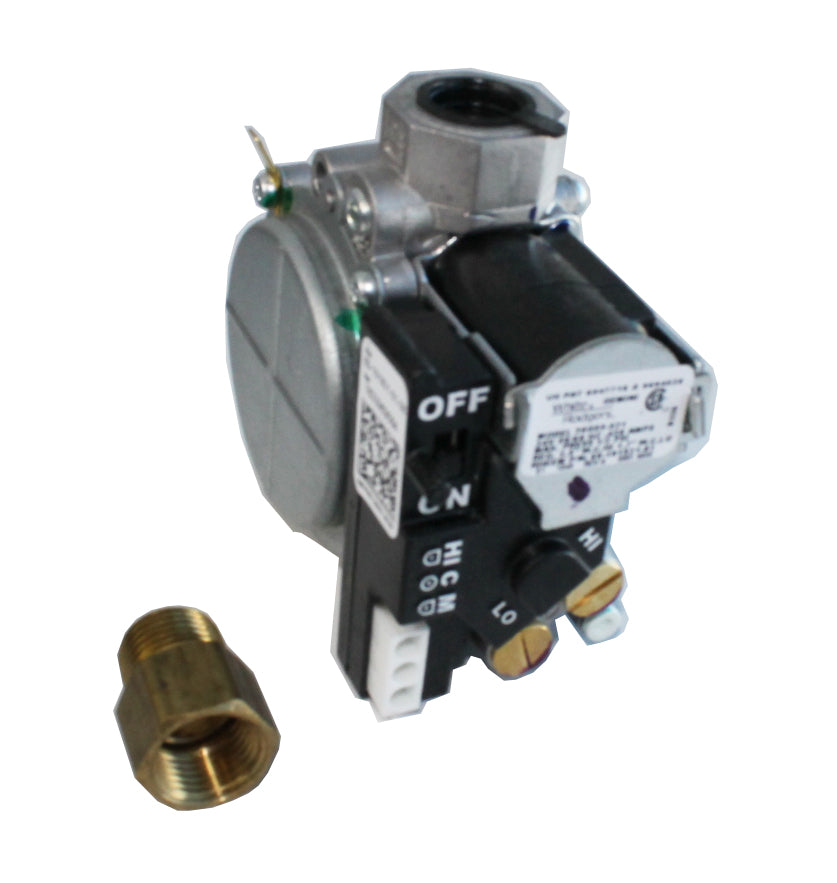

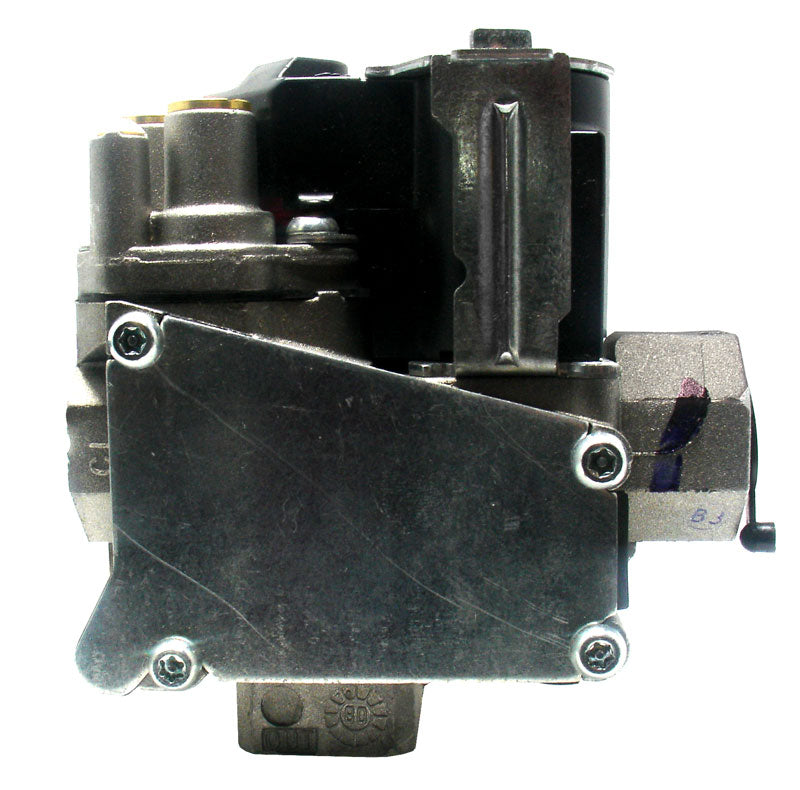

RUUD 60-101921-81 Natural Gas Valve

Product Description

The RUUD 60-101921-81 is a natural gas valve suitable for heating systems. It is designed for Hot Surface Ignition (HSI) and Direct Spark Ignition (DSI) applications. The valve features a two-stage opening style and supports straight-through flow direction. Its capacity is one hundred forty thousand BTU per hour at one inch of water column pressure drop.

• Designed for HSI and DSI systems
• Compatible with natural gas fuel
• Two-stage opening style

Product Highlights

This gas valve is critical for efficient heating operation.

Product Information

Standard Information

• Brand: RUUD
• MPN: 60-101921-81

Technical Specifications

• Application: HSI/DSI
• Input Voltage: 24 Vac 50/60Hz
• Opening Style: Two-stage
• Pipe Size: One half inch by one half inch
• Flow Direction: Straight through
• Fuel Type: Natural gas
• LP Conversion Kit Included: No
• LP Spring Kit: 60-21193-06
• Natural Gas Spring Kit: 607018
• Capacity (BTU/HR @ 1 in. W.C. Pressure Drop): 140,000
• Valve Body Length: Four inches
• Valve Body Width: Two and seven sixteenths inches
• Valve Body Height: Four and one fourth inches
• Approximate Height: Four point thirty-five inches
• Approximate Length: Seven point zero five inches
• Approximate Weight: One point nine zero pounds
• Approximate Width: Six point four zero inches
