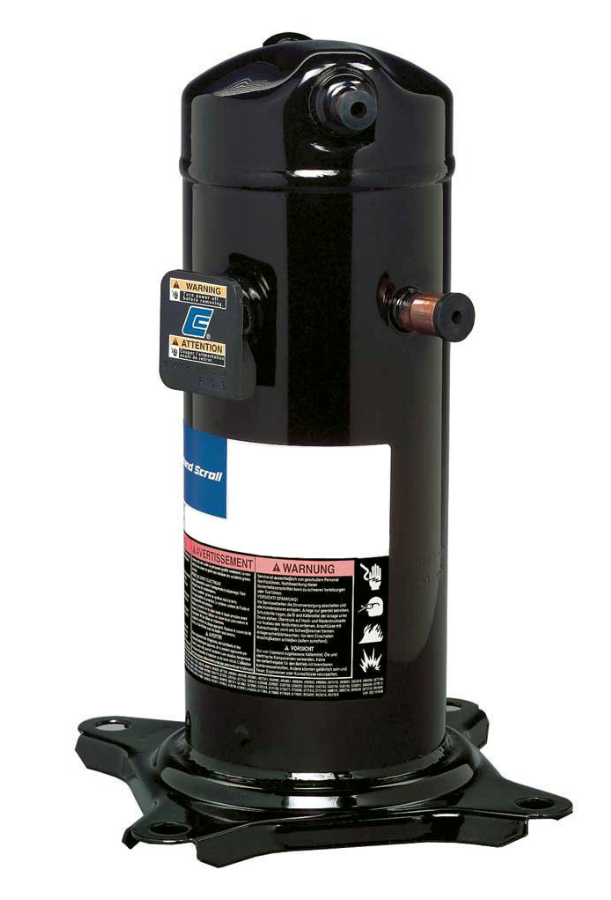

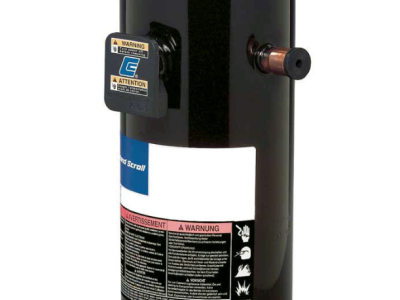

RUUD 55-23155-02S AC Compressor - 1.5 Ton Scroll

Product Description

The RUUD 55-23155-02S is a 1.5-ton AC compressor suitable for both residential and commercial air conditioning systems. It serves as a direct factory replacement for Copeland scroll compressors. This unit operates at 208/220 Volts 1-Phase power and has a cooling capacity of 18,000 BTU.

• Suction and discharge line connections included
• Engineered for efficient refrigerant circulation
• Designed for long-term reliability and efficiency

Product Highlights

The RUUD 55-23155-02S is a reliable choice for upgrading or replacing your air conditioning compressor.

Product Information

Standard Information

• Brand: RUUD
• MPN: 55-23155-02S

Technical Specifications

• Capacity (BTU/HR): 18000
• Compressor Type: Scroll
• Refrigerant: R-22
• Input Voltage: 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Run Capacitor: 30/370 uF/V
• Rated Load Current: 10.7 A
• Maximum Continuous Current: 15.0 A
• Locked Rotor Current: 55.0 A
• Overall Compressor Height: 15-5/16 in.
• Mounting Base Dimensions: 7-1/2 x 7-1/2 in.
• Weight: 43.00 lb
• Width: 9.30 in.
• Length: 9.30 in.
