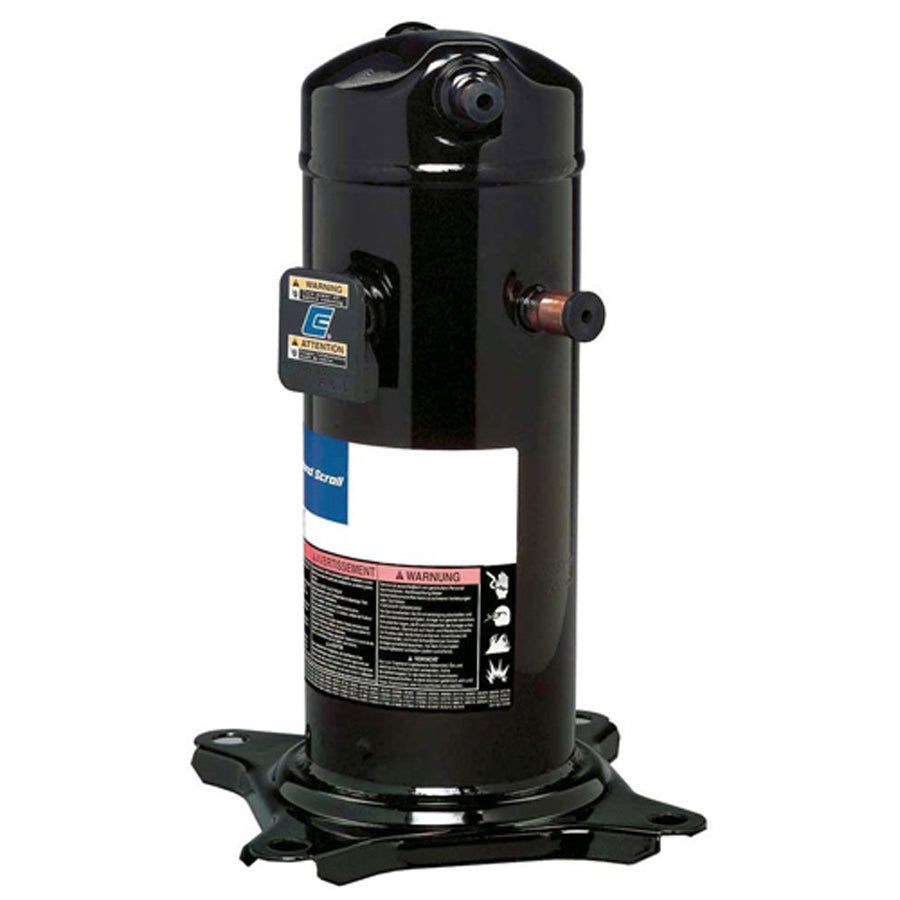

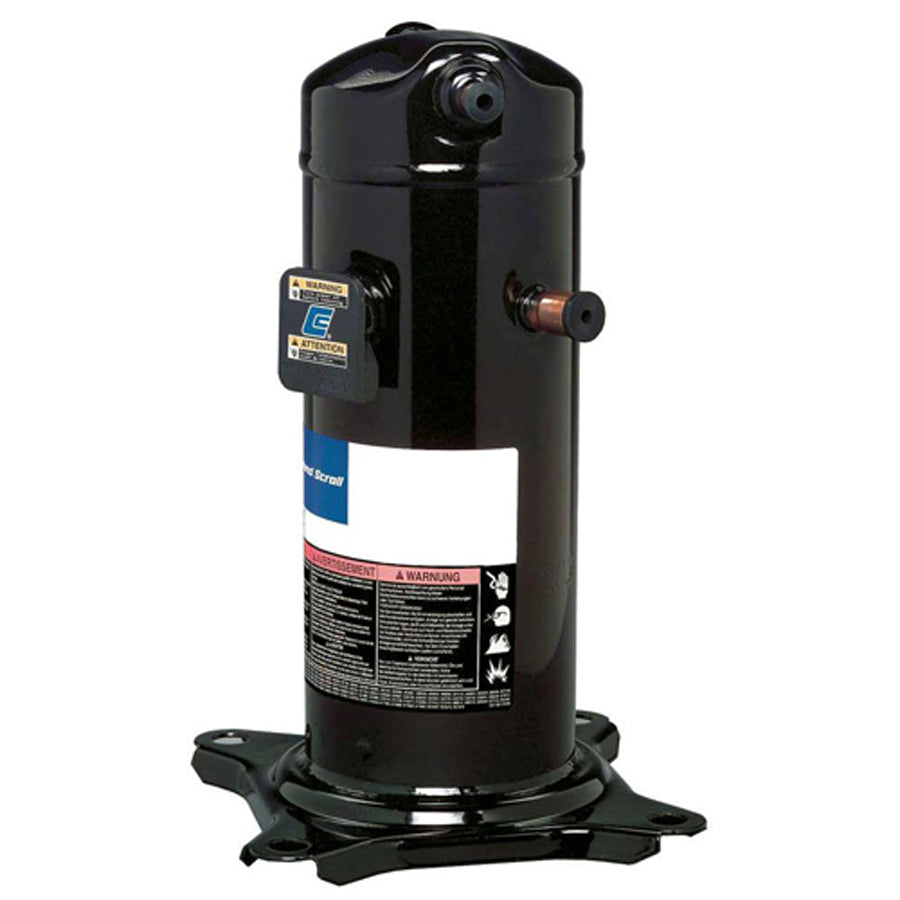

Ruud 55-102045-24S Scroll Compressor 20000 Btu/h R-410A

Product Description

The RUUD 55-102045-24S is a Copeland scroll compressor designed for residential and light commercial air conditioning systems. Rated at 20000 BTU/h, it operates on 208/230 VAC, 60 Hz, single-phase power with a running load amperage (RLA) of 13.5 amps and a locked rotor amperage (LRA) of 58.3 amps. This compressor uses R-410A refrigerant and stands 15.375 inches tall, making it a direct-fit OEM replacement for the listed RUUD and compatible unit families. Licensed HVAC technicians perform installation as part of a compressor swap or system rebuild.

This scroll compressor is used in residential split-system air conditioners where R-410A is the specified refrigerant. It is a factory-authorized replacement for RUUD and associated product families including SAGN, RAPL, RAPM, RPQL, SSPM, 13AJM, 13AJN, 14AJL, 14AJM, 15PJL, and RQNM air conditioner models. Scroll compressor design provides quieter operation and greater efficiency compared to reciprocating designs, and is standard in modern residential cooling equipment.

Key Features

• Copeland scroll compressor technology for reliable, efficient compression
• Rated at 20000 BTU/h cooling capacity
• Compatible with R-410A refrigerant systems
• Single-phase, 208/230 VAC, 60 Hz operation suits standard residential electrical supply
• 13.5 A RLA and 58.3 A LRA for proper circuit sizing and breaker selection
• OEM-style replacement for multiple RUUD air conditioner model families

Compatibility

Direct OEM-style replacement for RUUD air conditioner models in the following families: SAGN, RAPL, RAPM, RPQL, SSPM, 13AJM, 13AJN, 14AJL, 14AJM, 15PJL, and RQNM.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician. Recover all refrigerant from the system before disconnecting the compressor. Disconnect and lock out electrical power at the disconnect before beginning any work. Follow the system manufacturer service instructions for proper refrigerant charge, oil type, and suction and liquid line handling to avoid introducing contaminants or moisture into the system.

Technical Specifications

• Compressor Type: Scroll (Copeland)
• Cooling Capacity: 20000 BTU/h
• Voltage: 208/230 VAC
• Frequency: 60 Hz
• Phase: 1-Phase
• Running Load Amperage (RLA): 13.5 amps
• Locked Rotor Amperage (LRA): 58.3 amps
• Refrigerant: R-410A
• Height: 15.375 inches
• Length: 14.5 inches
• Width: 13.25 inches
• Weight: 53.0 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 55-102045-24S
