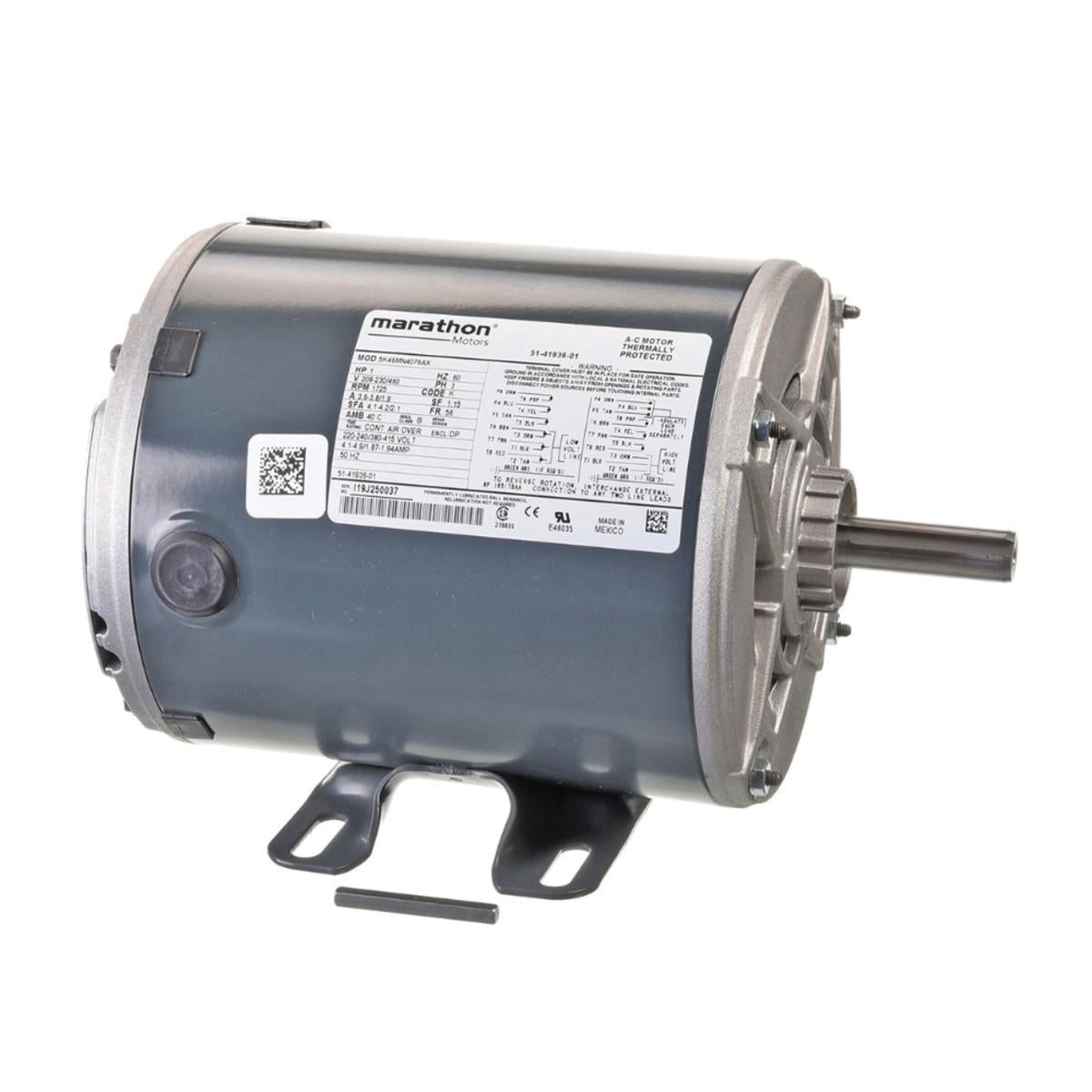

RUUD 51-42536-01 OEM Platform-Mount 3-Phase Blower Motor

Product Description

The RUUD 51-42536-01 is a two horsepower three-phase blower motor made for platform mounting. It runs at 1725 RPM and works effectively in belt drive setups. This motor is built with ball bearings and can rotate in both directions. It operates on multiple voltage levels: 208-220, 230, 380-415, and 460V at either 50 or 60 Hz. This unit serves as an OEM replacement and might fit other applications with needed modifications.

• Designed for platform mounting.
• Features ball bearings and reversible rotation.
• Suitable for belt drive applications.

Product Highlights

This motor is essential for reliable operation in HVAC systems and industrial applications requiring consistent airflow.

Product Information

Standard Information

• Manufacturer Part Number: 51-42536-01
• Power: 2 hp

Technical Specifications

• Input Voltage: 208-220/230/380-415/460V
• Frequency: 50/60 Hz
• Phase: Three
• Speed: 1
• RPM: 1725
• Rotation: Reversible
• Bearing Type: Ball
• Mounting Type: Platform
• Drive Type: Belt
• Frame Size: 56Y
• Shaft Size: 7/8 inches Diameter x 2-3/8 inches Length
• Dimensions: 6-7/16 inches Diameter x 13-9/16 inches Length
• Amperage Rating: 7.5 A at 230 VAC / 3.4 A at 460 VAC Full Load / 28 A at 460 VAC Rated Load
