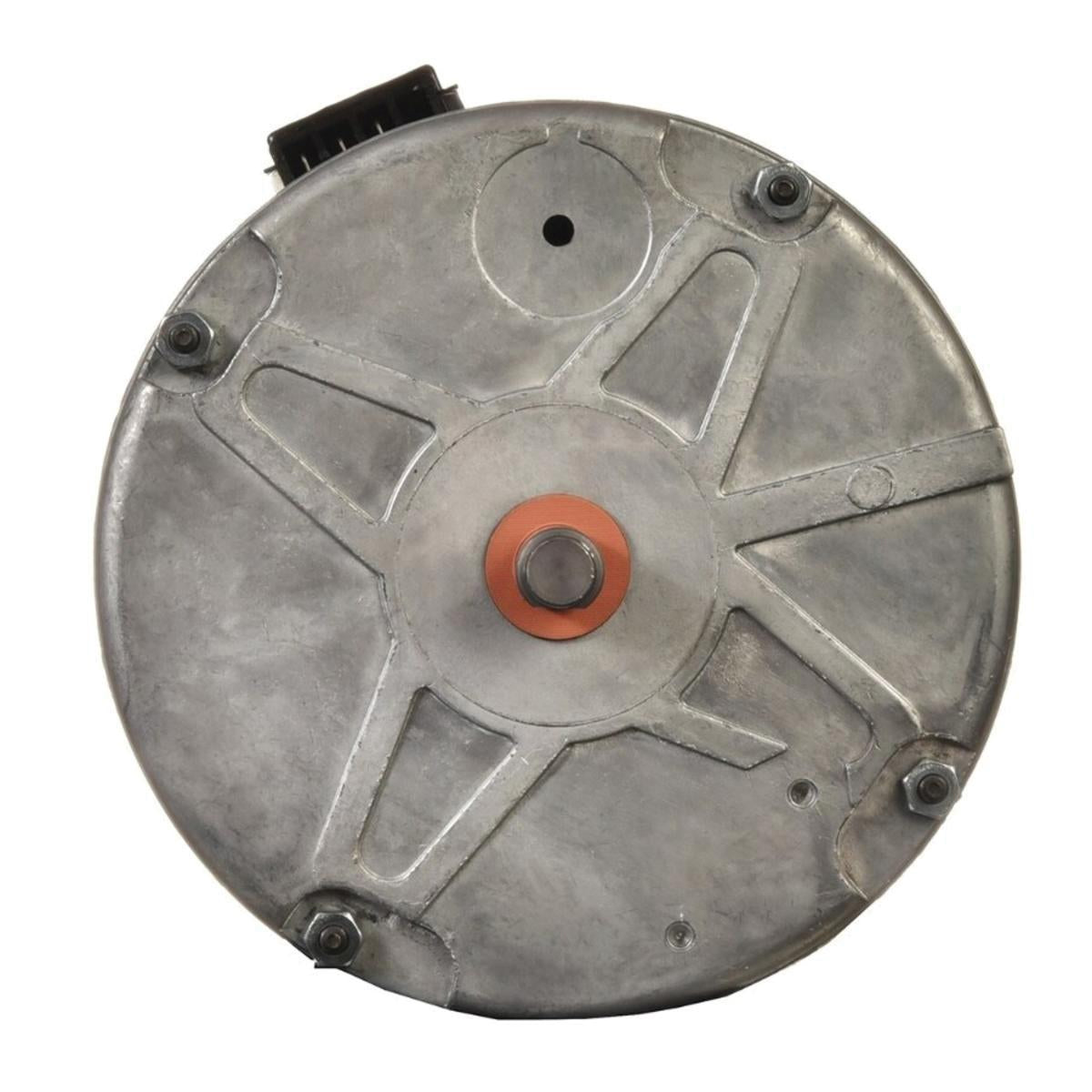

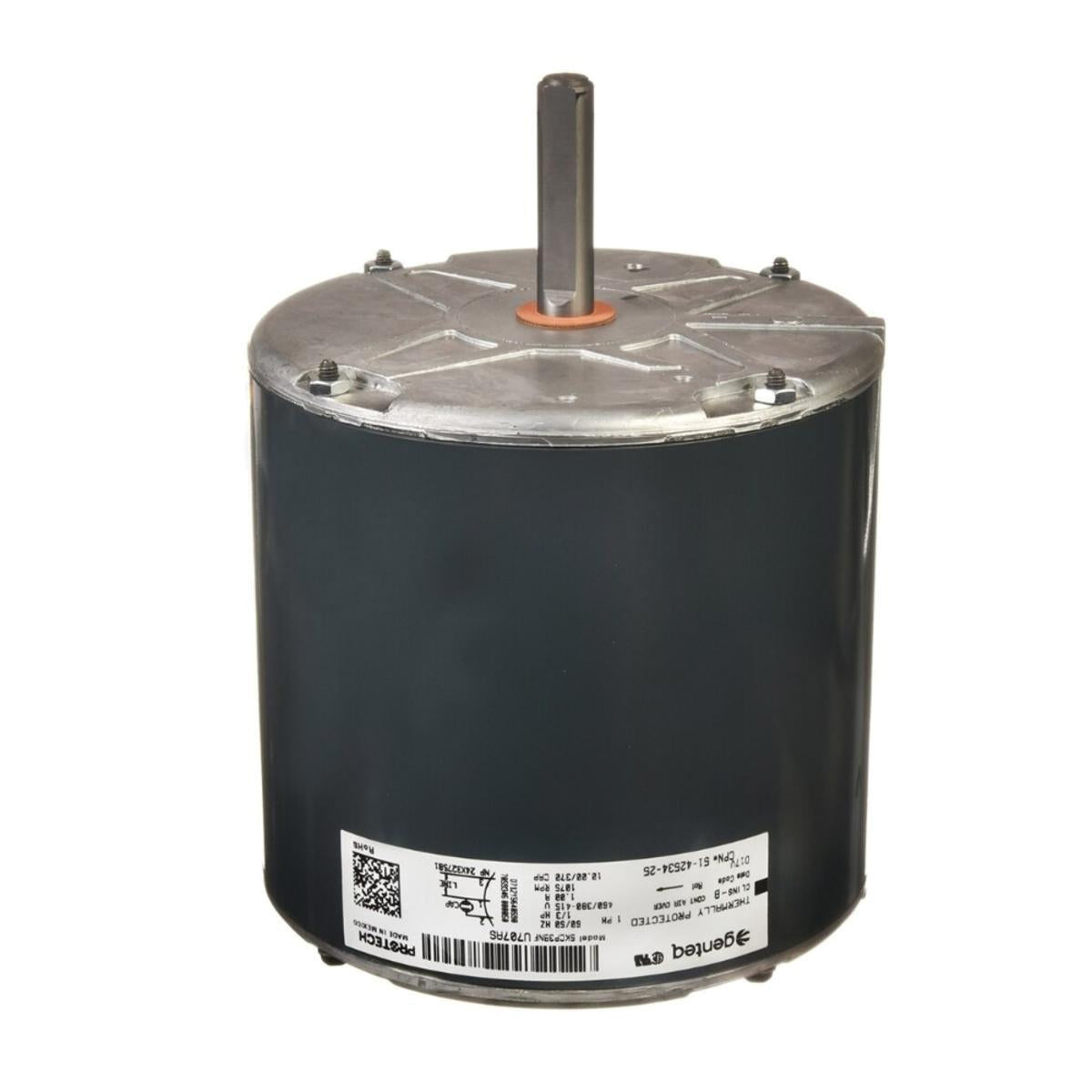

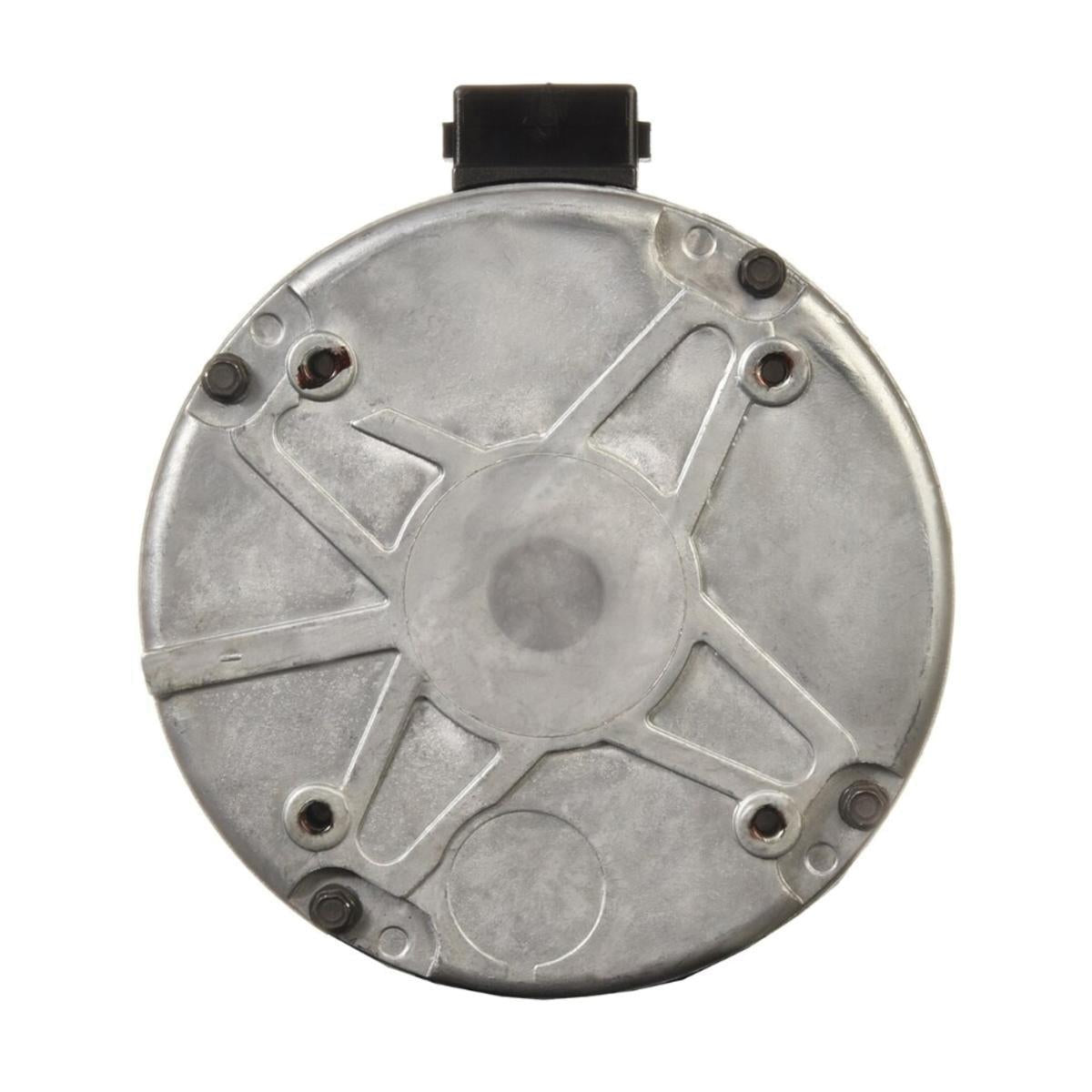

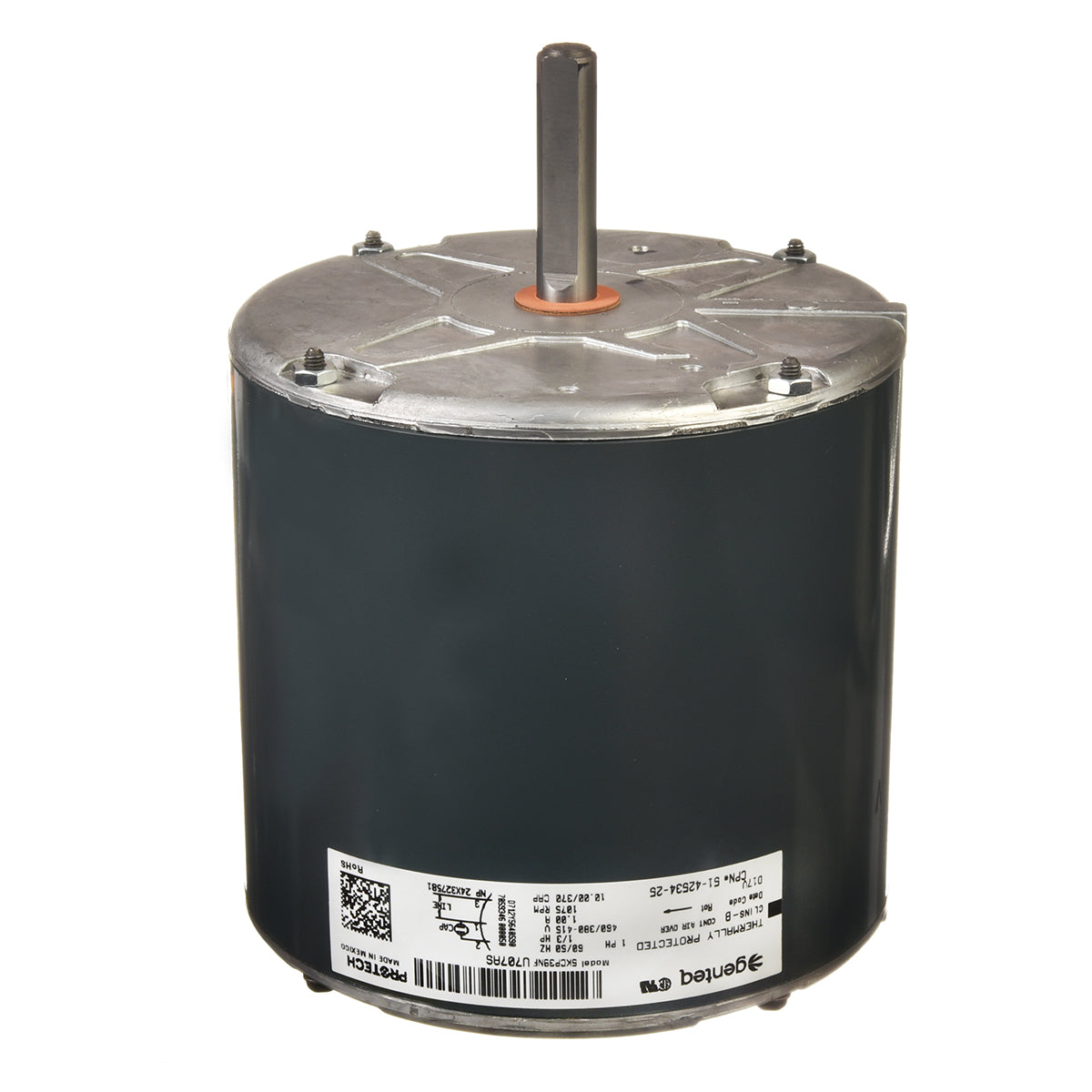

RUUD 51-42534-25 Condenser Motor 1/3 HP 48

Product Description

The RUUD 51-42534-25 is a condenser motor with a power rating of 1/3 horsepower. It operates at a speed of 1075 RPM, suitable for various applications. This motor is compatible with 380-415V or 460V single-phase power supplies, functioning efficiently at both 50 Hz and 60 Hz. The motor has a frame size of 48 and features a shaft diameter of 1/2 inch. It rotates counter-clockwise when viewed from the shaft end.

• Power: 1/3 horsepower
• Speed: 1075 RPM
• Voltage: 380-415V or 460V single-phase

Product Highlights

The RUUD 51-42534-25 condenser motor is designed for durability and reliable performance in various cooling applications.

Product Information

Standard Information

• Brand: RUUD
• Application: Condenser

Technical Specifications

• MPN: 51-42534-25
• Bearing Type: Ball
• Drive Type: Direct Drive
• FLA at 380-415V (A): 1.00
• FLA at 460V (A): 1.00
• Frame Size: 48
• Frequency: 50 Hz, 60 Hz
• Horsepower: 1/3 hp
• Input Voltage: 380-415 V | 460 V
• Shaft Length (Keyed/Flat): 1-53/64 in
• LRA at 380-415V (A): 1.80
• LRA at 460V (A): 1.80
• Motor Body Diameter: 5-31/64 in
• Motor Body Length: 5-31/64 in
• Mounting Type: End-boss | Shell-band
• Number of Phases: 1
• Number of Speeds: 1
• Overall Motor Length: 7-9/16 in
• Overall Shaft Length: 2-3/32 in
• Rotation Direction (OSE): CCW
• Run Capacitor: 10/370 uF/V
• Shaft Diameter: 1/2 in
