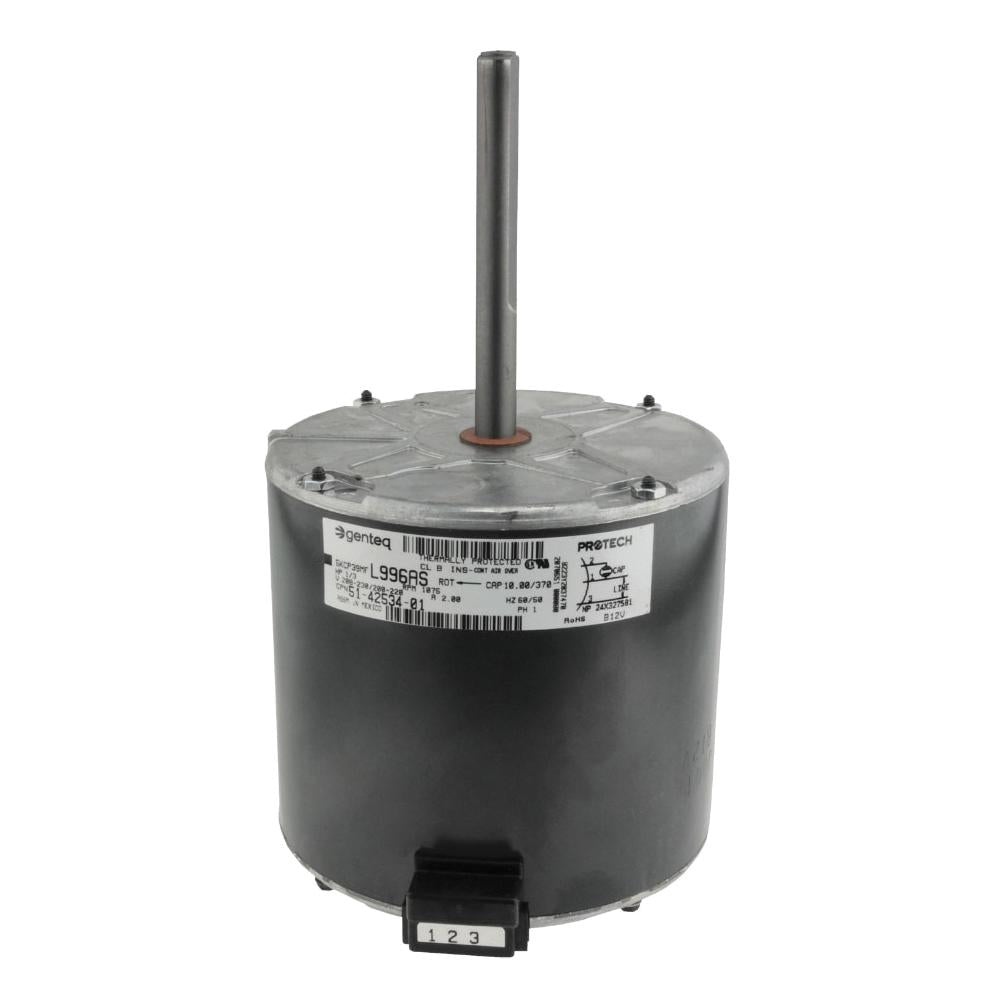

RUUD 51-42534-01 RUUD Condenser Motor 1/3 HP 48 Frame Replacement MPN

Product Description

The RUUD 51-42534-01 is a condenser motor specifically designed for HVAC systems. It operates efficiently on 208, 220, or 230 volts and supports both 50 and 60 Hz power supplies. This motor has a frame size of 48 and runs at a speed of 1075 RPM.

• HP: 1/3
• Rotation: CCW
• Bearing Type: Ball

Product Highlights

This motor is suitable for replacement in condenser units, featuring a direct drive design and a single-phase configuration. The ball bearing design ensures smooth operation, while its compact dimensions allow for easy installation.

Product Information

Standard Information

• Application: Condenser
• Number of Phases: 1

Technical Specifications

• Horsepower: 1/3 hp
• Input Voltage: 208/220/230 V
• FLA at 230V (A): 2.00
• LRA at 230V (A): 3.90
• Overall Motor Length: 9-15/16 in
• Overall Height: 9-15/16 in
• Overall Width: 5-5/8 in
• Motor Body Diameter: 5-5/8 in
• Motor Body Length: 5-1/2 in
• Mounting Type: Shell-band
• Rotation: CCW
• Run Capacitor: 10/370
• Shaft Diameter: 1/2 in
• Overall Shaft Length: 4-1/2 in
• Shaft Size: 1/2 in Dia x 4-1/2 in L
• Speed Rating: 1075 rpm
