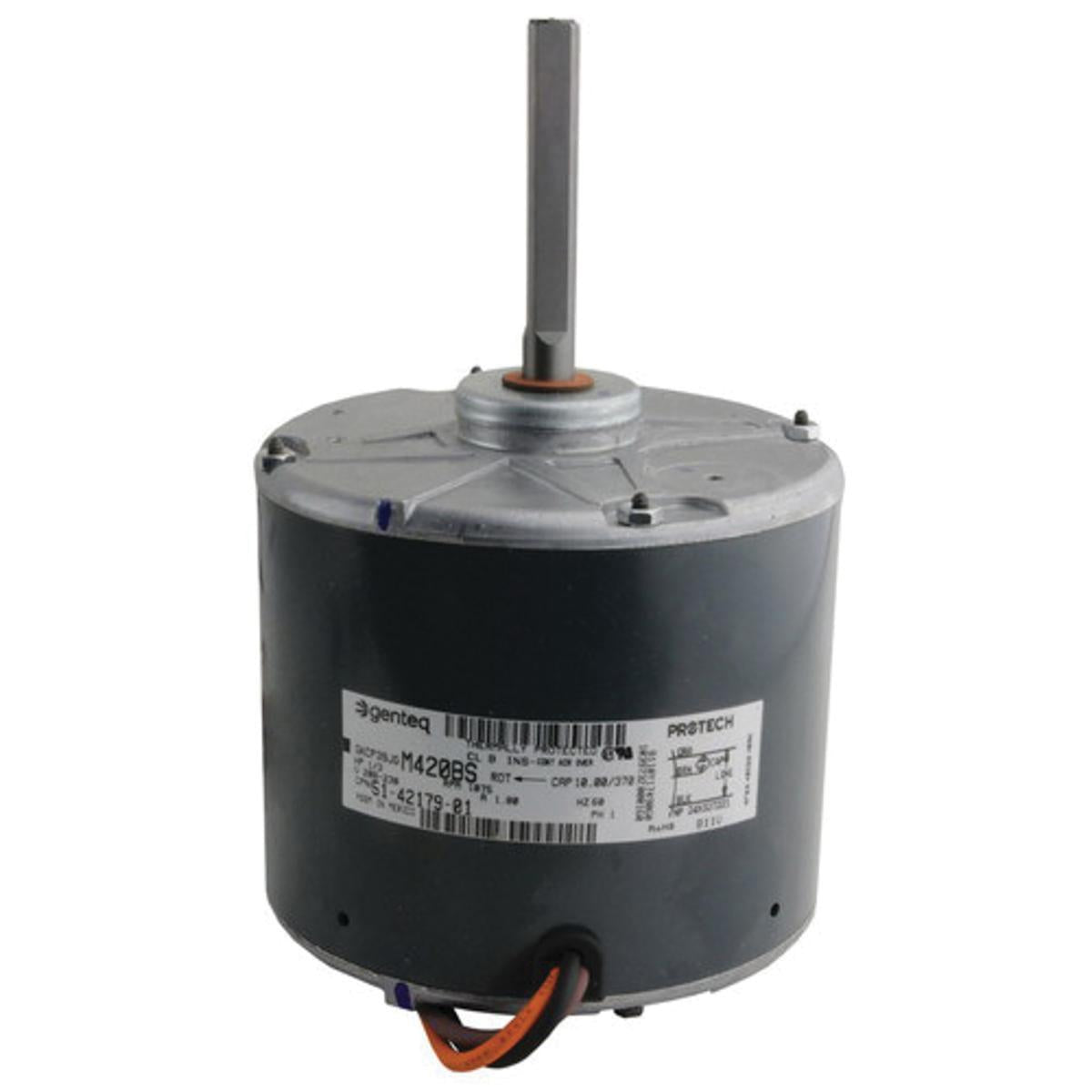

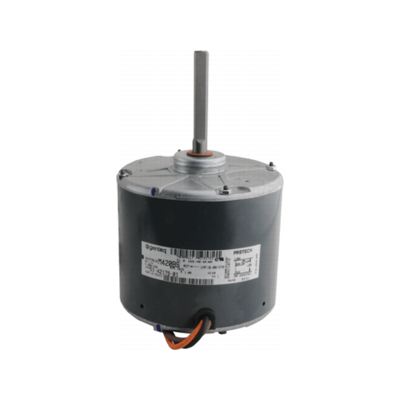

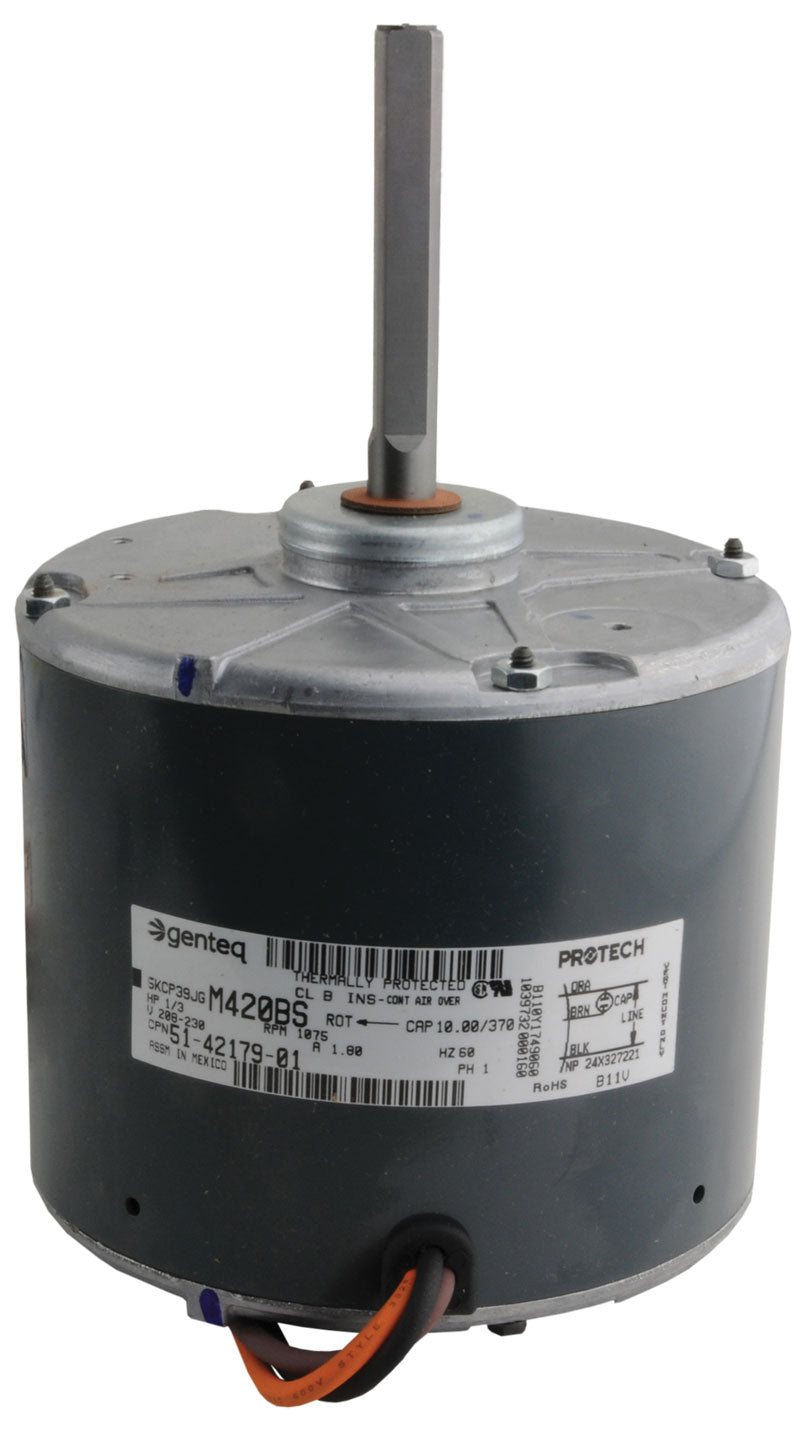

RUUD 51-42179-01 Condenser Fan Motor 1/3 hp (208-230V) Replacement MPN

Product Description

The RUUD 51-42179-01 is a condenser fan motor suited for HVAC systems. It operates effectively at 208 to 230 volts with a current draw of 1.8 amps. This motor features a power rating of one-third horsepower and runs at a speed of 1075 RPM. It is designed to rotate counter-clockwise and uses a sleeve bearing for smooth operation. The motor is compatible with shell band and through-bolt mounting methods, fitting a standard frame size of 48.

• Operates on 208 to 230V with a current draw of 1.8A.
• Rated at 1/3 horsepower with a speed of 1075 RPM.
• Includes sleeve bearing and features counter-clockwise rotation.

Product Highlights

This condenser fan motor is essential for maintaining HVAC systems and ensuring efficient airflow.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-42179-01

Technical Specifications

• Input Voltage: 208 to 230 V
• Output Current: 1.8 A
• Power: 1/3 hp
• Speed: 1075 RPM
• Phase: 1 ph
• Frequency: 60 Hz
• Frame Size: 48
• Drive Type: Direct Drive
