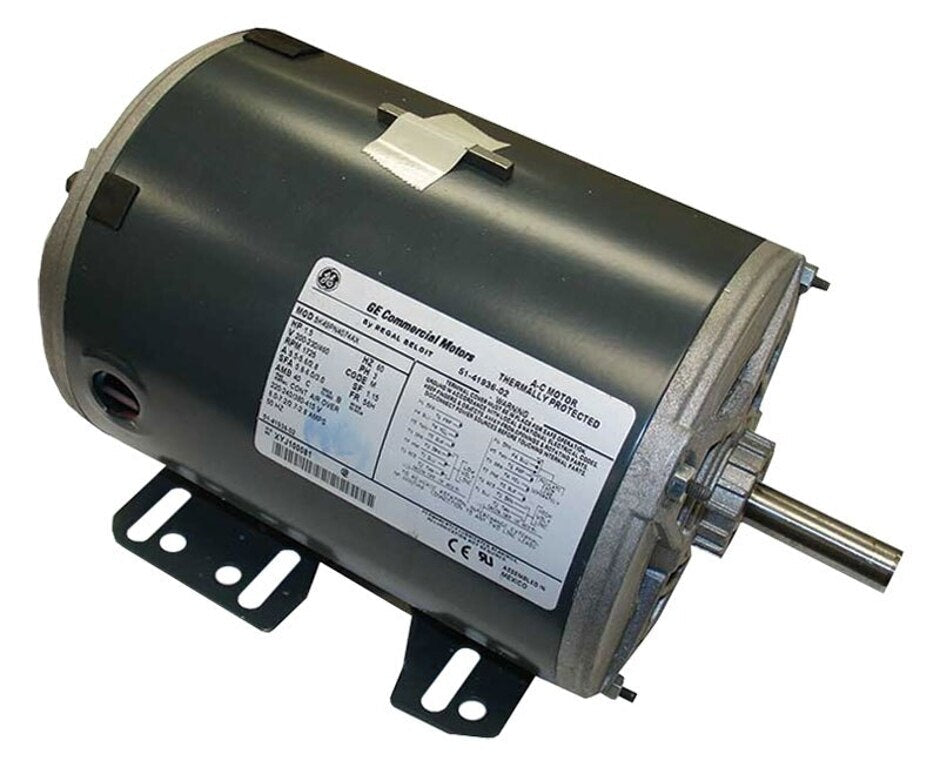

RUUD 51-41936-02 1.5 HP 3-Phase Blower Motor

Product Description

The RUUD 51-41936-02 is a blower motor with a power rating of 1.5 horsepower. It has a single speed and is suitable for belt-drive applications.

• OEM replacement for Rheem, Ruud, and WeatherKing.
• Designed for belt drive blower applications.
• Features ball bearings and reversible rotation.

Product Highlights

This motor is ideal for various HVAC systems where a reliable blower motor is needed. It operates at 1725 RPM and offers reversible rotation for versatile application.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-41936-02

Technical Specifications

• Motor Application: Belt Drive Blower
• Horse Power: 1.5
• Number of Speeds: 1
• High Speed (RPM): 1725
• Input Voltage: 208-230/460V
• Frequency: 60Hz
• Phase: Three
• Rotation Direction: Reversible
• FLA at 208V (A): 5.8
• FLA at 230V (A): 4.6
• FLA at 460V (A): 2.8
• LRA at 460V (A): 14.4
• Shaft Diameter: 5/8 inches
• Motor Body Diameter: 6.5 inches
• Keyed/Flat Shaft Length: 3/16 x 3/16 x 1.625 inches
• Overall Shaft Length: 1.875 inches
• Motor Body Length: 9.5 inches
• Overall Motor Length: 11.375 inches
• Mounting Type: Platform
• Frame Size: 56H
• Bearing Type: Ball
