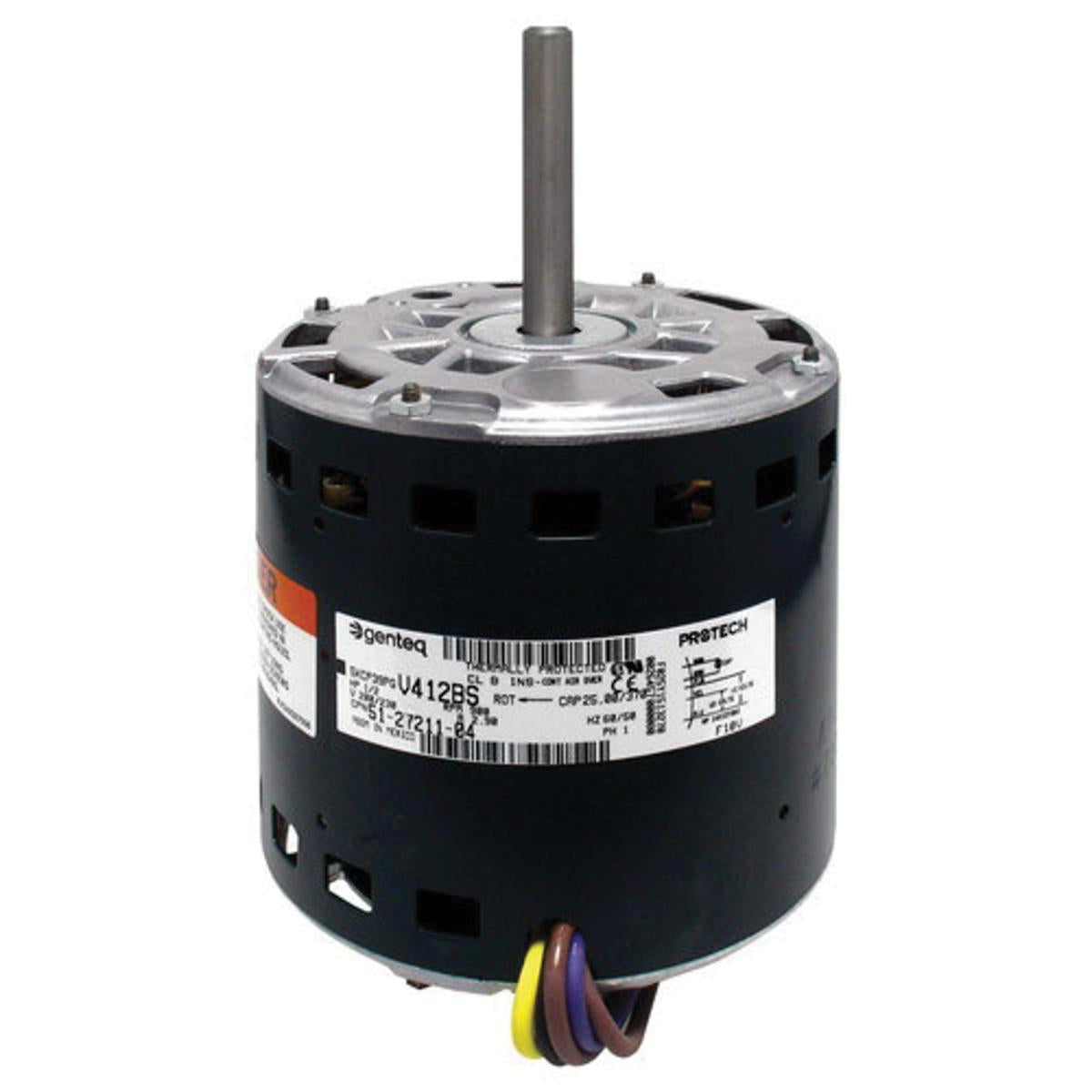

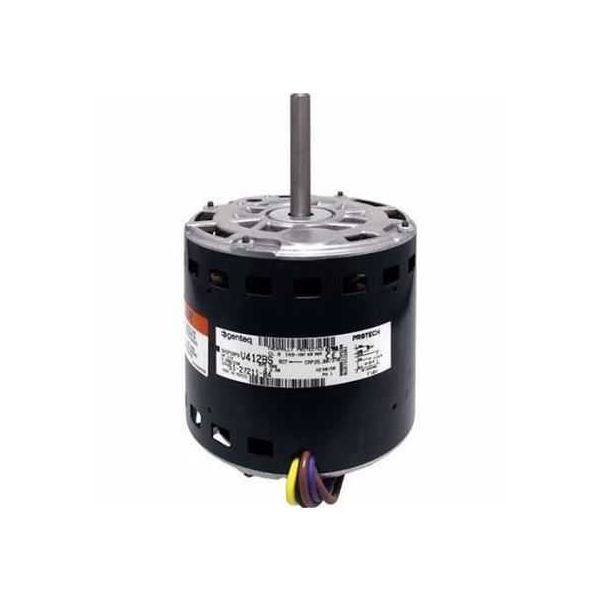

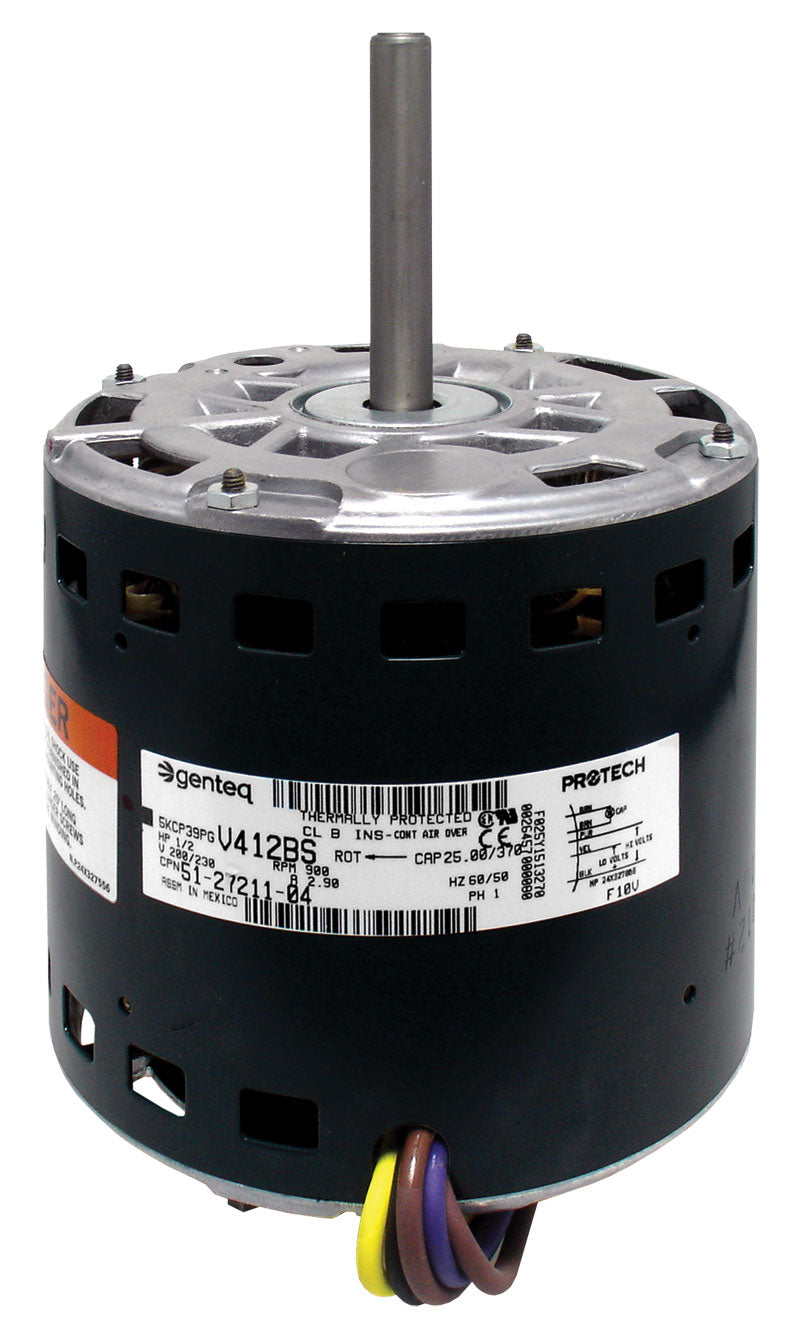

RUUD 51-27211-04 Blower Motor 1/2 HP 208 to 230 VAC

Product Description

The RUUD 51-27211-04 is a blower motor suitable for HVAC systems. It operates with a voltage of two hundred eight to two hundred thirty VAC. This model provides a power output of one-half horsepower while running at eight hundred twenty-five RPM. It is built with a single-phase design, which is effective for applications requiring steady airflow.

• Operates on 208 to 230 VAC
• Delivers 1/2 horsepower at 825 RPM
• Designed for HVAC systems

Product Highlights

Ideal for delivering consistent airflow in heating, ventilation, and air conditioning systems. Sleeve bearings ensure that it operates quietly.

Product Information

Standard Information

• MPN: 51-27211-04
• Brand: RUUD

Technical Specifications

• Voltage Rating: 208 to 230 VAC
• HP Rating: 1/2 hp
• Speed Rating: 825 rpm
• Phase: 1 ph
• Frequency Rating: 50 Hz, 60 Hz
• Bearing Type: Sleeve
• Mounting Type: Shell-Screw, Shell Band
• Number of Speeds: 1
• Rotation Type: Counter-Clockwise
• Shaft Size: 1/2 in
• Type: Blower Motor
• Frame Size: 48
• Motor Body Diameter: 5-5/8
• Motor Body Length: 5-1/2
• Weight: 17.54 lbs
• Run Capacitor: 25/370 (μF/V)
