RUUD 51-27211-03 Motor 1/3 HP 208-230V 51-27211-03

Product Description

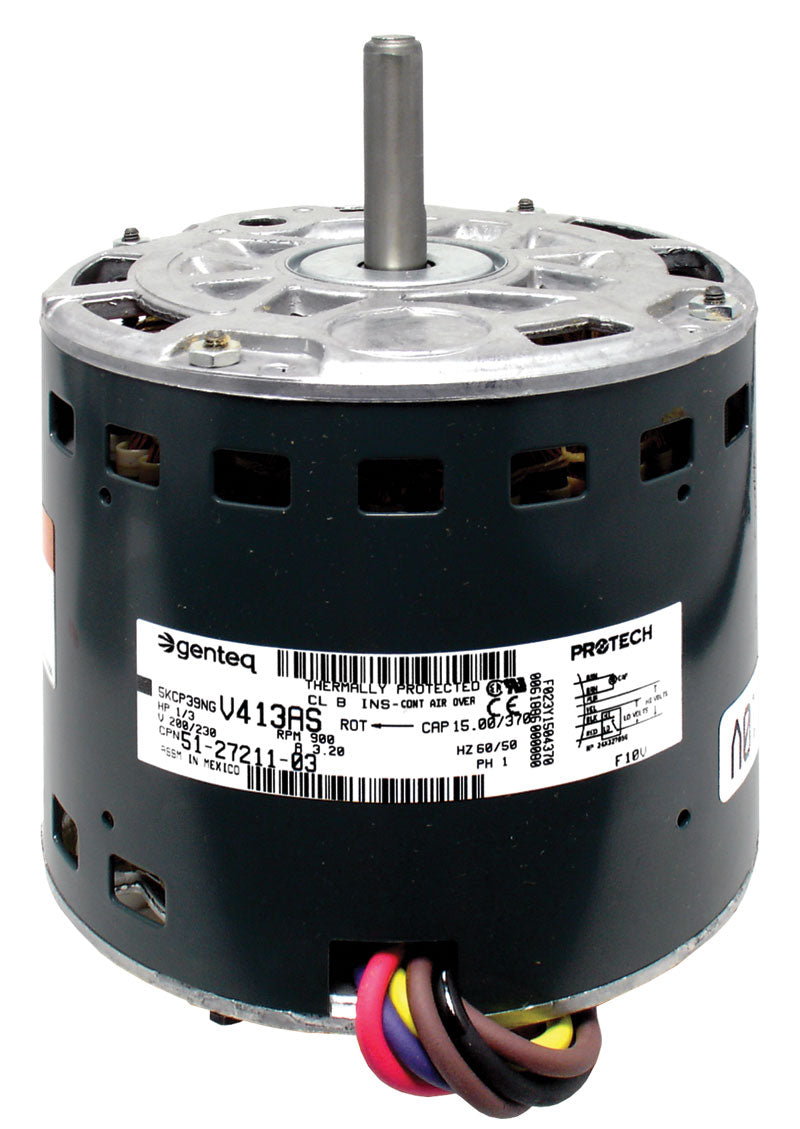

The RUUD 51-27211-03 is a blower motor offering a power rating of one-third horsepower, suitable for various heating and cooling applications. Designed for operation on 208-230 VAC, this motor provides two-speed functionality with a maximum speed of eight hundred twenty-five RPM. Its rotation direction is counterclockwise (CCW), which is ideal for several models including Rheem and Weatherking.

• Power: 1/3 HP
• Voltage: 208-230V
• Speeds: Two, with high speed of 825 RPM

Product Highlights

This motor is designed for blower applications and supports shell-band or shell-screw mounting.

Product Information

Standard Information

• MPN: 51-27211-03
• Brand: RUUD

Technical Specifications

• Motor Application: Blower PSC
• Horse Power: 1/3
• Number of Speeds: 2
• High Speed (RPM): 825
• Input Voltage: 208-230 V
• Frequency: 50 | 60 Hz
• Number of Phases: 1
• Rotation Direction: CCW
• Run Capacitor: 15/370 uF/V
• FLA at 230V: 3.2 A
• LRA at 230V: 3.9 A
• Shaft Diameter: 1/2 in.
• Motor Body Diameter: 5-5/8 in.
• Keyed/Flat Shaft Length: 1-1/2 in.
• Overall Shaft Length: 2-1/16 in.
• Motor Body Length: 5-1/4 in.
• Overall Motor Length: 7-5/16 in.
• Mounting Type: Shell-band/Shell-screw
• Frame Size: 48
• Bearing Type: Sleeve
• Drive Type: Direct Drive
