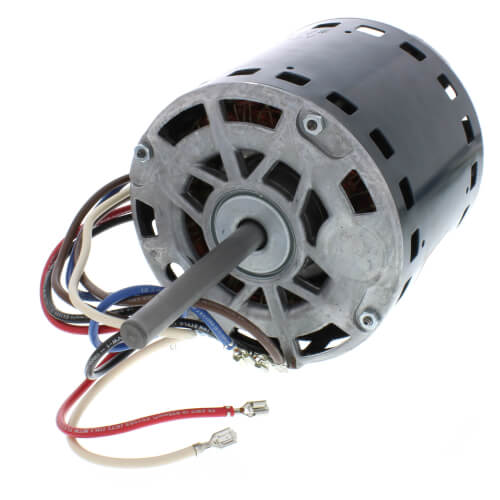

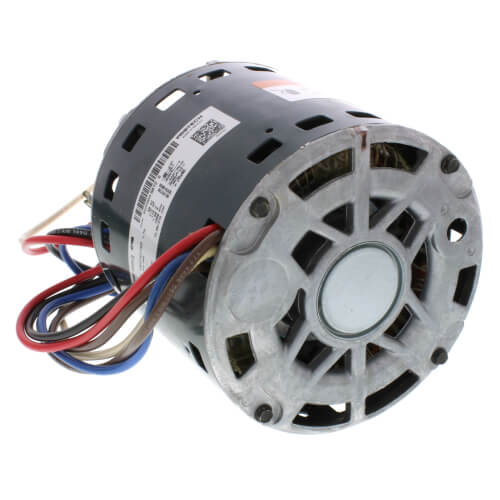

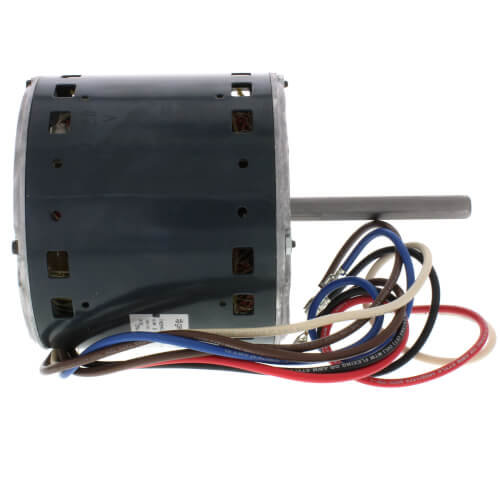

RUUD 51-24272-01 1/2 HP 1075 RPM 3-Speed 48 Motor

Product Description

The RUUD 51-24272-01 is a one-half horsepower motor that operates at 1075 RPM, designed specifically for direct drive blower applications. This three-speed motor features a sleeve bearing for durability and a frame size of forty-eight. It has a half-inch diameter shaft and utilizes shell-band and shell-screw mounting methods. The motor operates on a voltage of one hundred twenty volts and requires a run capacitor rated at 15/370 microfarads per volt.

• Horsepower: 1/2 HP
• Three-speed operation at 1075 RPM
• Suitable for blower applications

Product Highlights

This motor is ideal for HVAC systems that require reliable airflow.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-24272-01

Technical Specifications

• Input Voltage: 120V
• Horse Power: 1/2
• Speeds: 3
• Phase: 1
• Frequency: 60 Hz
• Rotation: CCW
• RPM: 1075
• Run Capacitor (uF/V): 15/370
• FLA at 120V (A): 7.9
• LRA at 120V (A): 15.00
• Shaft Diameter: 1/2
• Motor Body Diameter: 5-5/8
• Keyed/Flat Shaft Length: 3
• Overall Shaft Length: 3-3/4
• Motor Body Length: 5-1/4
• Overall Motor Length: 9-1/16
• Mounting Type: Shell-band, Shell-screw
• Frame Size: 48
• Bearing Type: Sleeve
• Application: Blower
• Drive Type: Direct Drive
