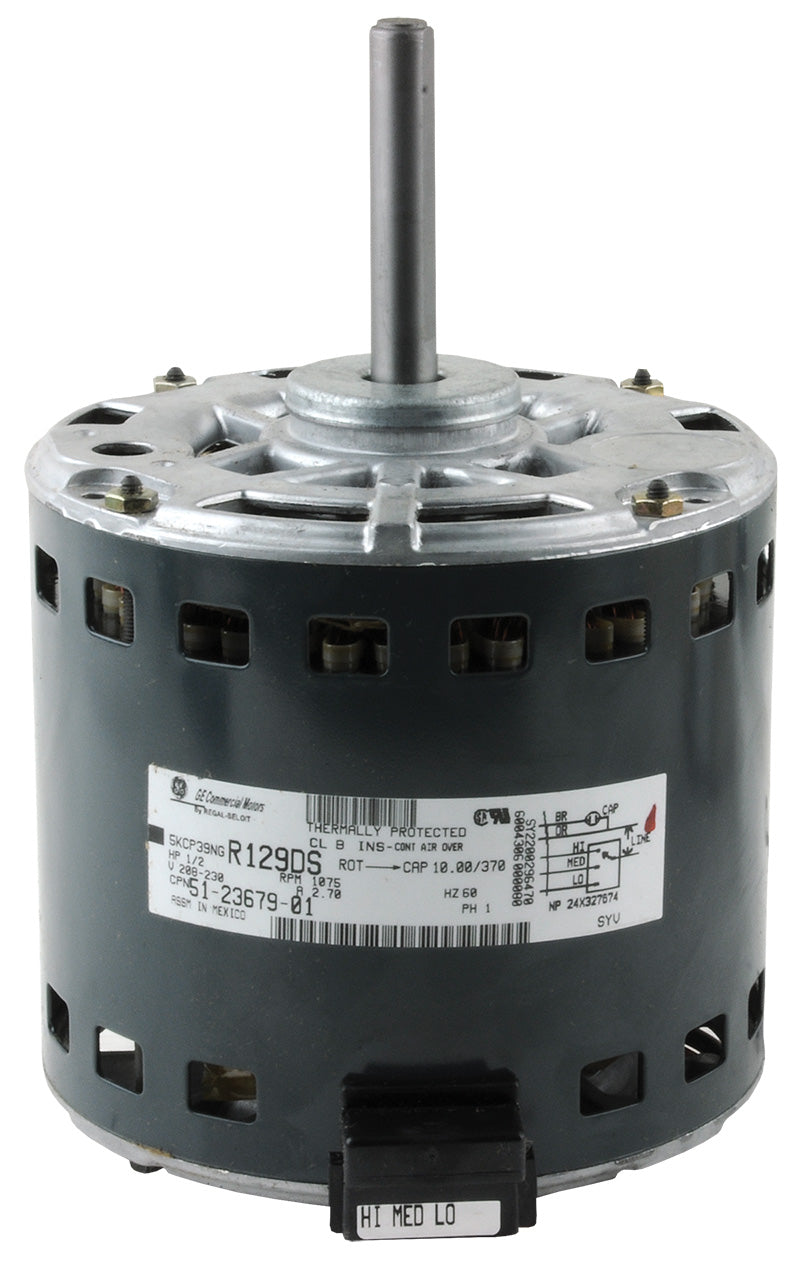

RUUD 51-23679-01 Blower Motor 1/2 HP 208-230V 3-Speed

Product Description

The RUUD 51-23679-01 is a blower motor suitable for HVAC systems. With a power rating of one half horsepower and designed for 208-230 volts, this motor provides efficient operation. It is capable of three-speed settings, allowing for flexible performance based on system needs. At its highest speed, it achieves a rotation speed of one thousand seventy-five RPM. This motor utilizes a shell-band mounting style and features a direct drive mechanism.

• Power: 1/2 HP
• Speed: 1075 RPM
• Voltage: 208-230V

Product Highlights

This motor is ideal for applications requiring reliable airflow, making it perfect for a variety of heating and cooling needs.

Product Information

Standard Information

• Motor Application: Blower PSC
• Rotation Direction: Clockwise (OSE)

Technical Specifications

• Horse Power: 1/2
• Number of Speeds: 3
• High Speed (RPM): 1075
• Input Voltage: 208-230V
• Frequency: 60 Hz
• Number of Phases: 1
• Run Capacitor (uF/V): 10/370
• Current Rating at 230V (A): 2.7
• Locked Rotor Amperage at 230V (A): 6.5
• Shaft Diameter: 1/2 inches
• Motor Body Diameter: 5-5/8 inches
• Keyed/Flat Shaft Length: 2-1/2 inches
• Overall Shaft Length: 2-1/2 inches
• Motor Body Length: 5-1/4 inches
• Overall Motor Length: 8-5/8 inches
• Mounting: Shell-band
• Frame Size: 48
• Bearing Type: Sleeve
• Drive Type: Direct Drive
