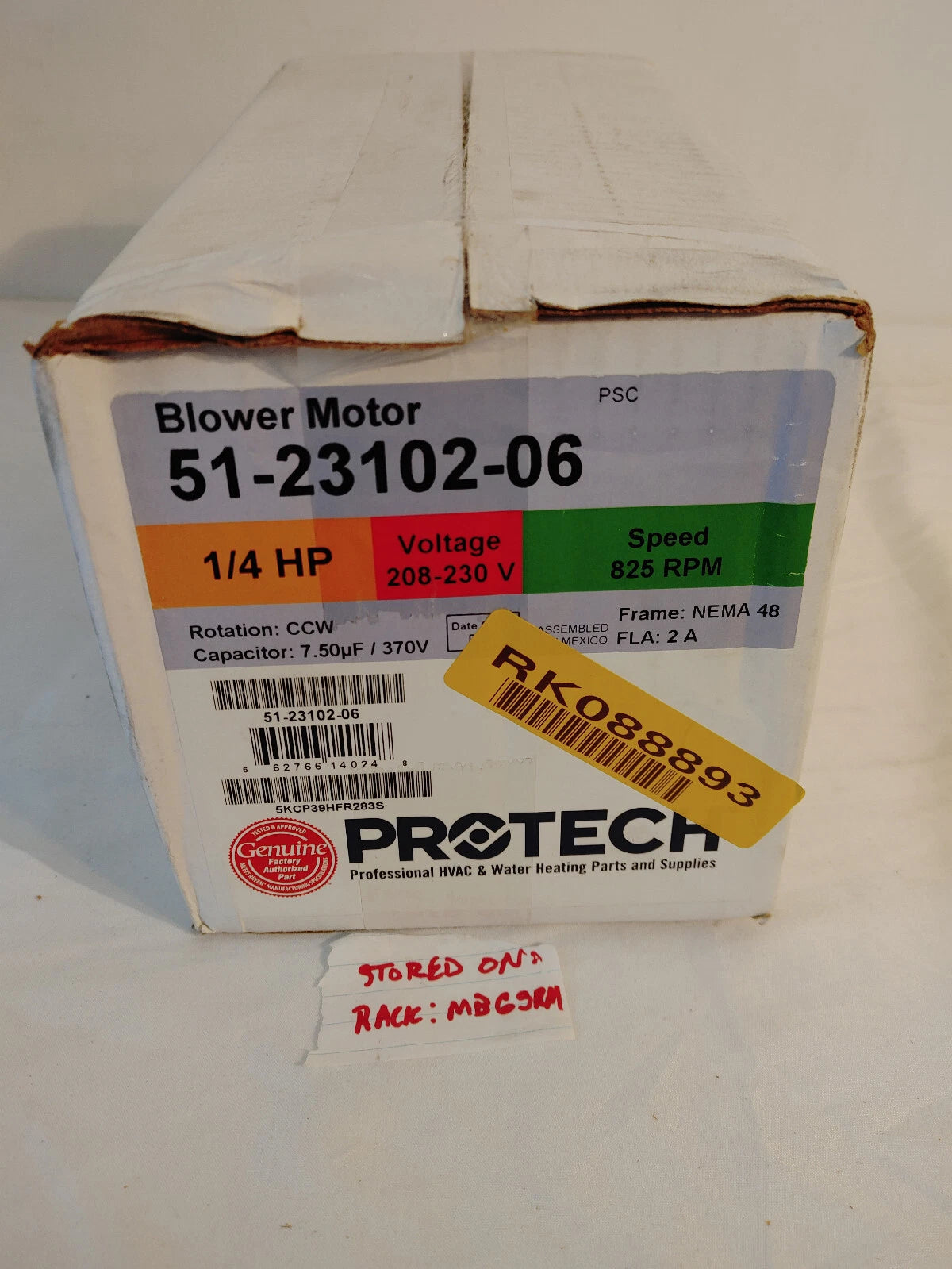

Ruud 51-23102-06 Blower Motor 1/4 HP Direct Drive Replacement

Product Description

The Ruud 51-23102-06 is a reliable blower motor suitable for direct drive applications. This motor operates on 208, 220, or 230 VAC single-phase power at a frequency of 50 Hz or 60 Hz. It features two speeds and is designed for counter-clockwise rotation. The installation is straightforward, utilizing a sleeve bearing and a shell-band with a shell screw mounting type. The frame size is 48, providing a solid fit for various systems.

• Operates on 208/220/230 VAC single-phase power
• Features two speeds and counter-clockwise rotation
• Designed for direct drive applications

Product Highlights

This blower motor is designed for efficient airflow in HVAC systems, enhancing overall performance and reliability.

Product Information

Standard Information

• Brand: Ruud
• MPN: 51-23102-06

Technical Specifications

• Motor Type: Blower Motor
• Input Voltage: 208/220/230 VAC
• Frequency Rating: 50 Hz, 60 Hz
• Phase: 1 ph
• Horsepower: 1/4 hp
• Output Current: 2 A
• Speed Rating: 825 rpm
• Number of Speeds: 2
• Rotation Type: Counter-Clockwise
• Drive Type: Direct
• Bearing Type: Sleeve
• Mounting Type: Shell-Band, Shell Screw
• Frame Size: 48
• Shaft Size: 1/2 in Diameter x 3-5/16 in Length
• Dimensions: 5-5/8 in Diameter x 7-3/4 in Length
• Approximate Height: 6.95 inches
• Approximate Length: 14.50 inches
• Approximate Weight: 11.85 pounds
• Approximate Width: 7.30 inches
