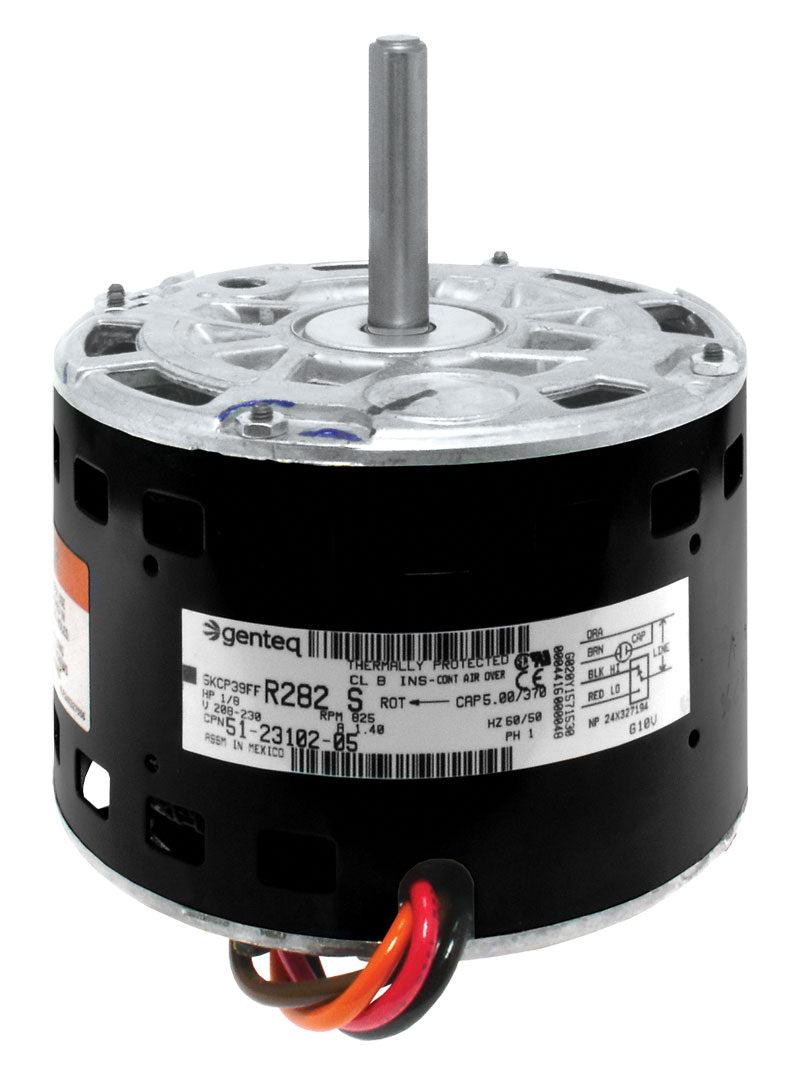

Ruud 51-23102-05 Blower Motor 1/8 HP 825 RPM 230V

Product Description

The Ruud 51-23102-05 blower motor is suitable for HVAC systems. It operates at 208-230 volts and has a horsepower rating of one-eighth. With a maximum speed of eight hundred twenty-five RPM, this motor is efficient for various applications. It features counter-clockwise rotation and includes a run capacitor. It is ideal for shell-band or shell-screw mounting configurations.

• Motor Application: Blower PSC
• Rotation Direction: Counter-Clockwise
• Frame Size: 48

Product Highlights

The Ruud 51-23102-05 is designed for reliability and performance in HVAC systems, making it a key component for maintaining airflow.

Product Information

Standard Information

• Horse Power: 1/8
• Number of Speeds: 2

Technical Specifications

• High Speed (RPM): 825
• Input Voltage: 208-230/1/50-60
• Run Capacitor: 5/370 uF/V
• Full Load Amperage at 230V: 1.4 A
• Locked Rotor Amperage at 230V: 1.8 A
• Shaft Diameter: 1/2 inches
• Motor Body Diameter: 5-5/8 inches
• Shaft Length: 1-1/2 inches
• Overall Shaft Length: 2-9/16 inches
• Motor Body Length: 4-1/4 inches
• Overall Motor Length: 6-3/4 inches
• Mounting Type: Shell-band/Shell-screw
• Bearing Type: Sleeve
