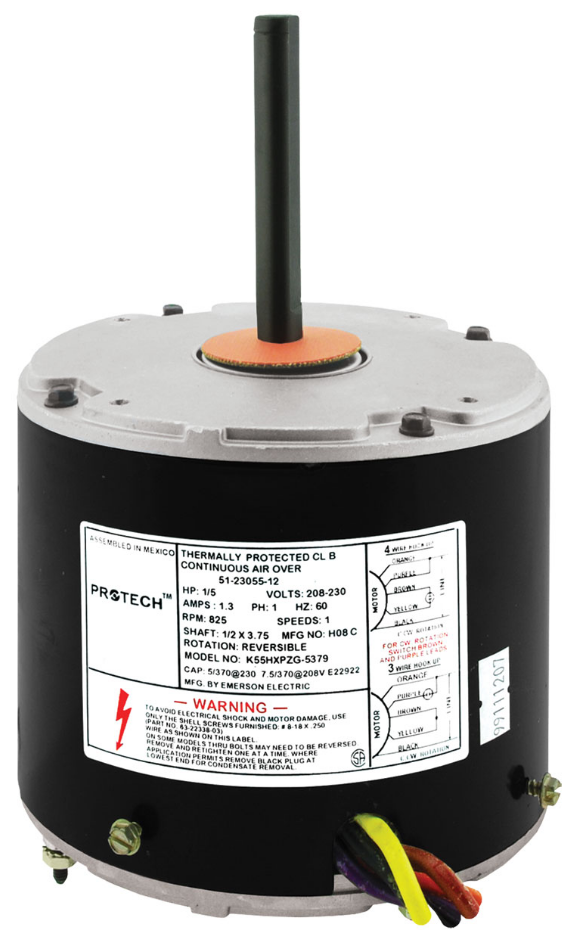

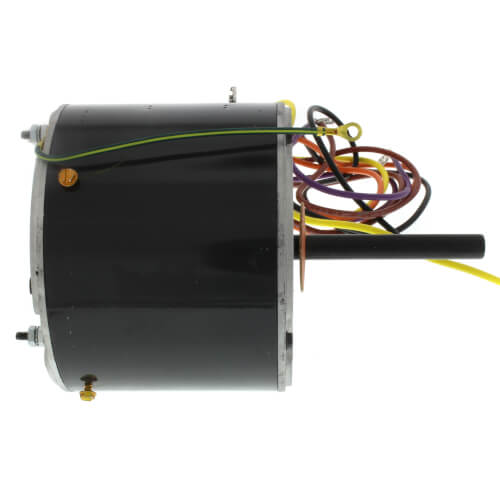

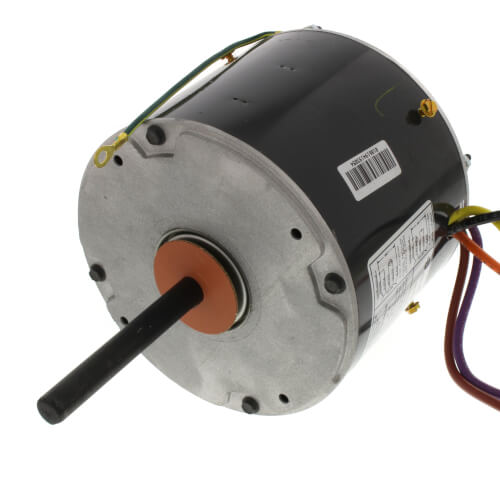

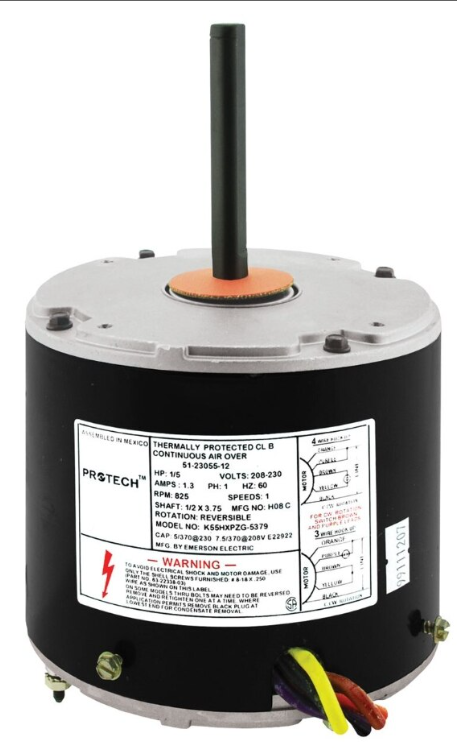

RUUD 51-23055-12 Condenser Motor 1/5 hp (Single-Phase) Replacement

Product Description

The RUUD 51-23055-12 is a single-phase, single-speed motor made for condenser applications. It serves as an OEM replacement for Rheem, Protech, and WeatherKing units. This motor operates on 208-230V power and supports reversible rotation for ease of installation.

• OEM replacement for various brands.
• Operates at eight hundred twenty-five RPM.
• Direct drive configuration.

Product Highlights

The RUUD 51-23055-12 is essential for heating and cooling systems, providing reliability and efficiency in performance.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-23055-12

Technical Specifications

• Motor Type: Condenser Motor
• Horsepower: 1/5 hp
• RPM: 825
• Voltage: 208/230V
• Phase: Single
• Frequency: 60Hz
• Amperage: 1.3A
• Capacitor: 5mfd/370V
• Bearing Type: Sleeve
• Rotation: Reversible
• Motor Body Diameter: 5-5/8 inches
• Shaft Diameter: 1/2 inches
• Keyed/Flat Shaft Length: 3-1/4 inches
• Overall Shaft Length: 3-3/4 inches
• Motor Body Length: 4-3/8 inches
• Overall Motor Length: 8-1/8 inches
• Mounting Type: Shell-screw
• Frame Size: 48
• Application: Condenser
• Drive Type: Direct Drive
• Weight: 11.64 pounds
• Height: 7.05 inches
• Length: 13.00 inches
• Width: 7.20 inches
