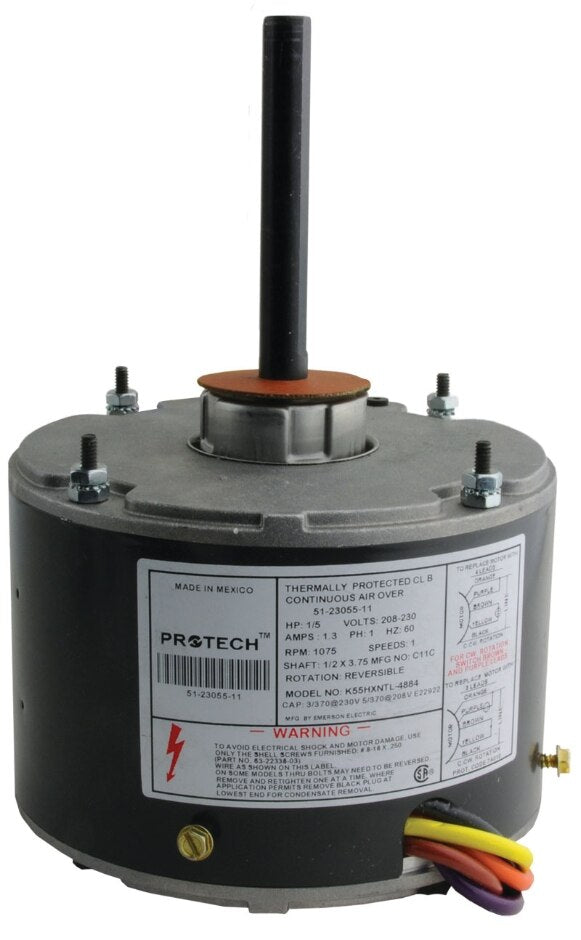

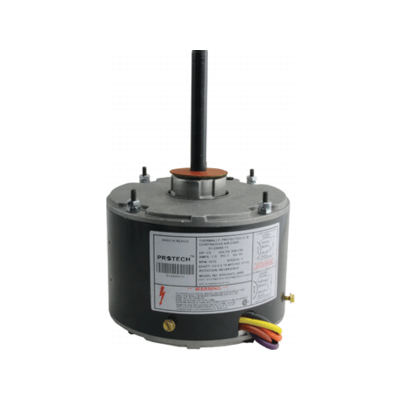

RUUD 51-23055-11 Condenser Fan Motor

Product Description

The RUUD 51-23055-11 is a condenser fan motor suitable for Rheem, Ruud, and WeatherKing units. This motor is a direct drive design for efficient operation. It works at a single speed and features reversible rotation, making it adaptable for various condenser applications.

• Horsepower: 1/5 HP
• Speed: 1075 RPM
• Voltage: 208-230 VAC

Product Highlights

Designed for versatility, the RUUD 51-23055-11 operates effectively in multiple conditions and is ideal for OEM and aftermarket uses.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-23055-11

Technical Specifications

• Horsepower: 1/5 hp
• Input Voltage: 208-230 VAC
• Frequency: 60 Hz
• Phase: Single
• Speed: Single
• RPM: 1075
• Rotation: Reversible
• Shaft Diameter: 0.5 inches
• Shaft Length: 4.25 inches
• Frame Size: 48
• Bearing Type: Sleeve
• Mounting Type: Thru-bolt, Shell-band, Shell-screw
• Motor Body Diameter: 5.625 inches
• Motor Body Length: 3.5625 inches
• Overall Motor Length: 7.8125 inches
• Application: Condenser
• Full Load Amps: 1.3 A
• Run Capacitor: 3/370 (230V), 5/370 (208V)
• Shaft Length (Keyed/Flat): 3.25 inches
• Enclosure: Totally Enclosed Air Over TEAO
