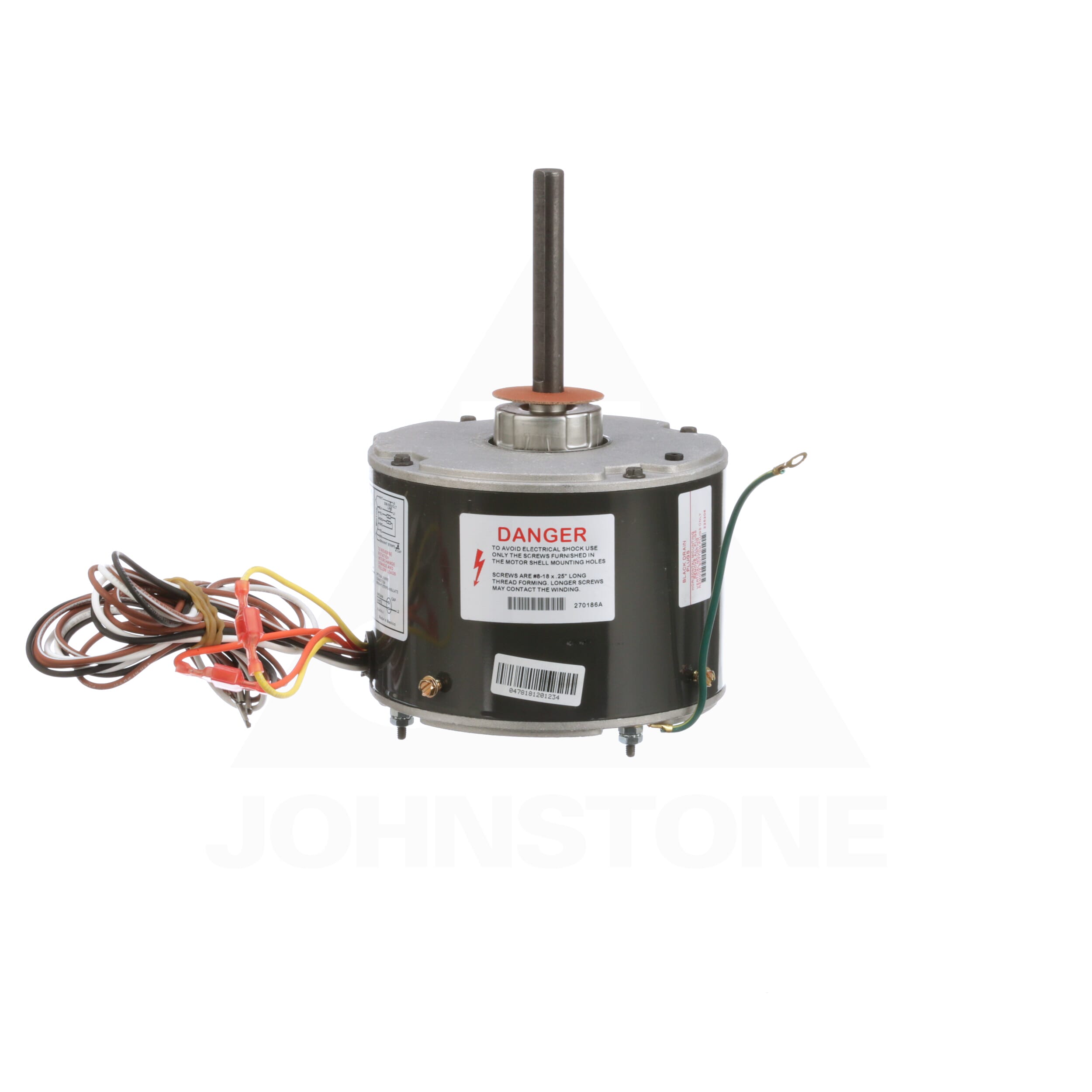

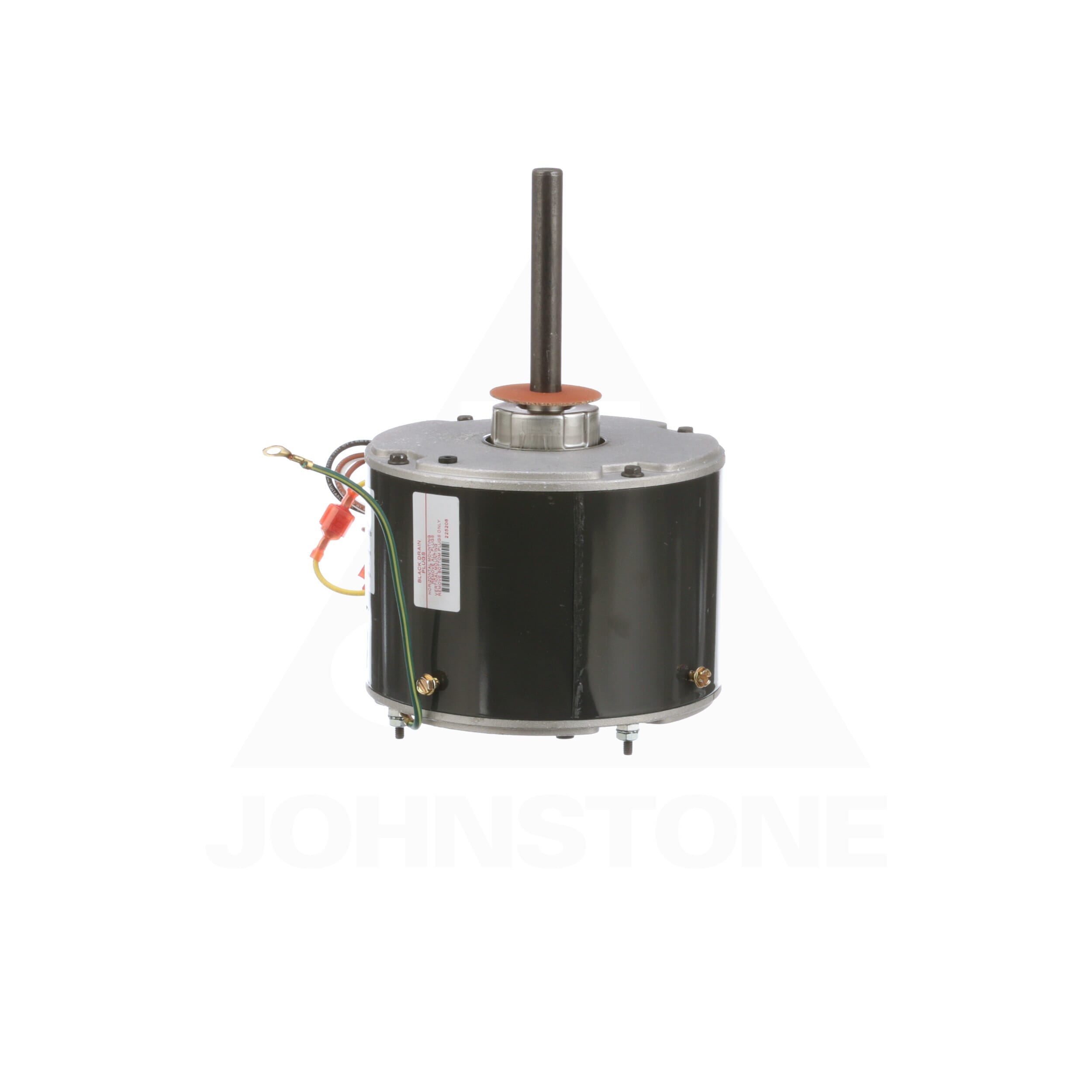

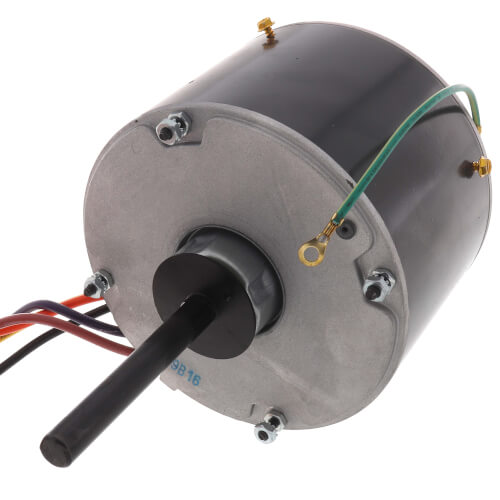

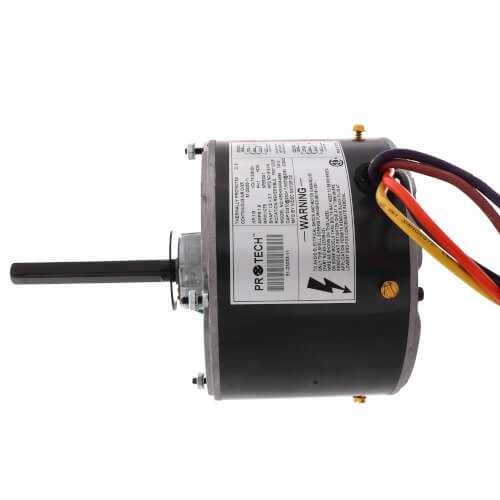

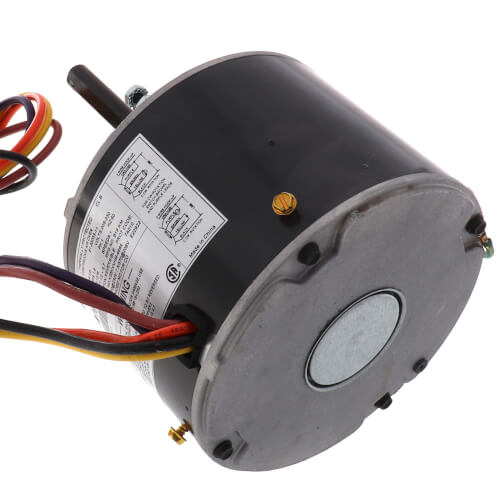

RUUD 51-23053-11 RUUD Condenser Fan Motor 1/3 HP

Product Description

The RUUD 51-23053-11 is a condenser fan motor intended for OEM replacement in Rheem, Ruud, and WeatherKing models. This motor, with a power rating of 1/3 HP, operates at a speed of 1075 RPM and functions effectively at a voltage of 208-230 VAC.

• Single speed operation at 1075 RPM
• Reversible motor rotation
• Equipped with automatic thermal protection

Product Highlights

This motor is designed for direct drive applications and features drain holes on both ends for improved performance. It also includes various mounting options for easy installation.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-23053-11

Technical Specifications

• Horsepower: 1/3 HP
• Input Voltage: 208-230 VAC
• Frequency: 60 Hz
• Phase: 1
• RPM: 1075
• Number of Speeds: 1
• Rotation: Reversible
• Shaft Diameter: 1/2 inches
• Shaft Length: 4-1/4 inches
• Frame Size: 48
• NEMA Frame: 48Y
• Motor Type: PSC (Permanent Split Capacitor)
• Enclosure: TEAO
• Bearing Type: Sleeve
• Thermal Protection: Auto
• Full Load Amps: 1.75
• Mounting Type: Belly band/4 side shell holes
• Operating Temperature: 40 Celsius
• Efficiency: 62%
• Agency Certification: UR/CSA
