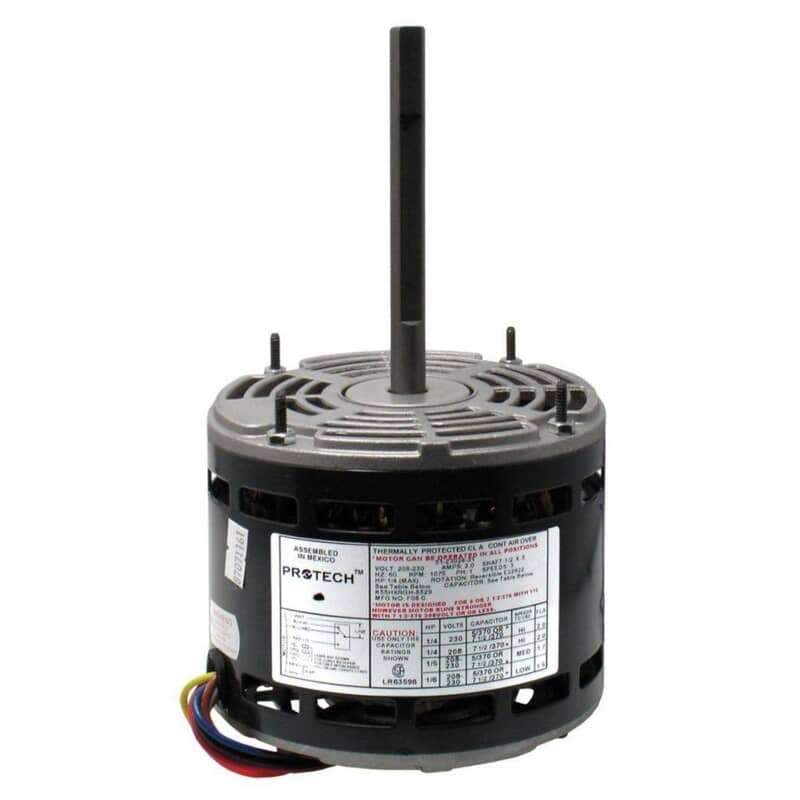

Ruud 51-23024-31 Blower Motor 1/4 hp 1075 rpm 3 spd

Product Description

The RUUD 51-23024-31 Blower Motor is a 1/4 HP, 1075 RPM, 3-speed motor operating on 208/230V, 1 phase, and 60 Hz. This direct drive reversible motor is approved as an OEM replacement for many Rheem, Ruud, and WeatherKing models. It features a 5/370 uF/V run capacitor, a 1/2-inch shaft diameter, and an Open Air Over enclosure, ensuring efficient performance in various HVAC systems.

• Direct Drive Reversible Blower Motor
• 1/4 HP, 1075 RPM, 3 Speeds
• Approved as OEM replacement for Rheem, Ruud, and WeatherKing models

Product Highlights

This 1/4 HP blower motor offers reversible rotation and is suitable for a range of HVAC systems, featuring a Permanent Split Capacitor design.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 51-23024-31

Technical Specifications

• Horsepower: 1/4 HP
• Number of Speeds: 3
• RPM: 1075
• Input Voltage: 208/230V
• Phase: 1
• Frequency: 60 Hz
• Rotation: Reversible
• Run Capacitor: 5/370 uF/V
• Full Load Amps (FLA): 2.00 A
• Locked Rotor Amps (LRA): 3.51 A
• Shaft Diameter: 1/2 inch
• Motor Body Diameter: 5-5/8 inch
• Shaft Length: 4 inch
• Type: Blower Motor
• NEMA Frame Size: 48
• Enclosure Type: Open Air Over
• Bearing Type: Sleeve
• Mounting Type: Shell-Band/Thru-Bolt
• Motor Technology: Permanent Split Capacitor
