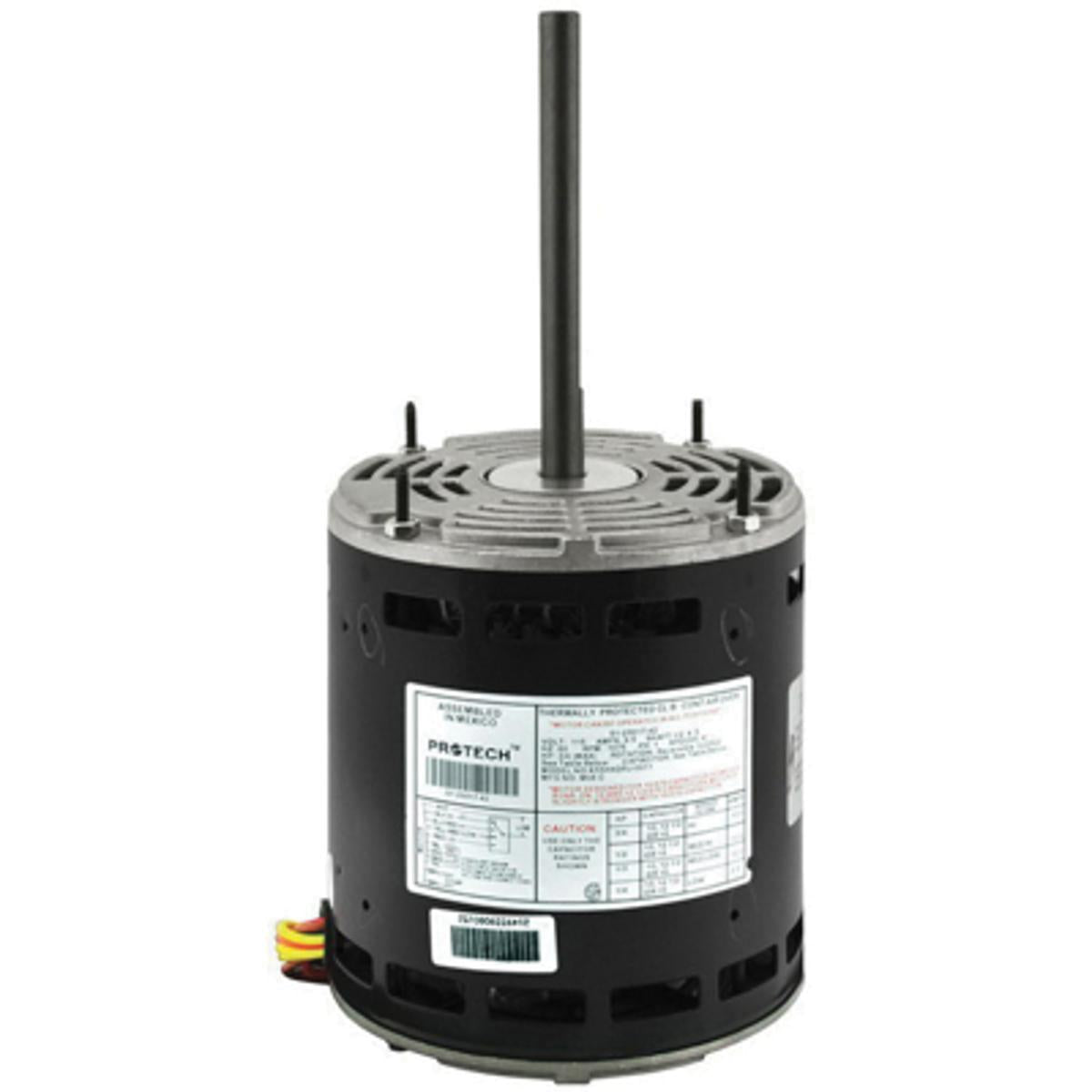

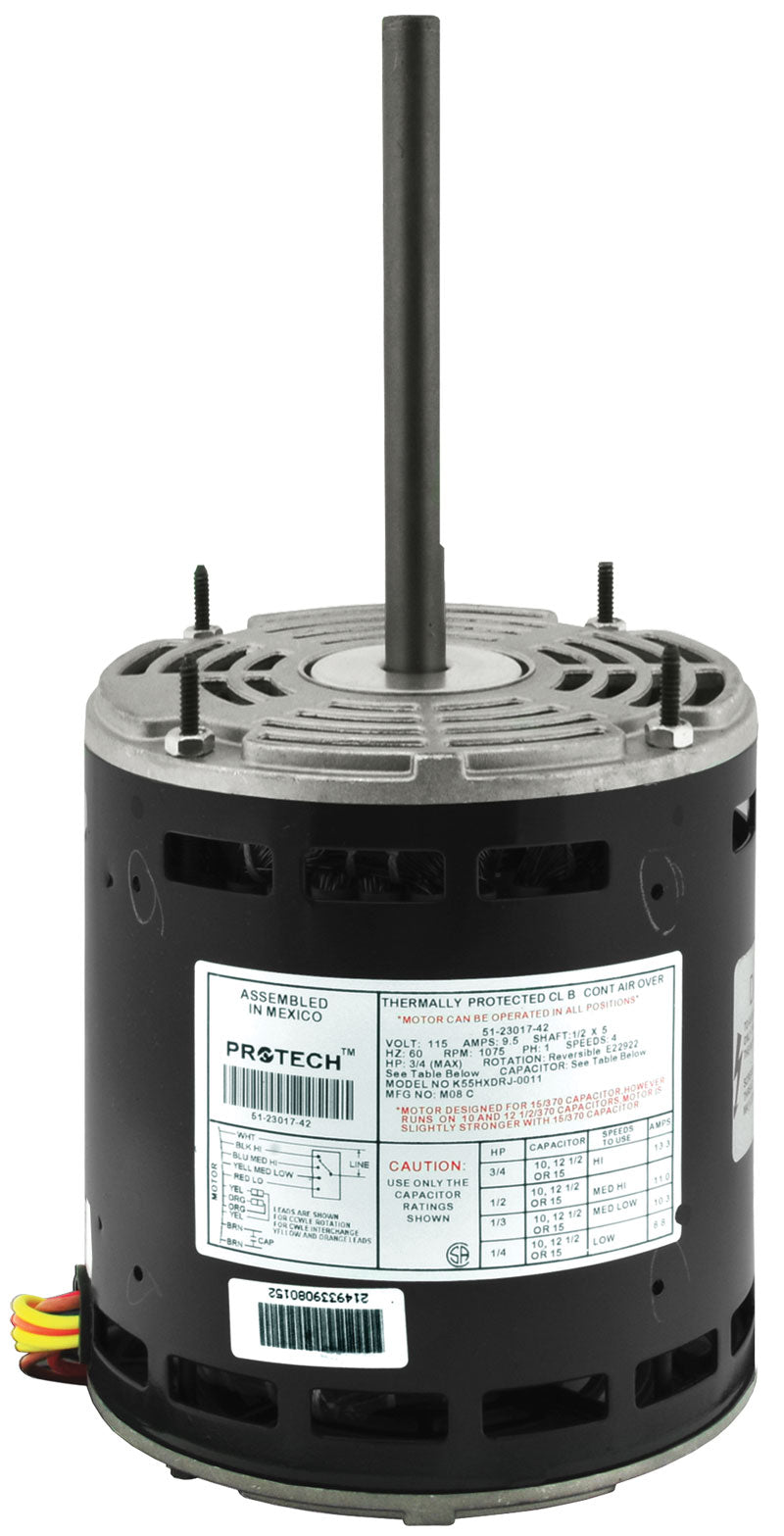

RUUD 51-23017-42 RUUD Blower Motor 120V 1/4 to 3/4 hp Replacement MPN

Product Description

The RUUD 51-23017-42 is a blower motor crafted for HVAC systems, operating at 120V. It has a full load amperage of 9.5A, making it suitable for various heating and cooling applications. This motor's horsepower ranges from one-quarter to three-quarters, with a speed of 1075 RPM. Designed as a single-phase motor, it comes in a frame size of 48.

• Voltage Rating: 120V
• Speed: 1075 RPM with four speed options
• Rotation: Reversible

Product Highlights

This product allows for direct drive connections and offers reversible rotation. It utilizes ball bearings and shell band mounting for reliability.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-23017-42

Technical Specifications

• Bearing Type: Ball
• Dimensions: 5-5/8 inches Diameter x 5-13/16 inches Length
• Drive Type: Direct
• Mounting Type: Shell Band
• Number of Speeds: 4
• Rotation Type: Reversible
• Shaft Size: 1/2 inch Diameter x 4 inches Length
• Input Voltage: 120 VAC
• Amperage Rating: 9.5 A Full Load
• HP Rating: 1/4 to 3/4 hp
• Speed Rating: 1075 RPM
• Phase: 1 ph
• Frame Size: 48
• Cycle/Hertz: 60 Hz
